Запчасти Case IH SO-SERIES (036) - FAN AND WATER PUMP, S, SC, SO (02) - ENGINE

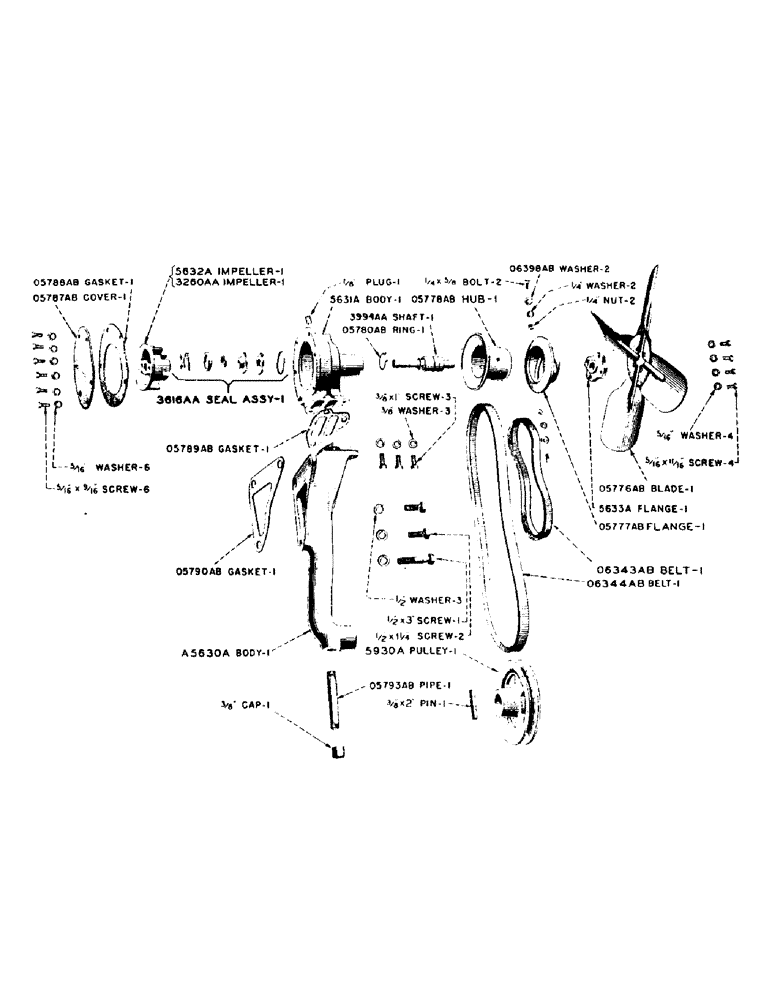

Схема запчастей Case IH SO-SERIES - (036) - FAN AND WATER PUMP, S, SC, SO (02) - ENGINE

Артикул

Название

Примечание

Количество

A5630A

BODY - water pump, lower

1шт.

SCREW - 3/8" x 1" hex. hd. cap, N.C. thread

3шт.

SCREW - 1/2" x 1-1/4" hex. hd. cap, N.C. thread

2шт.

SCREW - 1/2" x 3" hex. hd. cap, N.C. thread

1шт.

WASHER - 3/8" std. lock

3шт.

WASHER - 1/2" std. lock

3шт.

5631A

BODY - water pump, upper

1шт.

PLUG - 1/8" slotted head pipe

1шт.

5632A

IMPELLER

- (Use 3260AA)

1шт.

5633A

FLANGE - fan hub

1шт.

5930A

PULLEY - fan drive (6-1/2" dia.)

1шт.

PIN - 3/8" x 2" type 1 full length taper groove

1шт.

05776AB

BLADE - fan, assembly (Regular - 4 blades) (See O6479AB)

1шт.

SCREW - 5/16" x 11/16" hex. hd. cap, N.C. thread

4шт.

WASHER - 5/16" std. lock

4шт.

O5777AB

FLANGE - fan pulley hub, adjustable half

1шт.

O5778AB

HUB - fan pulley, stationary half

1шт.

BOLT - 1/4" x 5/8" carriage, with N.C. hex. nut

2шт.

WASHER - 1/4" standard lock

2шт.

O5780AB

X

SNAP RING - water pump bearing

1шт.

O5785AB

WASHER - carbon seal, for 3616AA

1шт.

O5787AB

COVER - water pump

1шт.

SCREW - 5/16" x 9/16" hex. head cap, N.C. thread

6шт.

WASHER - 5/16" standard lock

6шт.

O5788AB

GASKET

- water pump cover

1шт.

O5789AB

GASKET

- water pump body, upper

1шт.

O5790AB

GASKET

- water pump body, lower

1шт.

O5793AB

PIPE - radiator drain

1шт.

CAP - 3/8" hex. pipe

1шт.

O6343AB

X

BELT - fan (Engines not equipped with generator)

1шт.

O6344AB

BELT

Fan and generator

1шт.

O6398AB

WASHER - fan hub lock screw

2шт.

O6479AB

BLADE - fan, assembly (6 blades) (Special, for extreme heat conditions)

1шт.

2540AA

PUMP, WATER

PUMP - water, with fan hub assembly, less fan blades

1шт.

3260AA

IMPELLER

- water pump, with 3616AA seal

1шт.

3326AA

PULLER - complete, for removing impeller

1шт.

3395AA

KIT

- water pump repair. (Consists of 1-3260AA, 1-3994AA, 1- O5780AB, 1-O5788AB and 1-O5789AB)

1шт.

3616AA

KNOCKER

SEAL - water pump impeller, assembly

1шт.

3994AA

SHAFT

- water pump, with bearing assembly

1шт.

Выбрано товаров: 39
