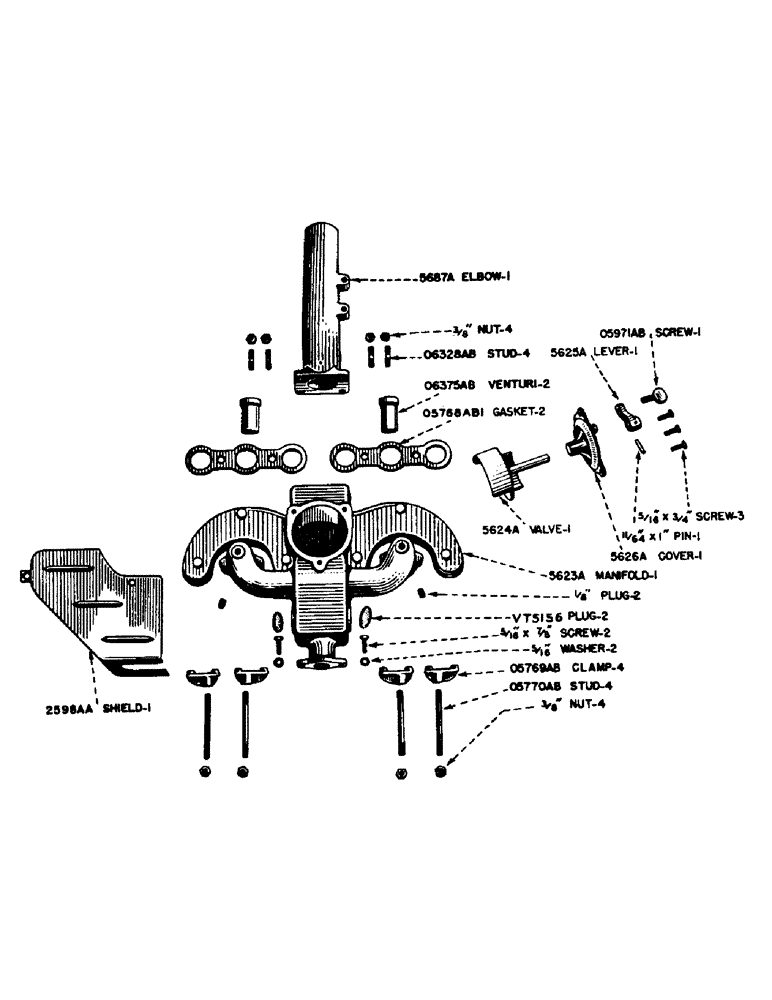

Запчасти Case IH SO-SERIES (017) - LOW COST FUEL MANIFOLD, S, SC, SO (02) - ENGINE

5623A

MANIFOLD - inlet and exhaust

1шт.

PLUG - 1/8" sq. head pipe

2шт.

SCREW - 5/16" x 7/8" hex. hd. cap, N.C. thread

2шт.

WASHER - 5/16" std. lock

2шт.

5624A

VALVE - heat regulator

1шт.

5625A

LEVER - heat regulator valve

1шт.

PIN - 11/64" x 1" type 1 groove

1шт.

5626A

COVER - heat regulator valve

1шт.

SCREW - 5/16" x 3/4" hex. hd. cap, N.C. thread

3шт.

5685A

ELBOW - exhaust (SO)

1шт.

5687S

ELBOW - exhaust (S, SC)

1шт.

O5768AB1

GASKET

- inlet and exhaust manifold

2шт.

O5769AB

CLAMP - manifold

4шт.

O5770AB

STUD - manifold clamp

4шт.

NUT - 3/8" hex., light, N.F. thread

4шт.

O5971AB

SCREW - heat regulator lever

1шт.

O6328AB

STUD - exhaust elbow

4шт.

NUT - 3/8" hex., light, N.F. thread

4шт.

O6375AB

VENTURI - inlet manifold

2шт.

VT5156

PLUG - 1-1/4" Welch, for 5623A manifold

2шт.

2598AA

SHIELD - manifold

1шт.
