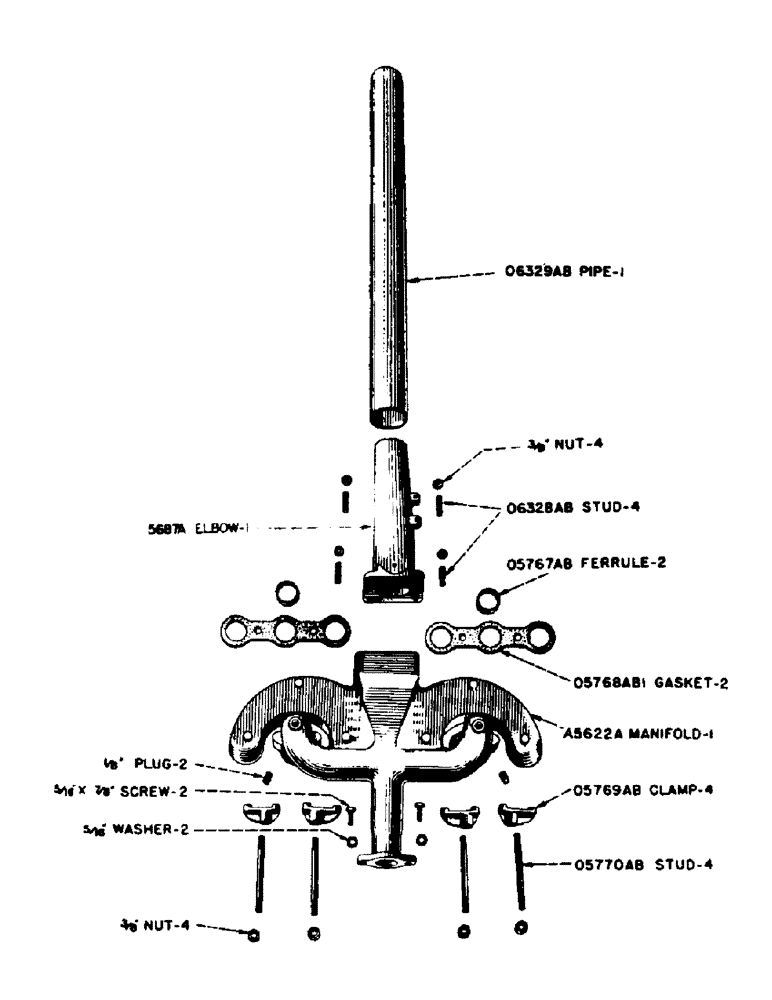

Запчасти Case IH SO-SERIES (016) - GASOLINE MANIFOLD AND EXHAUST PIPE, S, SC, SO (02) - ENGINE

A5622A

MANIFOLD - inlet and exhaust

1шт.

PLUG - 1/8" sq. hd. pipe

2шт.

SCREW - 5/16" x 7/8" hex. hd. cap, N.C. thread

2шт.

WASHER - 5/16" std. lock

2шт.

5685A

ELBOW - exhaust (SO)

1шт.

5687A

ELBOW - exhaust (S, SC)

1шт.

O5767AB

X

FERRULE - inlet port

2шт.

O5768AB1

GASKET

- inlet and exhaust manifold

2шт.

O5769AB

CLAMP - manifold

4шт.

O5770AB

STUD - manifold clamp

4шт.

NUT - 3/8" hex., light, N.F. thread

4шт.

O6328AB

STUD - exhaust elbow

4шт.

NUT - 3/8" hex., light, N.F. thread

4шт.

O6329AB

PIPE - exhaust (When muffler is not used) (S, SC)

1шт.
