Запчасти Case IH SO-SERIES (013) - OIL FILTER, S, SC, SO (02) - ENGINE

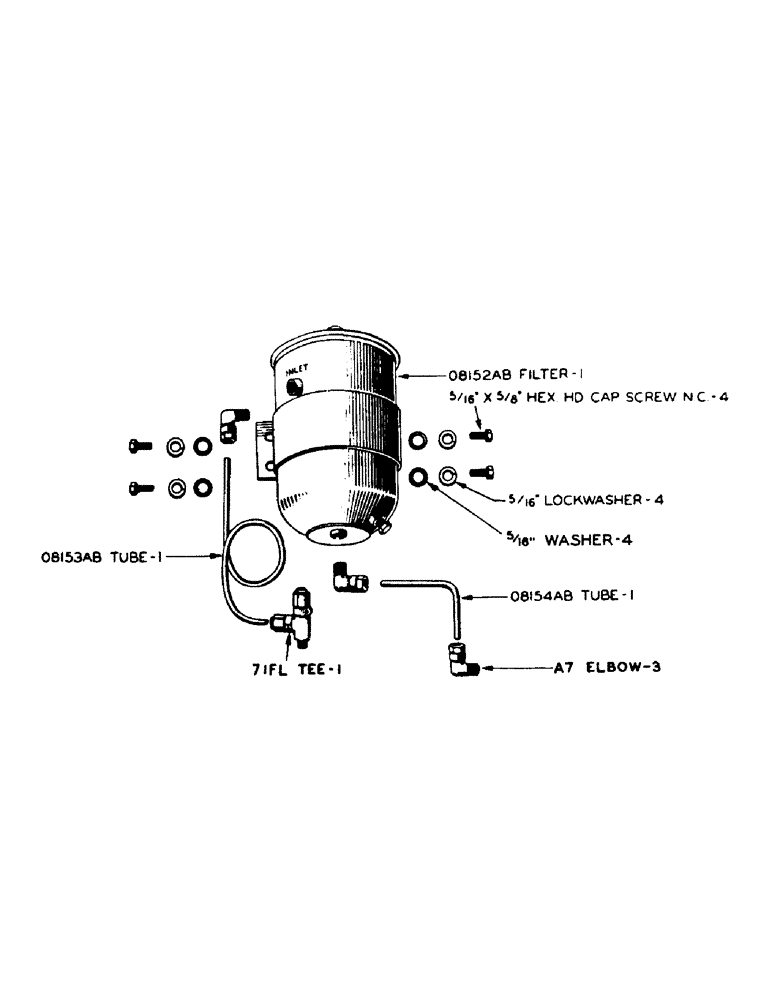

Схема запчастей Case IH SO-SERIES - (013) - OIL FILTER, S, SC, SO (02) - ENGINE

Артикул

Название

Примечание

Количество

O8152AB

X

FILTER - oil (Purolator type P-706)

1шт.

SCREW - 5/16" x 5/8" hex. hd. cap, N.C. thread

4шт.

WASHER - 5/16" std. lock

4шт.

WASHER - 5/16" plain

4шт.

O8153AB

TUBE - oil filter, Serial Range: inlet-tee

1шт.

ELBOW - Dole A-7 male, with compression screw 1/8" pipe thread x 3/16" tube size

1шт.

TEE - Imperial Flex no. 71FL, 3/16" tube size x 1/8" pipe thread

1шт.

SLEEVE - rubber, no. 60FL - 3/16", for no. 71FL tee

1шт.

NUT - no. 61FL - 3/16", for no. 71FL tee

1шт.

O8154AB

TUBE - oil filter outlet to cylinder block

1шт.

ELBOW - Dole A-7 male, with compression screw, 1/8" pipe thread x 3/16" tube size

2шт.

Выбрано товаров: 11
