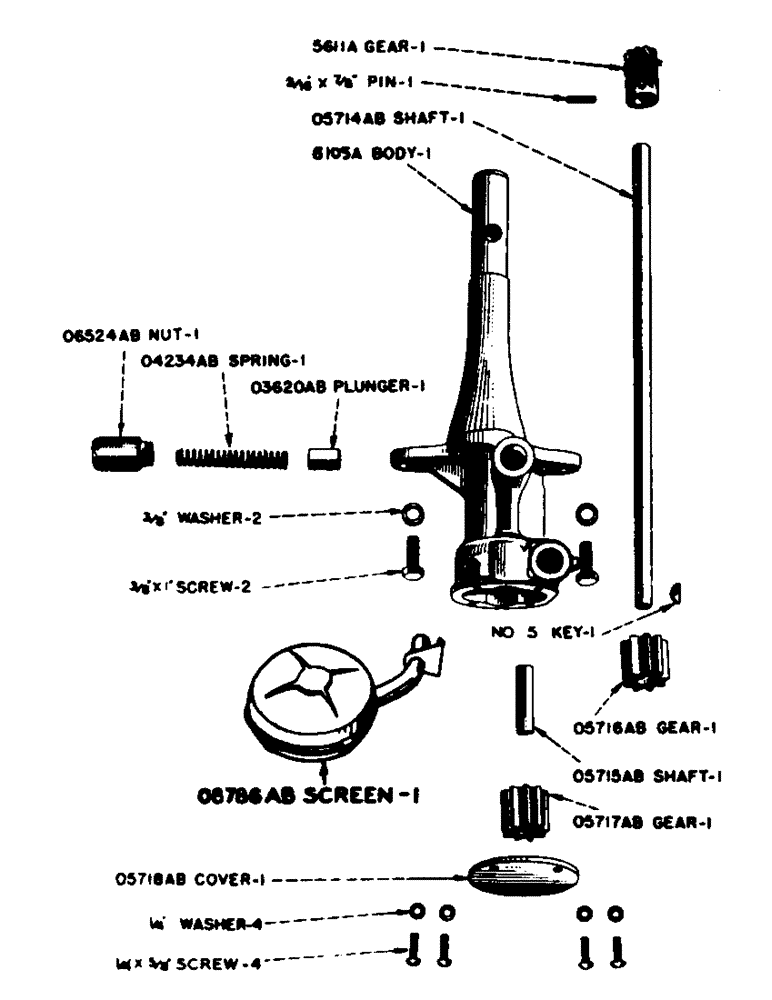

Запчасти Case IH SO-SERIES (012) - OIL PUMP, S, SC, SO (02) - ENGINE

5611A

GEAR - oil pump drive

1шт.

Part of oil assembly pump P/N 4247AA

1шт.

PIN - 3/16" x 7/8" type 3 groove

1шт.

6105A

BEACON

BODY - oil pump

1шт.

Part of oil assembly pump P/N 4247AA

1шт.

SCREW - 3/8" x 1" hex. hd. cap, N.C. thread

2шт.

WASHER, 3/8" std. lock

2шт.

O3620AB

PLUNGER - relief

1шт.

Part of oil assembly pump P/N 4247AA

1шт.

O4234AB

X

SPRING - relief plunger

1шт.

Part of oil assembly pump P/N 4247AA

1шт.

O5714AB

SHAFT - oil pump drive

1шт.

Part of oil assembly pump P/N 4247AA

1шт.

KEY - no. 5 Woodruff

1шт.

O5715AB

SHAFT - oil pump stub

1шт.

Part of oil assembly pump P/N 4247AA

1шт.

O5716AB

GEAR - oil pump, with keyway

1шт.

Part of oil assembly pump P/N 4247AA

1шт.

O5717AB

GEAR - oil pump, without keyway

1шт.

Part of oil assembly pump P/N 4247AA

1шт.

O5718AB

COVER - oil pump

1шт.

Part of oil assembly pump P/N 4247AA

1шт.

SCREW - 1/4" x 5/8" round head machine, N.C. thread

4шт.

WASHER - 1/4" std. lock

4шт.

O6524AB

X

NUT - oil pump relief

1шт.

Part of oil assembly pump P/N 4247AA

1шт.

O8786AB

X

SCREEN - oil pump, Float-O-type

1шт.

PIN, 3/32" x 1-1/2" cotter

1шт.

4247AA

PUMP

- oil, assembly, Consists of items marked

1шт.
