Запчасти Case IH SO-SERIES (010) - VALVES, PUSH RODS AND CAMSHAFT, S, SC, SO (02) - ENGINE

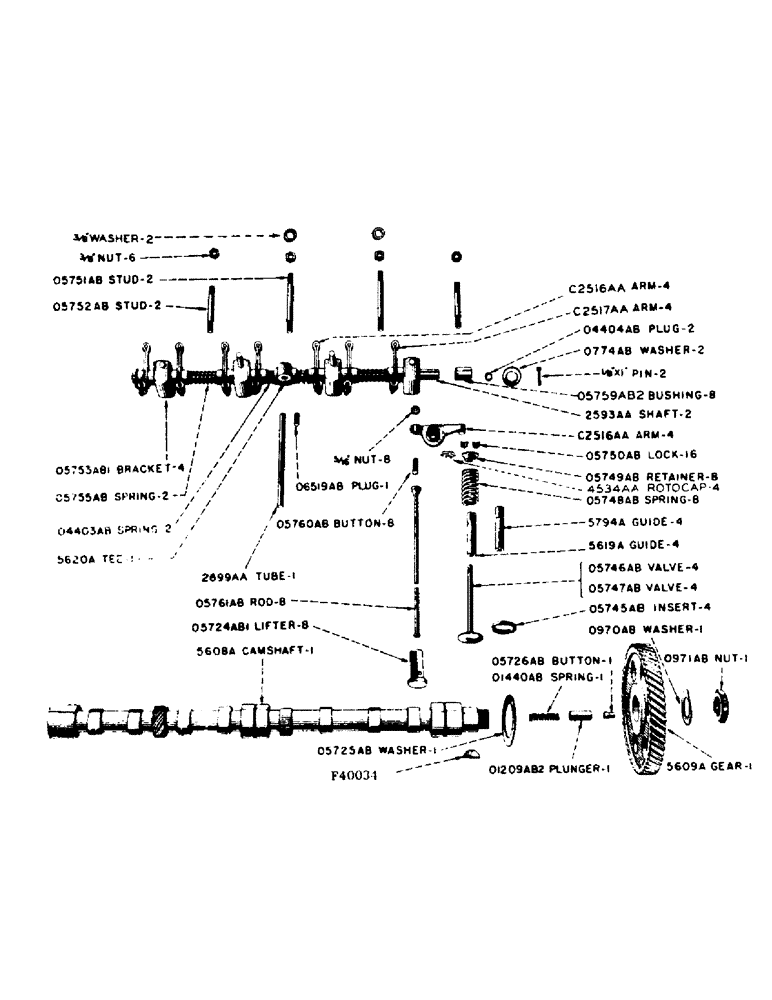

Схема запчастей Case IH SO-SERIES - (010) - VALVES, PUSH RODS AND CAMSHAFT, S, SC, SO (02) - ENGINE

Артикул

Название

Примечание

Количество

A21669

GUIDE

- inlet valve, set of (4) 5619A

1шт.

A21670

GUIDE

- exhaust valve, set of (4) 5794A

1шт.

A21677

INSERT - exhaust valve seat, set of (4) O5745AB

1шт.

A21686

CAP

ROTOCAP - exhaust valve, set of (4) 4534AA

1шт.

A21691

SPRING

- valve, set of (4) O5748AB

2шт.

A21703

VALVE

S - exhaust, set of (4) O5746ABI

1шт.

A21704

VALVE

S - inlet, set of (4) O5747AB

1шт.

F40034

KEY

- Woodruff for camshaft gear

1шт.

5608A

CAMSHAFT

1шт.

5609A

GEAR - camshaft

1шт.

5619A

GUIDE - inlet valve (Use A21669)

4шт.

5620A

TEE - valve rocker arm oil supply

1шт.

5794A

GUIDE - exhaust valve (Use A21670)

4шт.

C2516AA

X

ARM - valve rocker, R.H., with bushing and adjusting screw

4шт.

C2517AA

X

ARM - valve rocker, L.H., with bushing and adjusting screw

4шт.

2593AA

SHAFT - valve rocker arm, with plug and 1/8" x 1" cotter pin

2шт.

2699AA

TUBE - valve rocker oil supply, with plug

1шт.

4534AA

CAP

ROTOCAP - exhaust valve (See O5749AB) (Use A21686)

4шт.

O774AB

X

WASHER - valve rocker arm shaft

2шт.

O970AB

X

WASHER - lock, camshaft nut

1шт.

O971AB

X

NUT, camshaft (1-1/8" hex. nut - 12 thread)

1шт.

O1209AB2

PLUNGER - camshaft thrust

1шт.

O1440AB

X

SPRING - camshaft thrust plunger

1шт.

O4403AB

X

SPRING - valve rocker arm shaft, short

2шт.

O4404AB

X

PLUG - valve rocker arm shaft

2шт.

O5724AB1

LIFTER - push rod (See O8744AB)

8шт.

O5725AB

WASHER

- camshaft thrust

1шт.

O5726AB

BUTTON - camshaft thrust

1шт.

O5745AB

INSERT - exhaust valve seat (Use A21677)

4шт.

O5746AB1

VALVE, ENG EXHAUST,

VALVE - exhaust (Use A21703)

4шт.

O5747AB

VALVE - inlet (Use A21704)

4шт.

O5748AB

SPRING

- inlet and exhaust valve (Use A21691)

8шт.

O5749AB

RETAINER

- valve spring (See A21686)

8шт.

O5750AB

LOCK

- valve spring retainer (2 required per valve)

16шт.

O5751AB

STUD - valve rocker arm bracket, long

2шт.

NUT - 3/8" hex., light, N.F. thread

4шт.

WASHER - 3/8" plain

2шт.

O5752AB

STUD - valve rocker arm bracket, short

2шт.

O5753AB1

BRACKET - valve rocker arm shaft

4шт.

O5755AB

SPRING - valve rocker arm shaft, long

2шт.

O5759AB2

X

BUSHING - valve rocker arms

8шт.

O5760AB1

X

SCREW - push rod adjusting

8шт.

NUT - 5/16" hex. jam, N.F. thread

8шт.

O5761AB

PUSH ROD

ROD - push

8шт.

O6519AB

PLUG - valve rocker arm oil tube

1шт.

O8744AB

LIFTER - push rod (.010" oversize) (See O5724AB1)

8шт.

Выбрано товаров: 46
