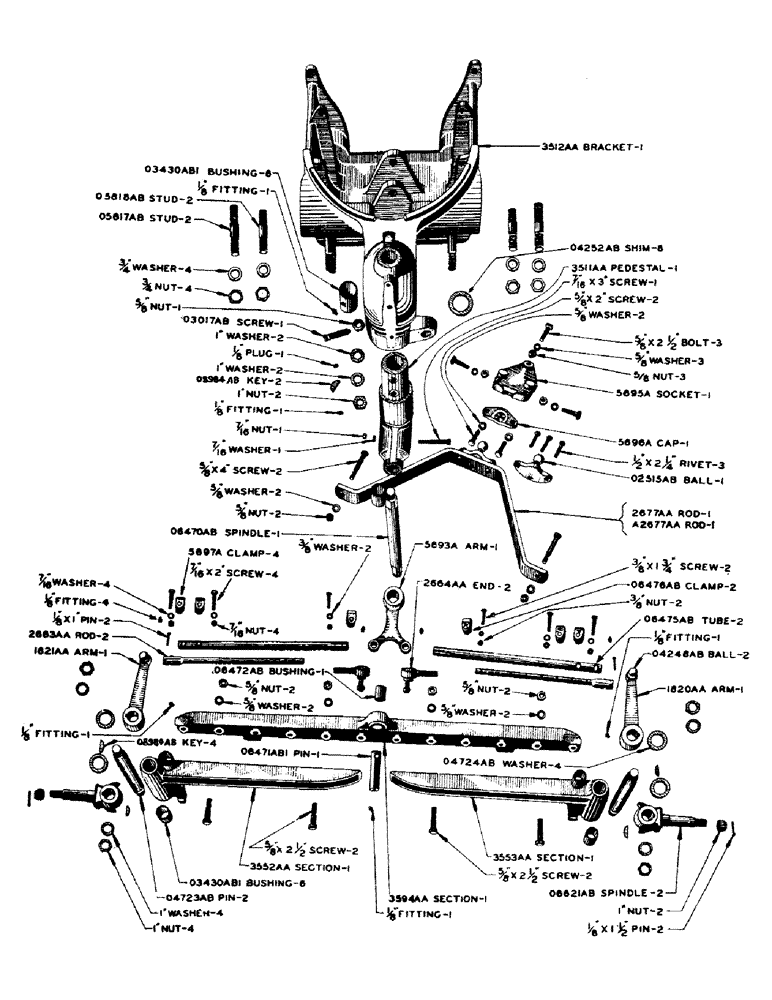

Запчасти Case IH SC-SERIES (110) - ADJUSTABLE FRONT AXLE, FOR SC TRACTOR (06) - POWER TRAIN

5338A

ARM, front wheel spindle, L.H. Use 1820AA

1шт.

5339A

ARM, front wheel spindle, R.H. Use 1821AA

1шт.

5638A

BRACKET, front axle and radiator. Use 3512AA

1шт.

BOLT, 5/8" x 2-1/2" machine, with hexagon nut

3шт.

FITTING, 1/8" straight, Lincoln No. 5000

1шт.

PLUG, 1/8" square head pipe

1шт.

WASHER, 5/8" standard lock

3шт.

5640A

CLAMP, front wheel bracket

2шт.

5688A

SECTION, front axle outer, R.H. Use 3552AA

1шт.

SCREW, 5/8" x 2-1/2" hexagon head cap, N.F. thread

2шт.

WASHER, 5/8" standard lock

2шт.

NUT, 5/8" hexagon, light, N.F. thread

2шт.

FITTING, 1/8" straight, Lincoln No. 5000

1шт.

5689A

SECTION, front axle outer, L.H. Use 3553AA

1шт.

SCREW, 5/8" x 2-1/2" hexagon head cap, N.F. thread

2шт.

WASHER, 5/8" standard lock

2шт.

NUT, 5/8" hexagon, light, N.F. thread

2шт.

FITTING, 1/8" straight, Lincoln No. 5000

1шт.

5690A

SECTION, front axle center. Use 3594AA

1шт.

5691A

PEDESTAL, adjustable front axle. Use 3511AA

1шт.

SCREW, 7/16" x 3" hexagon head cap, N.F. thread

1шт.

WASHER, 7/16" standard lock

1шт.

NUT, 7/16" hexagon, light, N.F. thread

1шт.

FITTING, 1/8" straight Lincoln No. 5000

1шт.

5692A

SPINDLE, front wheel. Use O6621AB

1шт.

5693A

ARM, front axle steering spindle, lower

1шт.

5695A

SOCKET, front axle radius rod ball

1шт.

BOLT, 5/8" x 2-1/2" machine, N.C. thread

3шт.

NUT, 5/8" hexagon, N.C. thread

3шт.

WASHER, 5/8" standard lock

3шт.

5696A

CAP, front axle radius rod ball socket

1шт.

SCREW, 5/8" x 2" hexagon head cap, N.C. thread

2шт.

WASHER, 5/8" standard lock

2шт.

5697A

X

CLAMP, front axle tie rod

4шт.

SCREW, 7/16" x 2" hexagon head cap, N.F. thread

4шт.

WASHER, 7/16" standard lock

4шт.

NUT, 7/16" hexagon, light, N.F. thread

4шт.

O2515AB

BALL, front axle radius rod, used with 2677AA

1шт.

RIVET, 1/2" x 2-1/4" round head

3шт.

O3017AB

SCREW, set, front axle pedestal

1шт.

NUT, 5/8" hexagon jam, N.C. thread

1шт.

O3430AB1

BUSHING, front axle king pin and steering spindle

6шт.

O4248AB

BALL, steering arm

3шт.

O4252AB

SHIM, steering spindle adjusting

8шт.

O4723AB

PIN, front axle king

2шт.

NUT, 1" hexagon jam, light, N.F. thread

4шт.

WASHER, 1" standard lock

4шт.

O4724AB

X

WASHER, thrust, front axle king pin

4шт.

O5817AB

STUD, front wheel bracket clamp, long

2шт.

NUT, 3/4" hexagon, light, N.F. thread

2шт.

WASHER, 3/4" standard lock

2шт.

O5818AB

X

STUD, front wheel bracket clamp, short

2шт.

NUT, 3/4" hexagon, light, N.F. thread

2шт.

WASHER, 3/4" standard lock

2шт.

O6470AB

SPINDLE, front axle steering

1шт.

NUT, 1" hexagon jam, light, N.F. thread

2шт.

WASHER, 1" standard lock

2шт.

WASHER, 1" plain

2шт.

O6471AB1

PIN, front axle pivot

1шт.

FITTING, 1/8" straight Lincoln No. 5000

1шт.

O6472AB

X

BUSHING, front axle pivot pin

1шт.

O6475AB

TUBE, frint axle tie rod

2шт.

O6476AB

X

CLAMP, front axle tie rod tube

2шт.

SCREW, 3/8" x 1-3/4" hexagon head cap, N.F. thread

2шт.

NUT, 3/8" hexagon, light, N.F. thread

2шт.

WASHER, 3/8" standard lock

2шт.

O6621AB

SPINDLE, front wheel (1-3/8" diameter at inner bearing). Prior to tractor No. 5314000. See O8527AB. Also see note

2шт.

NUT, 1" castellated, light, N.F. thread

2шт.

PIN, 1/8" x 1-1/2" cotter

2шт.

O8527AB

SPINDLE, front wheel (1-1/2" diameter at inner bearing). Tractor No. 5314000 and after. See O6621AB. Also see note

2шт.

NUT, 1" castellated, light, N.F. thread

2шт.

PIN, 1/8" x 1-1/2" cotter

2шт.

O8984AB

X

KEY, fastens upper and lower steering spindle arms to O6470AB steering spindle, and fastens wheel spindle and wheel spindle arms to O4723AB king pins

6шт.

1820AA

ARM, front wheel spindle, L.H., with ball

1шт.

1821AA

ARM, front wheel spindle, R.H., with ball

1шт.

2528AA

ARM, steering spindle, with ball, upper

1шт.

2677AA

ROD, front axle radius, with riveted ball. Use A2677AA

1шт.

A2677AA

ROD, front axle radius, with welded ball

1шт.

SCREW, 5/8" x 4" hexagon head cap, N.F. thread

2шт.

NUT, 5/8" hexagon light, N.F. thread

2шт.

WASHER, 5/8" standard lock

2шт.

3511AA

PEDESTAL, adjustable front axle, with bushing

1шт.

3512AA

BRACKET, front axle and radiator, with bushing

1шт.

3552AA

SECTION, front axle outer, R.H., with bushings

1шт.

3553AA

SECTION, front axle outer, L.H., with bushings

1шт.

3594AA

SECTION, front axle center, with bushings

1шт.
