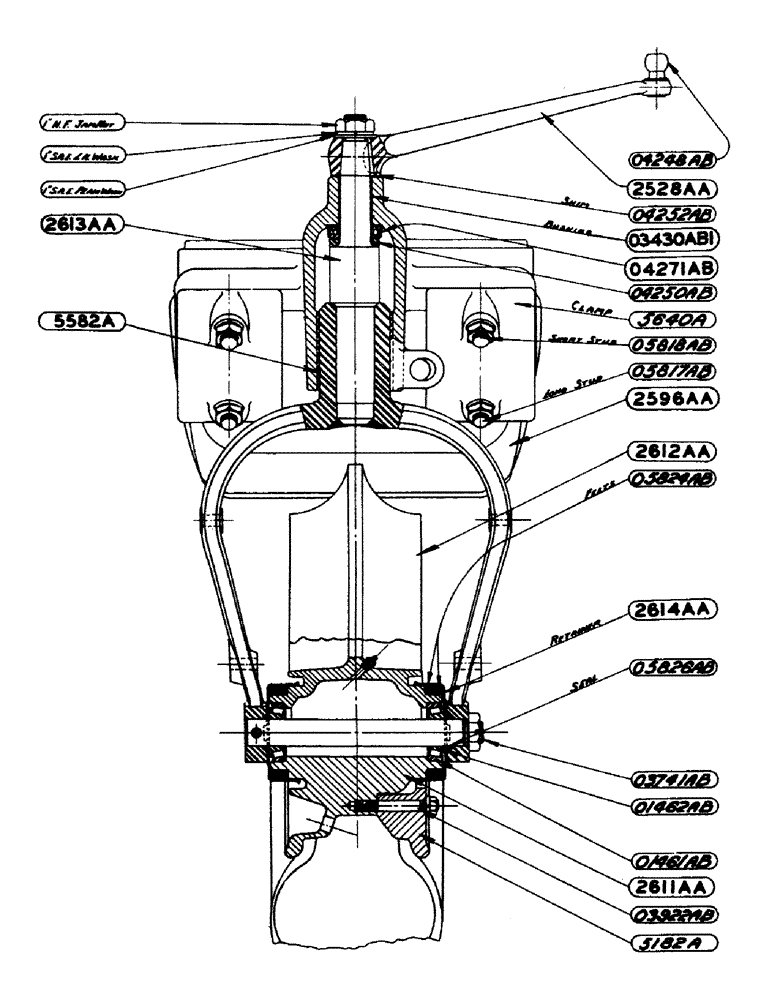

Запчасти Case IH SC-SERIES (097) - SINGLE FRONT WHEEL ASSEMBLY, FOR SC TRACTOR (06) - POWER TRAIN

5182A

RIM, single front wheel hub (For rubber tire wheel)

1шт.

5582A

BUSHING, lower, front wheel fork and radiator bracket

1шт.

5638A

BRACKET, radiator. Use 2596AA

1шт.

5640A

CLAMP, radiator bracket

2шт.

5645A

FORK, front wheel, use 2613AA

1шт.

5646A

HUB, single front wheel (Rubber tire wheel) use 2611AA

1шт.

5647A

WHEEL, single front (Cast) use 2612AA

1шт.

FITTING, 1/8" straight Lincoln No. 5000

1шт.

O1461AB

X

CUP, bearing, front wheel, Timken No. 14274

2шт.

O1462AB

X

CONE, bearing front wheel, Timken No. 14125

2шт.

O3430AB1

BUSHING, radiator bracket, upper

1шт.

O3741AB

AXLE, single front wheel

1шт.

NUT, 1" slotted shear, light, N.F. thread

1шт.

PIN, 1/8" x 1-3/4" cotter

1шт.

SCREW, 3/8" x 3-1/4" hexagon head cap, N.F. thread

1шт.

NUT, 3/8" hexagon, light, N.F. thread

1шт.

WASHER, 3/8" standard lock

1шт.

O3922AB

STUD, single front rubber tire wheel

6шт.

NUT, 1/2" hexagon, light, N.F. thread

6шт.

WASHER, 1/2" standard lock

6шт.

O4248AB

BALL, steering arm

1шт.

O4250AB

COLLAR, steering spindle bearing

1шт.

O4252AB

SHIM, steering spindle adjusting

8шт.

O4271AB

X

BEARING, thrust, steering spindle, Timken No. T-139

1шт.

O5817AB

STUD, front wheel bracket clamp, long

2шт.

NUT, 3/4" hexagon, light, N.F. thread

2шт.

WASHER, 3/4" standard lock

2шт.

O5818AB

X

STUD, front wheel bracket clamp, short

2шт.

NUT, 3/4" hexagon, light, N.F. thread

2шт.

WASHER, 3/4" standard lock

2шт.

O5824AB

FELT

WASHER, felt, front wheel hub

4шт.

O5826AB

SEAL

single front wheel axle shaft

2шт.

O8984AB

X

KEY on upper end of steering spindle for steering arm

1шт.

A1407AA

WHEEL, single front, complete less rubber tire. Consists of 1 - 5182A, 6 - O3922AB, 4 - O5824AB, 1 - 2611AA, and 2 - 2614AA

1шт.

2528AA

ARM, steering spindle, with ball

1шт.

2596AA

BRACKET, radiator, with bushings

1шт.

SCREW, 5/8" x 3/4" hexagon head cap, N.C. thread

1шт.

FITTING, 1/8" straight Lincoln No. 5000

2шт.

2611AA

HUB, single front wheel, with bearing cups (Rubber tire wheel)

1шт.

FITTING, 1/8" straight Lincoln No. 5000

1шт.

2612AA

WHEEL, single front, with bearing cups (Cast wheel)

1шт.

2613AA

FORK, single front wheel, with steering spindle

1шт.

NUT, 1" hexagon jam, light, N.F. thread

1шт.

WASHER, 1" standard lock

1шт.

WASHER, 1" plain

1шт.

2614AA

RETAINER, single front wheel felt, with lock

2шт.
