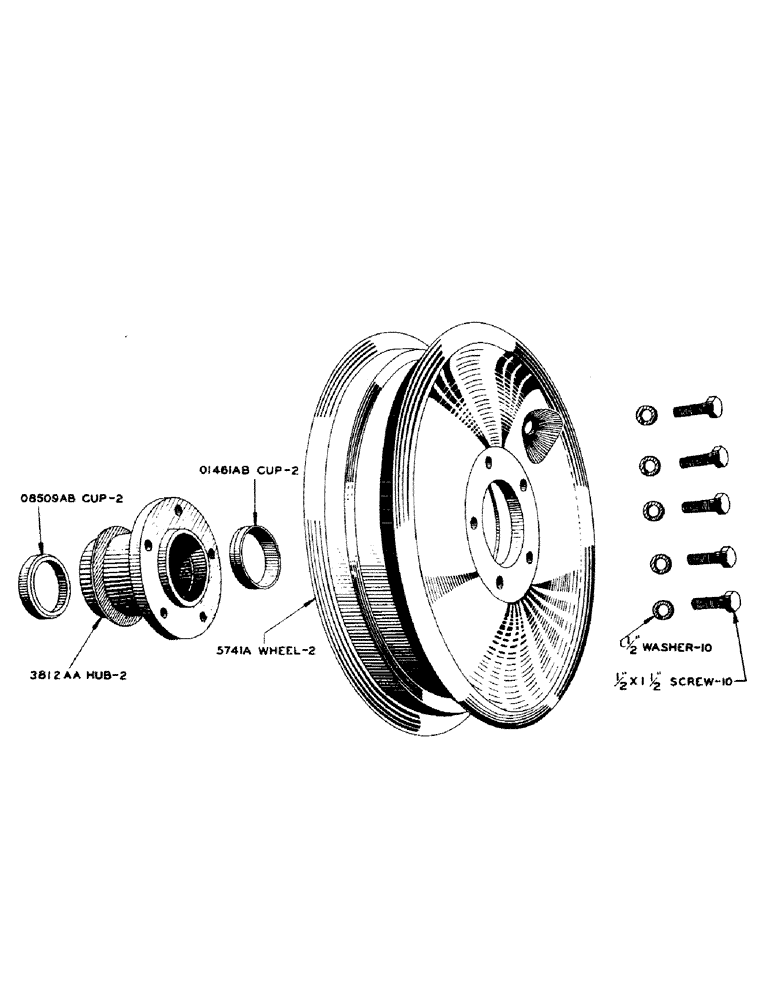

Запчасти Case IH SC-SERIES (096) - DUAL FRONT WHEELS FOR PNEUMATIC FARM TIRES, FOR SC TRACTOR (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
5642A
HUB, front wheel. Use 2523AA or 3812AA
1шт.
5741A
WHEEL, front, less hub, for 5.00 x 15 tire. Tractor No. 4505420 and after. See O4556Ab and 2674AA
2шт.
O882AB
WASHER, front wheel spindle
2шт.
O1456AB
CONE
front wheel inner bearing, Timken No. 2788. Tractor No. 5313815 and after. See O3766AB
2шт.
O1461AB
X
CUP, front wheel outer bearing, Timken No. 14274, for 2523AA and 3812AA hubs
2шт.
O1462AB
X
CONE, front wheel outer bearing, Timken No. 14125
2шт.
O3765AB
X
CUP, front wheel hub inner bearing, Timken No. O2820, for 2523AA hub See O8509AB
2шт.
O3766AB
BEARING
CONE, front wheel inner bearing, Timken No. O2877. Prior to tractor No. 5313815. See O1456AB
2шт.
O4554AB
CAP, front wheel hub
2шт.
O4556AB
WHEEL, front, less hub, for 5.00 x 15 tire. Prior to tractor No. 4505420. See 5741A and 2524AA
2шт.
O4557AB
BOLT, front wheel hub. Prior to tractor No. 4505420
10шт.
O5823AB
SEAL
front wheel hub felt retainer. Prior to tractor No. 5313815. See O8513AB
2шт.
O5824AB
FELT
WASHER, felt, front wheel hub
4шт.
O5809AB
CUP, front wheel inner bearing, Timken No. 2726, for 3812AA hub. See O3765AB
2шт.
O8513AB
X
SEAL, front wheel hub felt retainer. Tractor No. 5313815 and after. See O5823AB
2шт.
2514AA
X
RETAINER, hub felt, with lock. Prior to tractor No. 5313815. See 3801AA.
2шт.
2523AA
HUB, front wheel, with bearing cups, for 5741A or O4556AB wheels when using O5820AB spindle. See 3812AA. Consists of 1 - 5642A, 1 - O1461AB and 1 - O3765AB
2шт.
2524AA
WHEEL, front, with hub and cups, for 5.00 x 15 tire. Prior to tractor No. 4505420. See 2674AA and A2674AA. Consists of 1 - 2523AA, 1 - O4556AB and 5 - O4557AB
2шт.
2674AA
WHEEL, front, with hub and cups, for 5.00 x 15 tire. Tractor No. 4505420 to tractor No. 5313815. See 2524AA or A2674AA. Consists of 1 - 5741A and 1 - 2523AA
2шт.
A2674AA
WHEEL, front, with hub and cups, for 5.00 x 15 tire. Tractor No. 5313815 and after. See 2674AA and 2524AA. Consists of 1 - 5741A, 1 - 3812AA, 5-1/2" x 1-1/2" hex hd. cap screw, N.F. thread and 5-1/2" std. lockwasher
2шт.
3801AA
X
RETAINER, hub felt, with lock. Tractor No. 5313815 and after. See 2514AA
2шт.
3812AA
HUB, front wheel, with bearing cups, for 5741A or O4556AB wheels when using O8510AB spindle. See 2523AA. Consists of 1 - 5642A, 1 - O1461AB and 1 - O8509AB
2шт.
Выбрано товаров: 22
