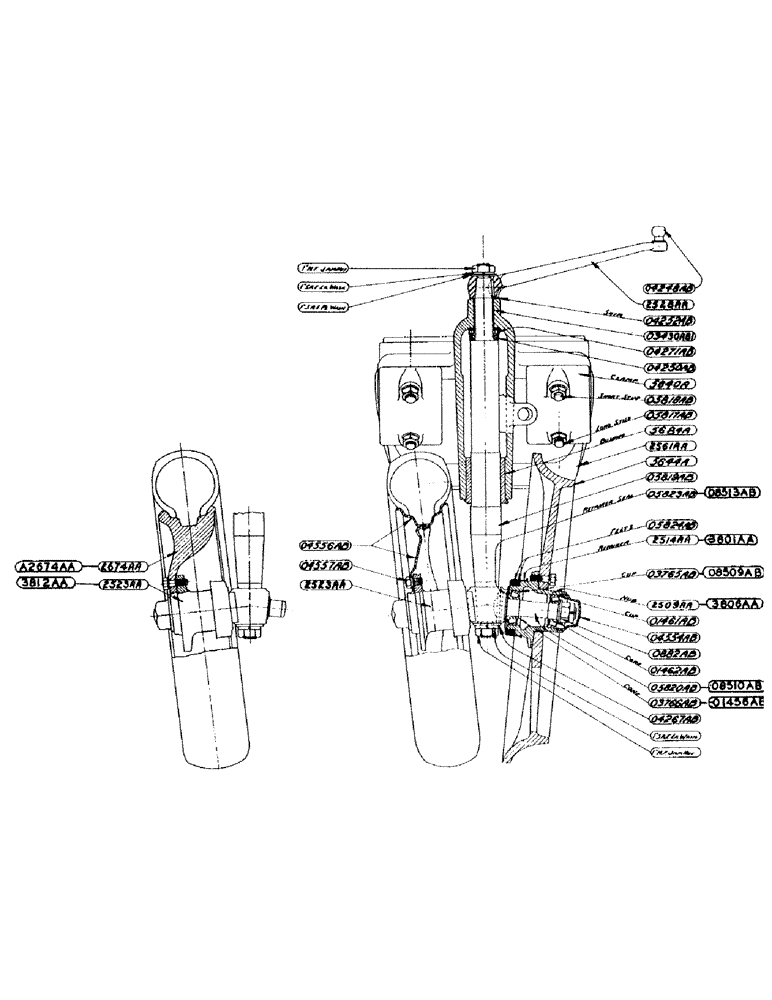

Запчасти Case IH SC-SERIES (093) - DUAL FRONT WHEEL AND SPINDLE ASSEMBLY, FOR SC TRACTOR, SC (06) - POWER TRAIN

5554A

WEIGHT, radiator bracket

1шт.

5637A

BRACKET, radiator (Double front wheel). Use 2561AA

1шт.

FITTING, 1/8" straight Lincoln no. 5000

2шт.

SCREW, 1/2" x 2" hexagon head cap, N.F. thread

5шт.

SCREW, 1/2" x 2-3/4" hexagon head cap, N.F. thread

1шт.

NUT, 1/2" hexagon, light, N.F. thread

6шт.

WASHER, 1/2" standard lock

6шт.

SCREW, 5/8" x 3/4" hexagon head cap, N.C. thread

1шт.

5640A

CLAMP, front wheel bracket

2шт.

5641A

BUSHING, steering spindle, lower, prior to tractor no. 4501845. See 5684A

1шт.

5684A

BUSHING, upright steering spindle, lower, tractor no. 4501845 and after. See 5641A

1шт.

O3430AB1

BUSHING, steering spindle, upper

1шт.

O4248AB

BALL, steering arm

1шт.

O4250AB

COLLAR, steering spindle bearing

1шт.

O4252AB

SHIM, adjusting steering spindle

8шт.

O4267AB

WASHER, steering spindle, lower

1шт.

O4271AB

X

BEARING, thrust, steering spindle, Timken no. T-139

1шт.

O5817AB

STUD, front wheel bracket clamp, long

2шт.

NUT, 3/4" hexagon, light, N.F. thread

2шт.

WASHER, 3/4" standard lock

2шт.

O5818AB

X

STUD, front wheel bracket clamp, short

2шт.

NUT, 3/4" hexagon, light, N.F. thread

2шт.

WASHER, 3/4" standard lock

2шт.

O5819AB

SPINDLE, steering

1шт.

KEY, no. 29 Wodruff

1шт.

NUT, 1" hexagon jam, light, N.F. thread

2шт.

WASHER, 1" standard lock

2шт.

WASHER, 1" plain

1шт.

O5820AB

SPINDLE, front wheel (1-3/8" diameter at inner bearing). Prior to tractor no. 5313815. See O8510AB. See note

1шт.

NUT, 1" castellated, light, N.F. thread

2шт.

PIN, 1/8" x 1-1/2" cotter

2шт.

O8510AB

SPINDLE, front wheel (1-1/2" diameter at inner bearing). Tractor no. 5313815 and after. See O5820AB. See note

1шт.

NUT, 1" castellated, light, N.F. thread

2шт.

PIN, 1/8" x 1-1/2" cotter

2шт.

O8984AB

X

KEY ON UPPER END OF STEERING SPINDLE FOR STEERING ARM

1шт.

2528AA

ARM, steering spindle, with bail

1шт.

2561AA

BRACKET, radiator, with bushings

1шт.

5643A

HUB, front wheel. Use 2509AA or 3806AA

1шт.

5644A

WHEEL, front cast

2шт.

SCREW, 1/2" x 1-3/4" hexagon head cap, N.F. thread

10шт.

WASHER, 1/2" standard lock

10шт.

O882AB

WASHER, front wheel spindle

2шт.

O1456AB

CONE

front wheel inner bearing, Timken no. 2788. Tractor no. 5313815 and after. See O3766AB

2шт.

O1461AB

X

CUP, front wheel outer bearing, Timken no. 14274, for 2509A and 3806AA hubs

2шт.

O1462AB

X

CONE, front wheel outer bearing, Timken no. 14125

2шт.

O3765AB

X

CUP, front wheel hub inner bearing, Timken no. O2820, for 2509AA hub. See O8509AB

2шт.

O3766AB

BEARING

CONE, front wheel inner bearing, Timken no. O2877. Prior to tractor no. 5313815. See O1456AB

2шт.

O4554AB

CAP, front wheel hub

2шт.

O5823AB

SEAL

front wheel hub felt retainer. Prior to tractor no. 5313815. See O8513AB

2шт.

O5824AB

FELT

WASHER, felt, front wheel hub

4шт.

O8509AB

X

CUP, front wheel inner bearing, Timken no. 2726, for 3806AA hub. See O3765AB

2шт.

O8513AB

X

SEAL, front wheel hub felt retainer. Tractor no. 5313815 and after. See O5823AB

2шт.

2509AA

HUB, front wheel with bearing cups for O5820AB spindle. See 3806AA. Consists of 1 - 5643A, 1 - O1461AB and 1 - O3765AB

2шт.

2514AA

X

RETAINER, hub felt, with lock. Prior to tractor no. 5313815. See 3801AA

2шт.

3801AA

X

RETAINER, hub felt, with lock. Tractor no. 5313815 and after. See 2514AA

2шт.

3806AA

HUB, front wheel with bearing cups for O8510AB spindle. See 2509AA. Consists of 1 - 5643A, 1 - O1461AB, 1 - O8509AB

2шт.
