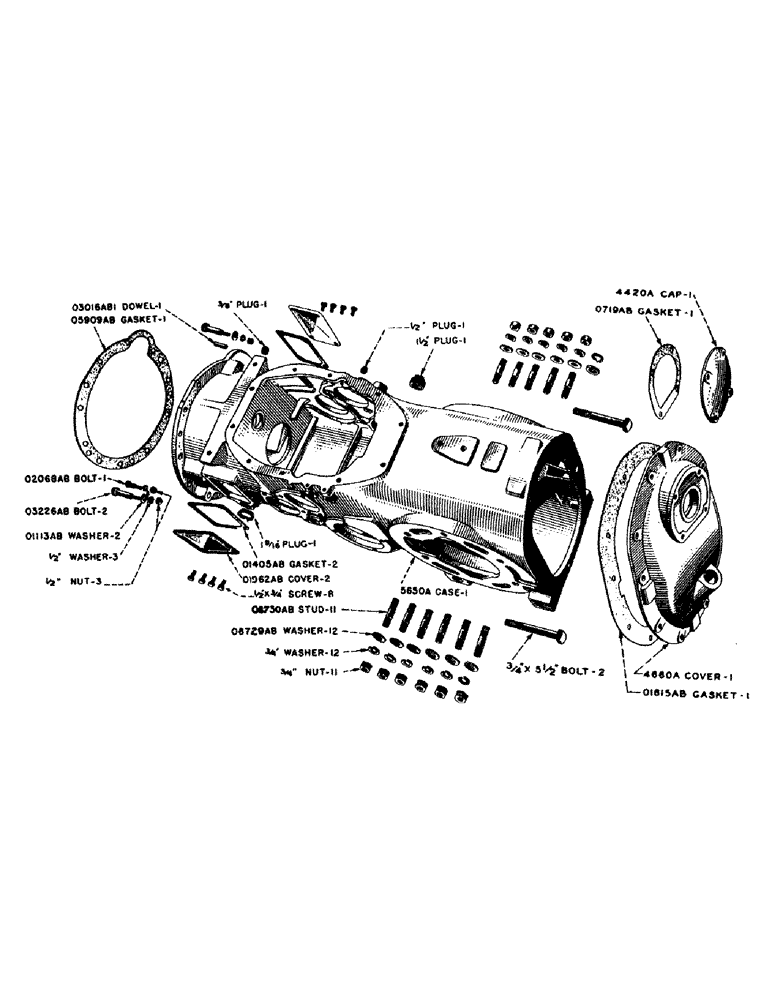

Запчасти Case IH SC-SERIES (060) - TRANSMISSION CASE, S, SC, SO (06) - POWER TRAIN

4420A

CAP, transmission case rear cover. Used with 4660A, S, SO

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread, S, SO

4шт.

WASHER, 1/2" standard lock, S, SO

4шт.

4660A

COVER, transmission case rear. Tractor No. 4706368 and after, S, SO

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread, S, SO

10шт.

WASHER, 1/2" standard lock, S, SO

10шт.

PLUG, 1-1/4" square head pipe, S, SO

1шт.

A5095A

COVER, transmission case rear. Prior to tractor No. 4706368, S, SO

1шт.

SCREW, 1/2" x 1-3/4" hexagon head cap, N.C. thread, S, SO

4шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread, S, SO

6шт.

WASHER, 1/2" standard lock, S, SO

10шт.

PLUG, 1-1/4" square head pipe, S, SO

1шт.

5330A

CAP, transmission case rear cover. Used with A5095A, S, SO

1шт.

SCREW, 3/8" x 1" hexagon head cap, N.C. thread, S, SO

3шт.

WASHER, 3/8" standard lock, S, SO

3шт.

5369A

COVER, transmission case rear, SC

1шт.

5369A

COVER, transmission case rear. Replaces 4660A when power take- off with motor lift and raising bail is used, SO

1шт.

PLUG, 1/4" pipe, SC, SO

1шт.

PLUG, 1/2" pipe, SC, SO

1шт.

PLUG, 1-1/4" pipe, SC, SO

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread, SC, SO

4шт.

SCREW, 1/2" x 1-3/4" hexagon head cap, N.C. thread, SC, SO

4шт.

WASHER, 1/2" standard lock, SC, SO

8шт.

5650A

CASE, transmission. Use A10292

1шт.

PLUG, 3/8" square head pipe

1шт.

PLUG, 1/2" square head pipe

1шт.

PLUG, 1-1/2" square head pipe

1шт.

BOLT, 3/4" x 5-1/2" machine, less nut

2шт.

PLUG, 1-9/16" Welch

1шт.

O719AB

GASKET, rear cover cap. Used with 4420A, S, SO

1шт.

O1113AB

WASHER, transmission flange bolt

2шт.

O1405AB

X

GASKET, clutch hand hole cover

2шт.

O1615AB

X

GASKET, transmission case rear cover

1шт.

O1962AB

COVER, clutch hand hole

2шт.

SCREW, 1/2" x 3/4" hexagon head cap, N.C. thread

8шт.

O2068AB

BOLT, transmission dowel

1шт.

NUT, 1/2" hexagon, light, N.F. thread

1шт.

WASHER, 1/2" standard lock

1шт.

O3016AB1

DOWEL, transmission and cylinder block

1шт.

O3226AB

BOLT, transmission flange

2шт.

NUT, 1/2" hexagon, light, N.F. thread

2шт.

WASHER, 1/2" standard lock

2шт.

O4628AB

GASKET, rear cover cap. Used with 5330A, S, SO

1шт.

O5909AB

GASKET

transmission front end

1шт.

O8729AB

X

WASHER, rear axle housing stud

12шт.

O8730AB

STUD, rear axle housing (3/4" x 3-3/8") See O8731AB, S, SO

11шт.

O8730AB

STUD, rear axle housing (3/4" x 3-3/8") See O8731AB, SC

9шт.

NUT, 3/4" hexagon, light, N.F. thread, S, SO

11шт.

NUT, 3/4" hexagon, light, N.F. thread, SC

9шт.

WASHER, 3/4" standard lock, S, SO

12шт.

WASHER, 3/4" standard lock, SC

10шт.

O8731AB

STUD, rear axle housing, long (3/4" x 3-5/8") See O8730AB, SC

2шт.

NUT, 3/4" hexagon, light, N.F. thread, SC

2шт.

WASHER, 3/4" standard lock, SC

2шт.
