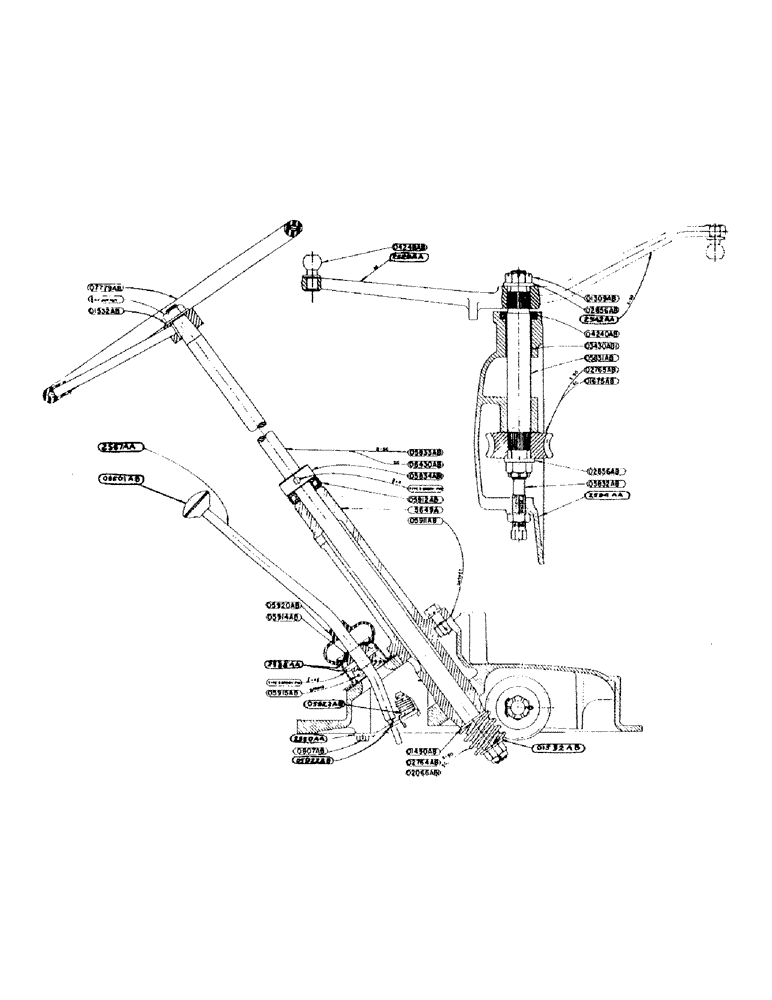

Запчасти Case IH SC-SERIES (115) - STEERING GEAR ASSEMBLY (05) - STEERING

5649A

COLUMN, steering shaft

1шт.

FITTING, 1/8" straight Lincoln No. 5000

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread

3шт.

WASHER, 1/2" standard lock

3шт.

O1309AB

NUT, steering drop arm shaft

1шт.

O1450AB

WASHER, thrust, steering shaft

1шт.

O1532AB

WASHER, steering shaft

2шт.

O1675AB

WHEEL, steering worm, SC

1шт.

O2066AB1

WORM, steering, SC

1шт.

O2764AB

WORM, steering, S, SO

1шт.

O2765AB

WHEEL, steering worm, S, SO

1шт.

O2856AB

WASHER, steering drop arm shaft

2шт.

O3430AB1

BUSHING, steering drop arm shaft

1шт.

O4240AB

X

SEAL, oil, steering drop arm shaft

1шт.

O4248AB

BALL, steering drop arm

1шт.

O4935AB

X

WHEEL, steering. Use O7779AB

1шт.

O4995AB

X

KNOB, for O4935AB steering wheel

1шт.

O4996AB

BOLT, for O4995AB steering wheel knob

1шт.

NUT, 3/8" hexagon jam, N.C. thread

1шт.

WASHER, 3/8" standard lock

1шт.

WASHER, 3/8" plain

2шт.

O5831AB

SHAFT, steering drop arm

1шт.

NUT, 7/8" castellated, light, N.F. thread

1шт.

PIN, 1/8" x 1-1/4" cotter

2шт.

O5832AB

SCREW, adjusting, steering drop arm shaft

1шт.

NUT, 3/4" hexagon jam, light, N.F. thread

1шт.

O5833AB

SHAFT, steering, S, SC

1шт.

KEY, No. 15 Woodruff, S, SC

1шт.

KEY, No. 127 Woodruff, S, SC

1шт.

NUT, 3/4" hexagon jam, light, N.F. thread, S, SC

1шт.

NUT, 3/4" castellated, light, N.F. thread, S, SC

1шт.

PIN, 1/8" x 1-1/4" cotter, S, SC

1шт.

O5834AB

COLLAR, steering shaft (2-3/16" diameter). Use O5834AB1

1шт.

PIN, 3/8" x 2-1/4" type 1 tapered groove

1шт.

O5834AB1

COLLAR, steering shaft (2" diameter)

1шт.

PIN, 3/8" x 2" type 1 tapered groove

1шт.

O5911AB

GASKET, steering column and shaft

1шт.

O5912AB

BEARING, thrust, steering shaft, Timken No. T-107

1шт.

O6430AB

SHAFT, steering, SO

1шт.

KEY, No. 15 Woodruff, SO

1шт.

KEY, No. 127 Woodruff, SO

1шт.

NUT, 3/4" hexagon jam, light, N.F. thread, SO

1шт.

NUT, 3/4" castellated, light, N.F. thread, SO

1шт.

PIN, 1/8" x 1-1/4" cotter, SO

1шт.

O7779AB

X

WHEEL, steering (17-3/4")

1шт.

2519AA

LINK, steering drag, SC

1шт.

FITTING, 1/8" straight Lincoln No. 5000, SC

2шт.

2529AA

ARM, steering drop, with ball, SC

1шт.

2542AA

ARM, steering drop, with ball, S, SO

1шт.

2544AA

LINK, steering drag, S, SO

1шт.

FITTING, 1/8" straight Lincoln No. 5000, S, SO

2шт.

O8630AB

X

BEARING, steering drag link floating. Mfg. No. 16DB-29, parts for 2519AA or 2544AA

4шт.

O8631AB

X

SPRING, steering drag link. Mfg. No. 16DS-1, parts for 2519AA or 2544AA

2шт.

O8633AB

X

PLUG, steering drag link. Mfg. No. 16DP-23, parts for 2519AA or 2544AA

2шт.

O8634AB

X

WIRE, steering drag link lock. Mfg. No. 16DM-1, parts for 2519AA or 2544AA

2шт.
