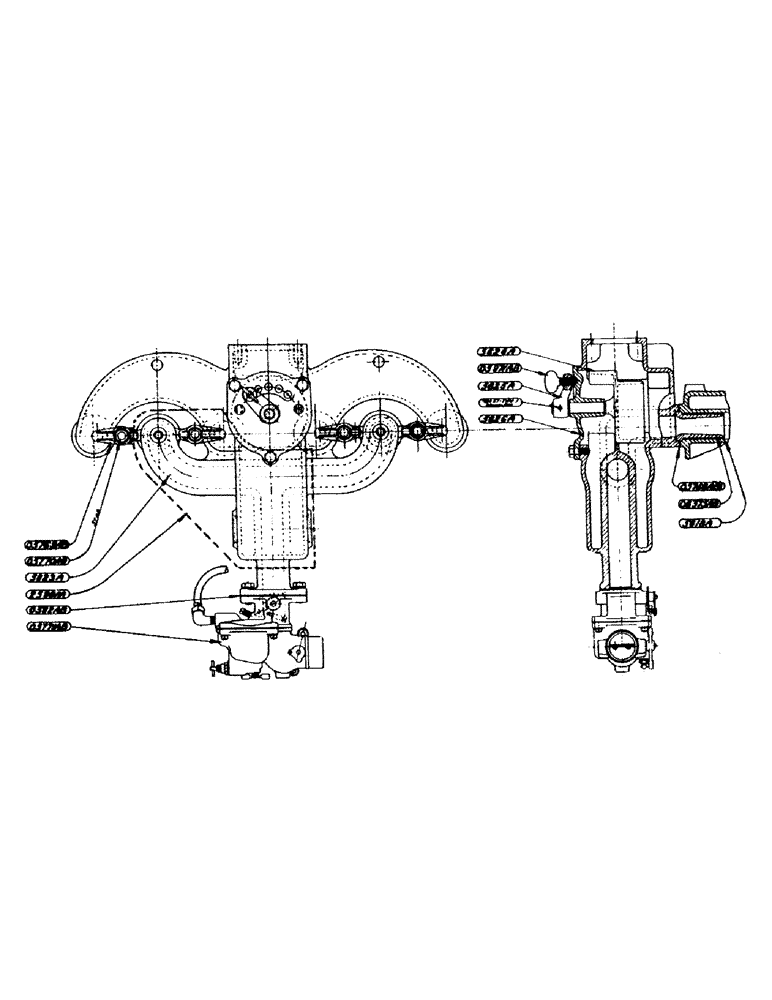

Запчасти Case IH SC-SERIES (018) - LOW COST FUEL MANIFOLD ASSEMBLY, S, SC, SO (02) - ENGINE

5623A

MANIFOLD, inlet and exhaust

1шт.

PLUG, 1/8" square head pipe

2шт.

PLUG, 1-1/4" Welch

2шт.

SCREW, 5/16" x 7/8" hexagon head cap, N.C. thread

2шт.

WASHER, 5/16" standard lock

2шт.

5624A

VALVE, heat regulator

1шт.

5625A

LEVER, heat regulator valve

1шт.

PIN, 11/64" x 1" type 1 groove

1шт.

5626A

COVER, heat regulator valve

1шт.

SCREW, 5/16" x 3/4" hexagon head cap, N.C. thread

3шт.

5685A

ELBOW, exhaust, SO

1шт.

5687A

ELBOW, exhaust, S, SC

1шт.

O5768AB1

GASKET

inlet and exhaust manifold. See 4057AA

2шт.

O5769AB

CLAMP, manifold

4шт.

O5770AB

STUD, manifold clamp

4шт.

NUT, 3/8" hexagon, light, N.F. thread

4шт.

O5971AB

SCREW, heat regulator lever

1шт.

O6328AB

STUD, exhaust elbow

4шт.

NUT, 3/8" hexagon, light, N.F. thread

4шт.

O6375AB

VENTURI, inlet manifold

2шт.

2598AA

SHIELD, manifold

1шт.
