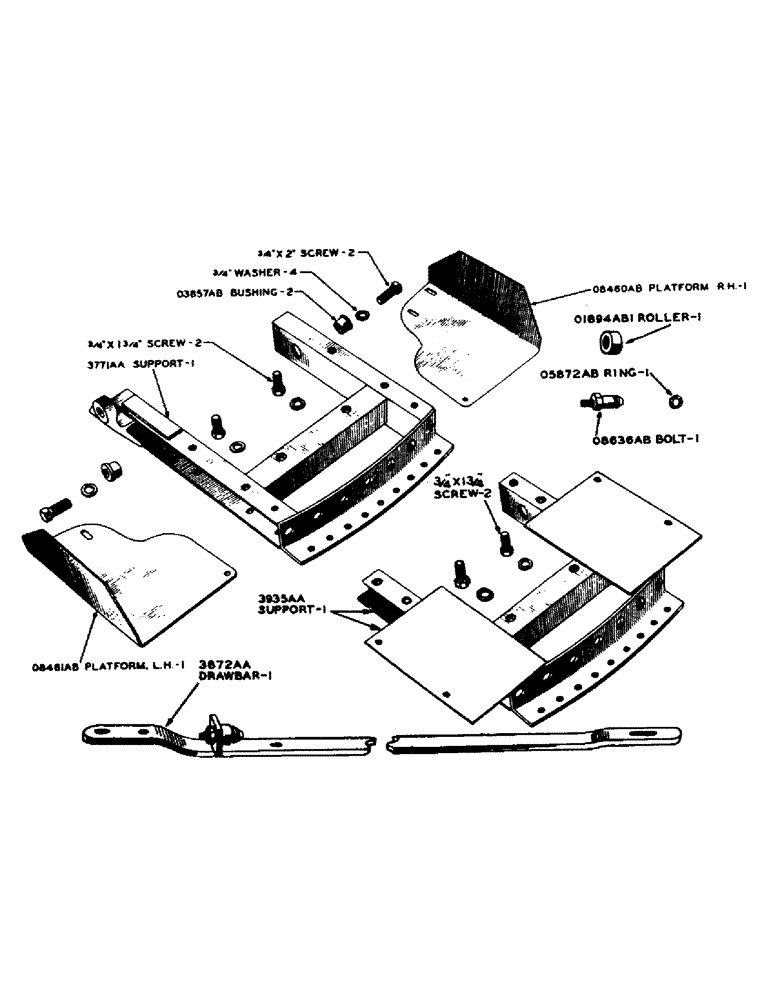

Запчасти Case IH SC-SERIES (165) - DRAW BAR, PLATFORM AND TOOL BOX FOR TRACTORS WITH HYDRAULIC UNIT (09) - CHASSIS

O1894AB1

ROLLER, draw bar

1шт.

O3857AB

BUSHING, draw bar support

2шт.

O5872AB

X

RING, draw bar roller bolt snap

1шт.

O8460AB

PLATFORM, R.H., S, SC

1шт.

SCREW, 3/8" x 3/4" hexagon head cap, N.C. thread, S, SC

1шт.

WASHER, 3/8" standard lock, S, SC

1шт.

O8461AB

PLATFORM, L.H., S, SC

1шт.

SCREW, 3/8" x 3/4" hexagon head cap, N.C. thread, S, SC

1шт.

WASHER, 3/8" standard lock, S, SC

1шт.

O8486AB

BRACKET, tool box, SO

1шт.

O8487AB

PLATE, tool box mounting backing, SO

1шт.

SCREW, 3/8" x 1" hexagon head cap, N.F. thread, SO

2шт.

NUT, 3/8" hexagon, light, N.F. thread, SO

2шт.

WASHER, 3/8" standard lock, SO

2шт.

O8636AB

BOLT, draw bar roller

1шт.

NUT, 3/4" hexagon, light, N.F. thread

1шт.

WASHER, 3/4" standard lock

1шт.

2884AA

TOOL BOX, SO

1шт.

SCREW, 5/16" x 5/8" hexagon head cap, N.F. thread, SO

2шт.

NUT, 5/16" hexagon, light, N.F. thread, SO

2шт.

WASHER, 5/16" standard lock, SO

2шт.

3770AA

TOOL BOX AND SUPPORT, S, SC

1шт.

SCREW, 5/16" x 5/8" hexagon head cap, N.C. thread, S, SC

1шт.

WASHER, 5/16" standard lock, S, SC

1шт.

WASHER, 5/16" plain, S, SC

1шт.

3771AA

SUPPORT, draw bar. See 3935AA, S, SC

1шт.

SCREW, 3/4" x 1-3/4" hexagon head cap, N.C. thread, S, SC

2шт.

SCREW, 3/4" x 2" hexagon head cap, N.C. thread, S, SC

2шт.

WASHER, 3/4" standard lock, S, SC

4шт.

3872AA

DRAW BAR complete with roller and bolt

1шт.

SCREW, 5/8" x 1-3/4" hexagon head cap, N.F. thread

1шт.

NUT, 5/8" hexagon, light, N.F. thread

1шт.

WASHER, 5/8" standard lock

1шт.

3935AA

SUPPORT, draw bar. See 3771AA, SO

1шт.
