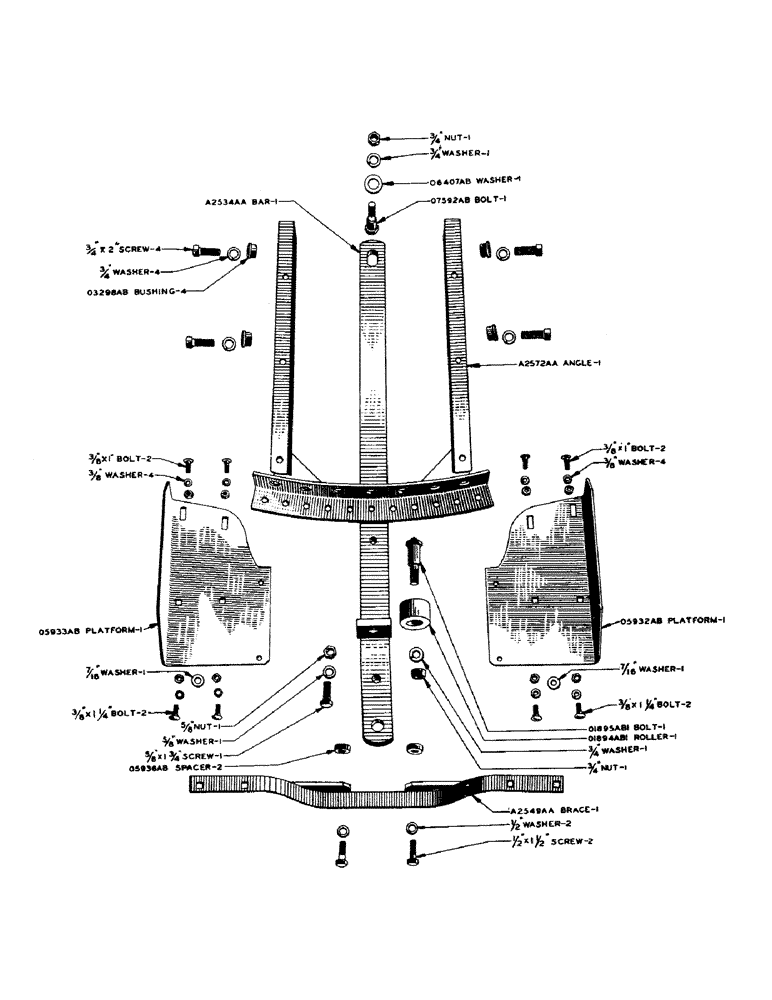

Запчасти Case IH SC-SERIES (161) - DRAW BAR AND PLATFORM FOR TRACTORS WITHOUT HYDRAULIC UNIT, S, SC, SO (09) - CHASSIS

25401/2A

SPACER, platform wood. Tractor No. 4600000 to No. 4900000, SO

2шт.

25431/2A

SPACER, platform wood. Tractor No. 4900000 and after, SO

2шт.

0909AB

BOLT, drawbar pivot. Prior to tractor No. 4803222, also used on tractor No. 4803393 to 4803413 inclusive. See O7592AB

1шт.

O1894AB1

ROLLER, draw bar

1шт.

O1895AB1

BOLT, draw bar roller

1шт.

NUT, 3/4" hexagon, light, N.F. thread

1шт.

WASHER, 3/4" standard lock

1шт.

O3298AB

BUSHING, draw bar support, front. Prior to tractor No. 4803222, also used on tractors No. 4803393 to 4803413 inclusive

2шт.

O3298AB

BUSHING, draw bar support, front and rear. Tractor No. 48023222 and after, except No. 4803393 to 4803413 inclusive

4шт.

SCREW, 3/4" x 2" hexagon head cap, N.C. thread

4шт.

WASHER, 3/4" standard lock

4шт.

O3857AB

BUSHING, draw bar support, rear. Prior to tractor No. 4803222, also used on tractors No. 4803393 to 4803413 inclusive. See O3298AB

2шт.

O5932AB

PLATFORM, R.H. tractor No. 4507452 and after. See O6335AB, S

1шт.

BOLT, 3/8" x 1-1/4" carriage, with hexagon nut, S

1шт.

BOLT, 3/8" x 1-1/2" carriage, with hexagon nut, S

2шт.

NUT, 1/4" hexagon, light, N.F. thread, S

2шт.

NUT, 5/16" hexagon, light, N.F. thread, S

2шт.

SCREW, 5/16" x 3/4" hexagon head cap, N.F. thread, S

2шт.

SCREW, 1/4" x 3/4" round head machine, N.F. thread, S

2шт.

WASHER, 1/4" standard lock, S

2шт.

WASHER, 5/16" standard lock, S

2шт.

WASHER, 3/8" standard lock, S

3шт.

WASHER, 1/4" plain, S

2шт.

O5932AB

PLATFORM, R.H. tractor No. 4507452 to No. 4600000. See O6335AB, O7273AB or O7865AB, SO

1шт.

BOLT, 3/8" x 1-1/4" carriage, with hexagon nut, SO

1шт.

BOLT, 3/8" x 1-1/2" carriage, with hexagon nut, SO

2шт.

NUT, 1/4" hexagon, light, N.F. thread, SO

2шт.

NUT, 5/16" hexagon, light, N.F. thread, SO

2шт.

SCREW, 5/16" x 3/4" hexagon head cap, N.F. thread, SO

2шт.

SCREW, 1/4" x 3/4" round head machine, N.F. thread, SO

2шт.

WASHER, 1/4" standard lock, SO

2шт.

WASHER, 5/16" standard lock, SO

2шт.

WASHER, 3/8" standard lock, SO

3шт.

WASHER, 1/4" plain, SO

2шт.

O5932AB

PLATFORM, R.H. replaces O7865AB when motor lift and raising bail are used, SO

1шт.

BOLT, 3/8" x 1" carriage, with hexagon nut, SO

2шт.

BOLT, 3/8" x 1-1/2" carriage, with hexagon nut, SO

2шт.

WASHER, 3/8" standard lock, SO

4шт.

O5932AB

PLATFORM, R.H., SC

1шт.

BOLT, 3/8" x 1" carriage, with hexagon nut, SC

2шт.

BOLT, 3/8" x 1-1/4" carriage, with hexagon nut, SC

2шт.

WASHER, 3/8" standard lock, SC

4шт.

WASHER, 7/16" plain, SC

1шт.

O5933AB

PLATFORM, L.H. replaces O7865AB when motor lift and raising bail are used, SO

1шт.

BOLT, 3/8" x 1" carriage, with hexagon nut, SO

2шт.

BOLT, 3/8" x 1-1/2" carriage with hexagon nut, SO

2шт.

WASHER, 3/8" standard lock, SO

4шт.

RIVET, 5/16" x 1/2" W.B. head, SO

2шт.

O5933AB

PLATFORM, L.H., SC

1шт.

BOLT, 3/8" x 1" carriage, with hexagon nut, SC

2шт.

BOLT, 3/8" x 1-1/4" carriage, with hexagon nut, SC

2шт.

WASHER, 3/8" standard lock, SC

4шт.

WASHER, 7/16" plain, SC

1шт.

O5933AB

PLATFORM, L.H. tractor No. 4507452 to No. 4600000. See O6335AB, O7273AB or O7865AB, SO

1шт.

BOLT, 3/8" x 1-1/4" carriage, with hexagon nut, SO

1шт.

BOLT, 3/8" x 1-1/2" carriage, with hexagon nut, SO

2шт.

NUT, 1/4" hexagon, light, N.F. thread, SO

2шт.

NUT, 5/16" hexagon, light, N.F. thread, SO

2шт.

SCREW, 5/16" x 3/4" hexagon head cap, N.F. thread, SO

2шт.

SCREW, 1/4" x 3/4" round head machine, N.F. thread, SO

2шт.

WASHER, 1/4" standard lock, SO

2шт.

WASHER, 5/16" standard lock, SO

2шт.

WASHER, 3/8" standard lock, SO

3шт.

WASHER, 1/4" plain, SO

2шт.

O5933AB

PLATFORM, L.H. tractor No. 4507452 and after. See O6335AB, S

1шт.

BOLT, 3/8" x 1-1/4" carriage, with hexagon nut, S

1шт.

BOLT, 3/8" x 1-1/2" carriage, with hexagon nut, S

2шт.

NUT, 1/4" hexagon, light, N.F. thread, S

2шт.

NUT, 5/16" hexagon, light, N.F. thread, S

2шт.

SCREW, 5/16" x 3/4" hexagon head cap, N.F. thread, S

2шт.

SCREW, 1/4" x 3/4" round head, machine, N.F. thread, S

2шт.

WASHER, 1/4" standard lock, S

2шт.

WASHER, 5/16" standard lock, S

2шт.

WASHER, 3/8" standard lock, S

3шт.

WASHER, 1/4" plain, S

2шт.

O5936AB

SPACER, platform brace, SC

2шт.

O5942AB

STRAP, draw bar. Prior to tractor No. 4803222, also used on tractors No. 4803393 to 4803413 inclusive

1шт.

SCREW, 3/4" x 2-1/4" hexagon head cap, N.C. thread

1шт.

NUT, 3/4" hexagon, N.C. thread

2шт.

WASHER, 3/4" standard lock

2шт.

O5982AB

PLATE, lower platform. For repairs furnish 2 - O7114AB cross braces

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.F. thread, SC

4шт.

NUT, 1/2" hexagon, light, N.F. thread, SC

4шт.

WASHER, 1/2" standard lock, SC

4шт.

O6335AB

PLATFORM, R.H. or L.H. Prior to tractor No. 4507452. See O5932AB, O5933AB, O7273AB or O7865AB, S, SO

2шт.

BOLT, 3/8" x 3/4" carriage, with hexagon nut, S, SO

4шт.

BOLT, 3/8" x 1" carriage, with hexagon nut, S, SO

4шт.

BOLT, 3/8" x 1-1/2" carriage, with hexagon nut, S, SO

4шт.

WASHER, 3/8" standard lock, S, SO

12шт.

WASHER, 7/16" plain, S, SO

2шт.

O6337AB

ANGLE, platform support. Prior to tractor No. 4507452., S, SO

1шт.

SCREW, 3/8" x 1" hexagon head cap, N.F. thread, S, SO

2шт.

NUT, 3/8" hexagon, light, N.F. thread, S, SO

2шт.

WASHER, 3/8" standard lock, S, SO

2шт.

O6338AB

APRON, platform, R.H. Prior to tractor No. 4507452, S, SO

1шт.

SCREW, 5/16" x 1" round head, machine, with hex. nut, S, SO

1шт.

WASHER, 5/16" standard lock, S, SO

1шт.

O6339AB

APRON, platform, L.H. Prior to tractor No. 4507452, S, SO

1шт.

SCREW, 5/16" x 1" round head machine, with hex. nut, S, SO

1шт.

WASHER, 5/16" standard lock, S, SO

1шт.

O6340AB

SUPPORT, platform angle. Prior to tractor No. 4507452, S, SO

2шт.

O6407AB

WASHER, draw bar spring

1шт.

O6465AB

SUPPORT, platform. Prior to tractor No. 4803222, also used on tractors No. 4803393 to 4803413 inclusive. See O7594AB, S

2шт.

O6466AB

PLATFORM, upper - center, S

1шт.

O7114AB

BRACE, draw bar support cross. Prior to tractor No. 4803222, also used on tractors No. 4803393 to 4803413 inclusive, SC

2шт.

O7273AB

PLATE, platform. From tractor No. 4600000 to No. 4900000. See O5932AB, O5933AB, O6335AB or O7865AB, SO

1шт.

BOLT, 3/8" x 1-3/4" carriage, with hexagon nut, SO

4шт.

SCREW, 5/16" x 3/4" truss head machine, N.C. thread, SO

4шт.

NUT, 5/16" hexagon, light, N.C. thread, SO

4шт.

WASHER, 5/16" standard lock, SO

4шт.

WASHER, 3/8" standard lock, SO

4шт.

WASHER, 5/16" plain, SO

4шт.

O7274AB

PANEL, fender to platform, R.H. tractor No. 4600000 and after, SO

1шт.

O7275AB

PANEL, fender to platform, L.H. tractor No. 4600000 and after, SO

1шт.

O7276AB

SPACER, fender to platform panel. Tractor No. 4600000 and after, SO

4шт.

O7592AB

BOLT, draw bar pivot. Tractor No. 4803222 and after, except tractor No. 4803393 to 4803413 inclusive. See O909AB

1шт.

NUT, 3/4" hexagon, light, N.F. thread

1шт.

WASHER, 3/4" standard lock

1шт.

O7594AB

SUPPORT, platform. Tractor No. 4803222 and after, except tractor No. 4803393 to 4803413 inclusive. See O6465AB, S

2шт.

SCREW, 3/8" x 1-1/4" hexagon head cap, N.C. thread, S

2шт.

NUT, 3/8" hexagon, light, N.C. thread, S

2шт.

WASHER, 3/8" standard lock, S

2шт.

O7865AB

PLATE, platform. Tractor No. 4900000 and after. See O5932AB, O5933AB, O6335AB or O7273AB, SO

1шт.

BOLT, 3/8" x 1-1/2" carriage, with hexagon nut, SO

4шт.

WASHER, 3/8" standard lock, SO

4шт.

SCREW, 5/16" x 3/4" truss head machine, N.C. thread, SO

4шт.

NUT, 5/16" hexagon, light, N.C. thread, SO

4шт.

WASHER, 5/16" standard lock, SO

4шт.

2534AA

BAR, draw, complete with roller and bolt. Prior to tractor No. 4803222, also used on tractors No. 4803393 to 4803413 inclusive, SC

1шт.

A2534AA

BAR, draw, complete with roller and bolt. Tractor No. 4803222 and after, except No. 4803393 to 4803413 inclusive for SC tractor also used on SO tractor (Replacing A2569AA) when power take-off with motor lift and raising ball is installed, SC, SO

1шт.

SCREW, 5/8" x 1-3/4" hexagon head cap, N.F. thread, SC, SO

1шт.

NUT, 5/8" hexagon, light, N.F. thread, SC, SO

1шт.

WASHER, 5/8" standard lock, SC, SO

1шт.

A2549AA

BRACE, platform, with gussets (Used on SO tractor when power take-off with motor light and raising bail is installed.), SC, SO

1шт.

SCREW, 1/2" x 1-1/2" hexagon head cap, N.C. thread, SC, SO

2шт.

WASHER, 1/2" standard lock, SC, SO

2шт.

2569AA

BAR, draw, complete with roller and bolt. Prior to tractor No. 4803222, also used on tractors No. 4803393 to 4803413 inclusive. See A2534AA, S, SO

1шт.

A2569AA

BAR, draw, complete with roller and bolt. Tractor No. 4803222 and after, except No. 4803393 to 4803413 inclusive, S, SO

1шт.

SCREW, 5/8" x 1-3/4" hexagon head cap, N.F. thread, S, SO

1шт.

NUT, 5/8" hexagon, light, N.F. thread, S, SO

1шт.

WASHER, 5/8" standard lock, S, SO

1шт.

2572AA

ANGLE, draw bar guide, with platform sills. Prior to tractor No. 4803222, also used on tractors No. 4803393 to 4803413 inclusive, SC

1шт.

A2572AA

ANGLE, draw bar guide, with supports and gussets, tractor No. 4803222 and after, except No. 4803393 to 4803413 inclusive for SC tractor, also used on SO tractor (Replacing A2573AA) when power take-off with motor lift and raising bail is installed, SC, SO

1шт.

2573AA

ANGLE, draw bar guide, with supports. Prior to tractor No. 4803222, also used on tractors No. 4803393 to 4803413 inclusive, S, SO

1шт.

A2573AA

ANGLE, draw bar guide, with supports and gussets. Tractors No. 4803222 and after except No. 4803393 to 4803413 inclusive. See A2572AA, S, SO

1шт.
