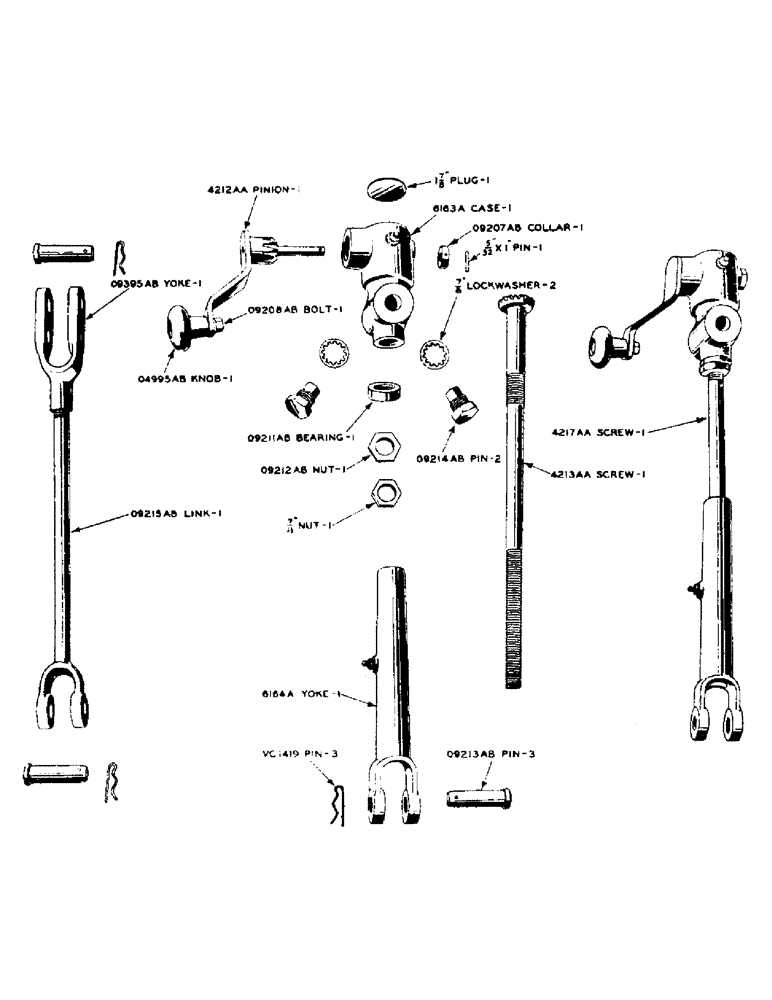

Запчасти Case IH SC-SERIES (130) - EAGLE HITCH LIFTING LINKS, S, SC, SC-4 (09) - CHASSIS

6163A

X

CASE - gear, leveling screw

1шт.

1/8" - 45 degree Lincoln fitting no. 5200

1шт.

1-7/8" WELCH PLUG

1шт.

6164A

YOKE - leveling screw

1шт.

1/8" - 45 degree Lincoln fitting no. 5200

1шт.

4212AA

X

PINION - level, with shaft and hand lever, less knob and bolt

1шт.

4213AA

SCREW - leveling, with gear (See 4560AA) (SC, SC-4)

1шт.

7/8" N.F. HEX. JAM NUT (SC, SC-4)

1шт.

4217AA

SCREW - leveling, complete, less knob and bolt (See 4561AA) (SC, SC-4)

1шт.

4560AA

SCREW - leveling, with gear (See 4213AA) (S)

1шт.

7/8" N.F. HEX. JAM NUT (S)

1шт.

4561AA

SCREW - leveling, complete, less knob and bolt (See 4217AA) (S)

1шт.

O4995AB

X

KNOB - hand lever

1шт.

O9207AB

X

COLLAR - pinion shaft

1шт.

5/32" X 1" TYPE 1 FULL LENGTH TAPERED GROOVE PIN

1шт.

O9208AB

X

BOLT - hand lever knob

1шт.

3/8" N.F. HEX. NUT

1шт.

3/8" STD. LOCKWASHER

1шт.

O9211AB

X

BEARING - leveling screw (Nice no. 4962)

1шт.

O9212AB

X

NUT - brass, leveling screw

1шт.

O9213AB

X

PIN - lifting rods

3шт.

O9214AB

X

PIN - leveling screw mounting

2шт.

7/8" SHAKEPROOF LOCKWASHER, internal tooth #1234

2шт.

O9215AB

LINK - lifting, draft arm, L.H. (See O9925AB) (SC, SC-4)

1шт.

3/4" N.C. HEX. JAM NUT (SC, SC-4)

1шт.

O9395AB

YOKE - L.H., draft arm lifting link

1шт.

O9925AB

LINK - lifting, draft arm, L.H. (See O9215AB) (S)

1шт.

3/4" N.C. hex. jam nut (S)

1шт.

VC1419

X

COTTER - hair pin, for O9213AB pin

3шт.
