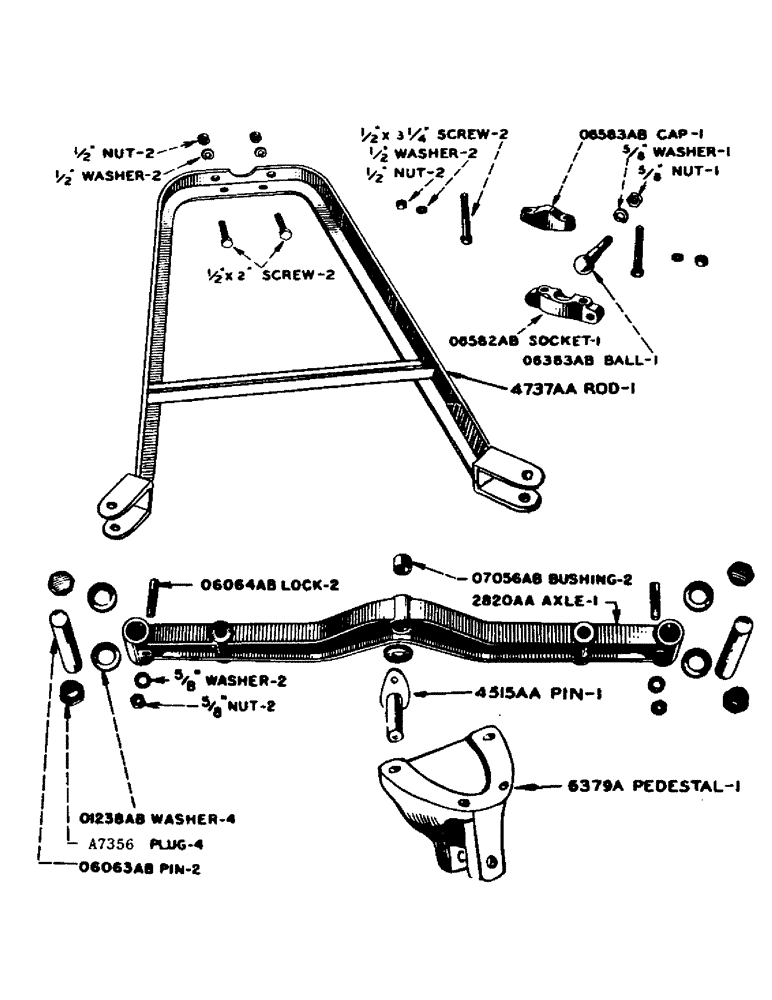

Запчасти Case IH SC-SERIES (094) - FRONT AXLE, FOR SC-4 TRACTOR (06) - POWER TRAIN

A7356

PLUG

- steering spindle

4шт.

6379A

PEDESTAL - front axle

1шт.

3/4" X 2-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

2820AA

AXLE - front, with pivot pin bushing

1шт.

4515AA

PIN - front axle pivot

1шт.

1/8" STR. LINCOLN FITTING NO. 5000

1шт.

1/2" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

1шт.

4737AA

ROD - radius, with ball socket

1шт.

5/8" X 5" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

O1238AB

WASHER - thrust, steering spindle

4шт.

O06063AB

PIN - king, front axle

2шт.

O6064AB

LOCK - front axle king pin

2шт.

5/8" N.F. HEX. NUT

2шт.

5/8" STD. LOCKWASHER

2шт.

O6383AB

BALL - radius rod pivot

1шт.

5/8" N.F. HEX. NUT

1шт.

5/8" STD. LOCKWASHER

1шт.

O6582AB

SOCKET - radius rod ball

1шт.

1/2" X 2" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

06583AB

CAP - radius rod ball socket

1шт.

1/2" X 3-1/4" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

O7056AB

X

BUSHING - front axle pivot pin

2шт.
