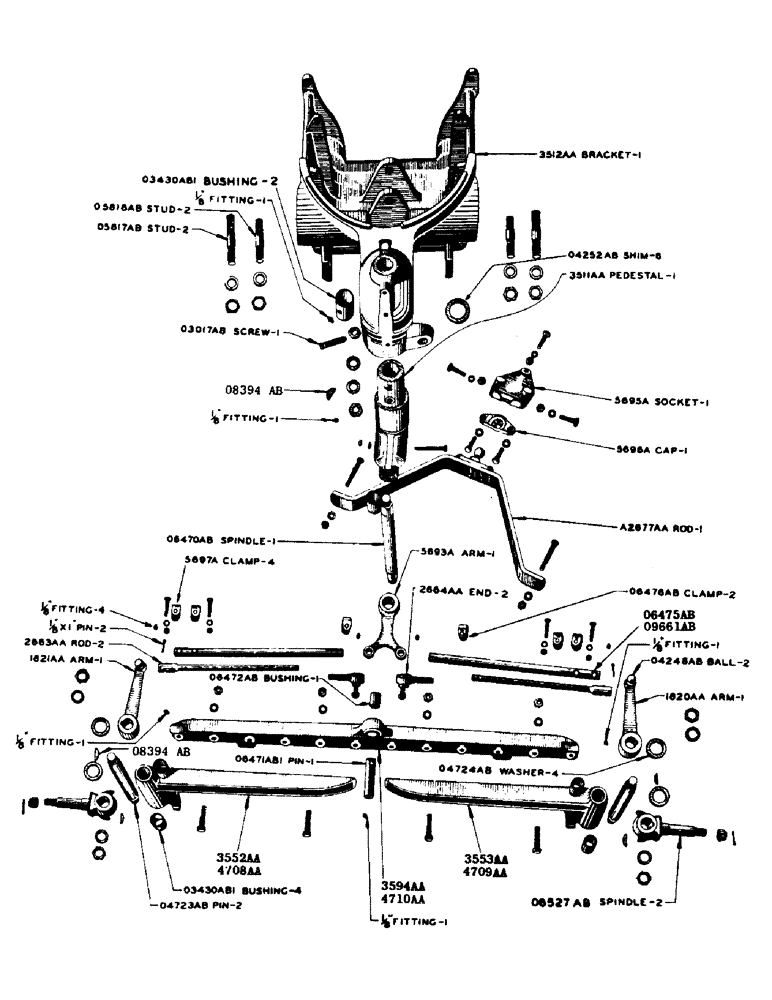

Запчасти Case IH SC-SERIES (084) - ADJUSTABLE FRONT AXLE, FOR SC TRACTOR (06) - POWER TRAIN

5338A

ARM - front wheel spindle, L.H. (Use 1820AA)

1шт.

5339A

ARM - front wheel spindle, R.H. (Use 1821AA)

1шт.

5638A

BRACKET - front axle and radiator (Use 3512AA)

1шт.

5640A

CLAMP - radiator bracket

2шт.

5688A

SECTION - front axle outer, R.H. (Use 3552AA)

1шт.

5689A

SECTION - front axle outer, L.H. (Use 3553AA)

1шт.

5690A

SECTION - front axle center (Use 3594AA)

1шт.

5691A

PEDESTAL - adjustable front axle (Use 3511AA)

1шт.

5693A

ARM - front axle steering spindle, lower

1шт.

5695A

SOCKET - radius rod ball

1шт.

BOLT - 5/8" x 2-1/2" machine, N.C. thread, with hex. nut and lockwasher

3шт.

5696A

CAP - radius rod ball socket

1шт.

SCREW - 5/8" x 2" hex. hd. cap, N.C. thread w/lockwasher

2шт.

5697A

X

CLAMP - front axle tie rod

4шт.

SCREW - 7/16" x 2" hex. hd. cap, N.F. thread w/nut and lockwasher

4шт.

6364A

SECTION - outer R.H. (Use 4708AA)

1шт.

6365A

SECTION - outer L.H. (Use 4709AA)

1шт.

6366A

SECTION - center (Use 4710AA)

1шт.

1820AA

ARM - front wheel spindle, L.H., with ball

1шт.

1821AA

ARM - front wheel spindle, R.H., with ball

1шт.

2528AA

ARM - steering spindle, with ball, upper

1шт.

A2677AA

ROD - front axle radius, with welded ball

1шт.

SCREW - 5/8" x 4" hex. hd. cap, N.F. thread w/nut and lockwasher

2шт.

3511AA

PEDESTAL - adjustable front axle, with bushing

1шт.

SCREW - 7/16" x 3" hex. hd. cap, N.F. thread w/nut and lockwasher

1шт.

FITTING - 1/8" straight Lincoln no. 5000

1шт.

3512AA

BRACKET - front axle and radiator, with bushing

1шт.

SCREW - 1/2" x 3/4" hex. hd. cap, N.C. thread

1шт.

3552AA

SECTION - outer, R.H., with bushings (For tread adjustment from 57" to 87") (See 4708AA)

1шт.

5/8" X 2-1/2" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

1/8" STR. LINCOLN FITTING NO. 5000

1шт.

3553AA

SECTION - outer, L.H., with bushings (For tread adjustment from 57" to 87") (See 4709AA)

1шт.

5/8" X 2-1/2" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

2шт.

1/8" STR. LINCOLN FITTING NO. 5000

1шт.

3594AA

SECTION - center, with pivot pin bushing (For tread adjustment from 57" to 87") (See 4710AA)

1шт.

4708AA

SECTION - outer, R.H., with bushings (For tread adjustment from 48" to 78") (See 3552AA)

1шт.

4709AA

SECTION - outer, L.H., with bushings (For tread adjustment from 48" to 78") (See 3553AA)

1шт.

4710AA

SECTION - center, with pivot pin bushing (For tread adjustment from 48" to 78") (See 3594AA)

1шт.

O3017AB

SCREW - set, front axle pedestal

1шт.

NUT - 5/8" hex. jam, N.C. thread

1шт.

O3430AB1

BUSHING - front axle king pin and steering spindle

6шт.

O4248AB

BALL - steering spindle arm and wheel spindle arms

3шт.

04252AB

SHIM - steering spindle adjusting (#30 gauge)

8шт.

O4723AB

PIN - king, front axle

2шт.

NUT - 1" hex. jam. light, N.F. thread w/lockwasher

4шт.

WASHER - 1" std. lock

4шт.

O4724AB

X

WASHER - thrust, front axle king pin

4шт.

O5817AB

STUD - radiator bracket clamp, long

2шт.

NUT - 3/4" hex. light, N.F. thread w/lockwasher

2шт.

WASHER - 3/4" std. lock

2шт.

O5818AB

X

STUD - radiator bracket clamp, short

2шт.

NUT - 3/4" hex. light, N.F. thread w/lockwasher

2шт.

WASHER - 3/4" std. lock

2шт.

O6470AB

SPINDLE - front axle steering

1шт.

NUT - 1" hex. jam, light, N.F. thread w/lockwasher and plain washer

2шт.

WASHER - 1" std. lock

2шт.

WASHER - 1" plain

2шт.

O6471AB1

PIN - front axle pivot

1шт.

FITTING - 1/8" straight Lincoln no. 5000

1шт.

O6472AB

X

BUSHING - front axle pivot pin

1шт.

O6475AB

TUBE - front axle tie rod (For tread adjustment from 57" to 87") (See O9661AB)

2шт.

O6476AB

X

CLAMP - front axle tie rod tube

2шт.

O8527AB

SPINDLE - front wheel

2шт.

NUT - 1" castellated, light, N.F. thread

2шт.

PIN - 1/8" x 1-1/2" cotter

2шт.

O8984AB

X

KEY - Woodruff, fastens upper and lower steering spindle arms to O6470AB steering spindle, and fastens wheel spindle and wheel spindle arms to O4723AB king pins

6шт.

O9661AB

TUBE - front axle tie rod (For tread adjustment from 48" to 78") (See O6475AB)

2шт.
