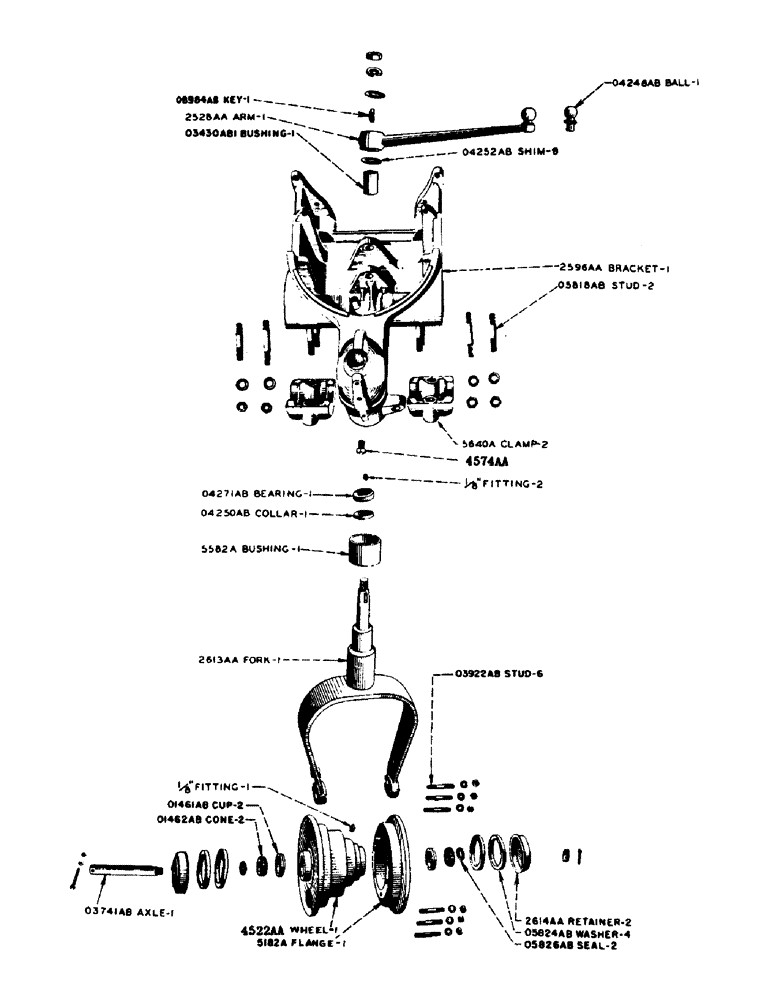

Запчасти Case IH SC-SERIES (082) - SINGLE FRONT WHEEL, FOR SC TRACTOR (06) - POWER TRAIN

5182A

FLANGE - front wheel (For wheel with 7.50-10 rubber tires)

1шт.

5582A

BUSHING - front wheel fork and radiator bracket, lower

1шт.

5638A

BRACKET - radiator (Use 3512AA and 5582A)

1шт.

5640A

CLAMP - radiator bracket

2шт.

5645A

FORK - front wheel (Use 2613AA)

1шт.

5646A

HUB (Use 4522AA)

1шт.

5647A

WHEEL - single front (Cast) (Use 2612AA)

1шт.

2528AA

ARM - steering spindle, with ball

1шт.

2611AA

WHEEL (Use 4522AA)

1шт.

2612AA

WHEEL - single front, with bearing cups (Cast wheel)

1шт.

FITTING - 1/8" straight Lincoln no. 5000

1шт.

2613AA

FORK - single front wheel, with steering spindle

1шт.

NUT - 1" hex. jam, light, N.F. thread

1шт.

WASHER - 1" std. lock

1шт.

WASHER - 1" plain

1шт.

2614AA

RETAINER - felt, with lock

2шт.

3512AA

BRACKET - radiator, with bushing

1шт.

FITTING - 1/8" straight Lincoln, no. 5000

1шт.

4522AA

HUB - single front wheel, with 2-O1461AB cups, 6-O3922AB studs, 6-1/2" N.F. hex. nuts and 6-1/2" std. lockwashers (For 7.50-10 6 ply rubber tires)

1шт.

1/8" STR. LINCOLN FITTING NO. 5000

1шт.

4574AA

LOCK SCREW - radiator bracket lower bushing, with 1-5/16" #5031 Lincoln drive type straight fitting

1шт.

1/2" N.C. HEX. JAM NUT

1шт.

O1461AB

X

CUP - bearing, front wheel (Timken no. 14274)

2шт.

O1462AB

X

CONE - bearing, front wheel (Timken no. 14125)

2шт.

O3430AB1

BUSHING - radiator bracket, upper

1шт.

O3741AB

AXLE - single front wheel

1шт.

NUT - 1" slotted shear, light, N.F. thread

1шт.

PIN - 1/8" x 1-3/4" cotter

1шт.

SCREW - 3/8" x 3-1/4" hex. hd. cap, N.F. thread

1шт.

NUT - 3/8" light, N.F. thread

1шт.

WASHER - 3/8" std. lock

1шт.

O3922AB

STUD - single front rubber tire wheel

6шт.

NUT - 1/2" hex. light, N.F. thread

6шт.

WASHER - 1/2" std. lock

6шт.

O4248AB

BALL - steering arm

1шт.

O4250AB

COLLAR - steering spindle bearing

1шт.

O4252AB

SHIM - steering spindle adjusting

8шт.

O4271AB

X

BEARING - thrust, steerin spindle (Timken no. T-139)

1шт.

O5817AB

STUD - radiator bracket clamp, long

2шт.

NUT - 3/4" hex. light, N.F. thread

2шт.

WASHER - 3/4" std. lock

2шт.

O5818AB

X

STUD - radiator bracket clamp, short

2шт.

NUT - 3/4" hex. light, N.F. thread

2шт.

WASHER - 3/4" std. lock

2шт.

O5824AB

FELT

WASHER - felt, front wheel hub

4шт.

O5826AB

SEAL

- single front wheel axle shaft

2шт.

O8984AB

X

KEY - Woodruff, upper end steering spindle for steering arm

1шт.

O9560AB

LOCK SCREW (Use 4574AA)

1шт.
