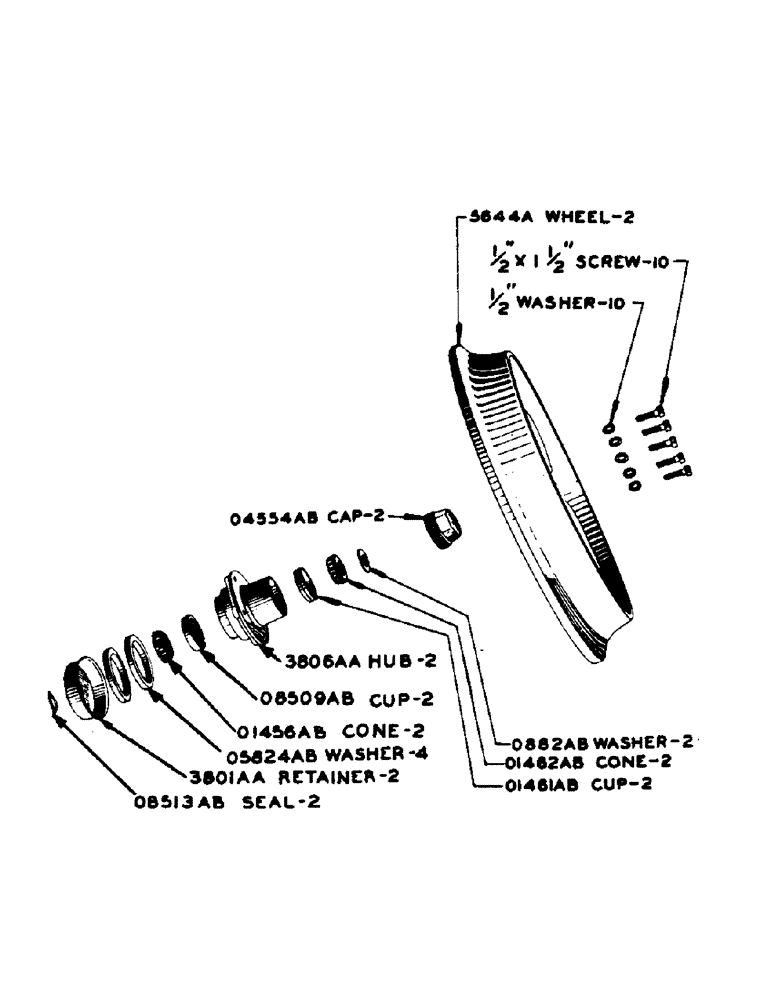

Запчасти Case IH SC-SERIES (080) - DUAL FRONT WHEEL, SC (06) - POWER TRAIN

5643A

HUB - front wheel (Use 3806AA)

1шт.

5644A

WHEEL - front cast

2шт.

SCREW - 1/2" x 1-1/2" hex. hd. cap, N.F. thread

10шт.

WASHER - 1/2" std. lock

10шт.

3801AA

X

RETAINER - hub felt, with lock

2шт.

3806AA

HUB - front wheel, with O1461AB and O8509AB bearing cups

2шт.

O882AB

WASHER - front wheel spindle

2шт.

O1456AB

CONE

- front wheel inner bearing (Timken no. 2788)

2шт.

O1461AB

X

CUP - front wheel outer bearing (Timken no. 14274)

2шт.

O1462AB

X

CONE - front wheel outer bearing (Timken no. 14125)

2шт.

O4554AB

CAP - front wheel hub

2шт.

O5824AB

FELT

WASHER - felt, front wheel hub

4шт.

O8509AB

X

CUP - front wheel inner bearing (Timken no. 2726)

2шт.

O8513AB

X

SEAL - front wheel hub felt retainer

2шт.
