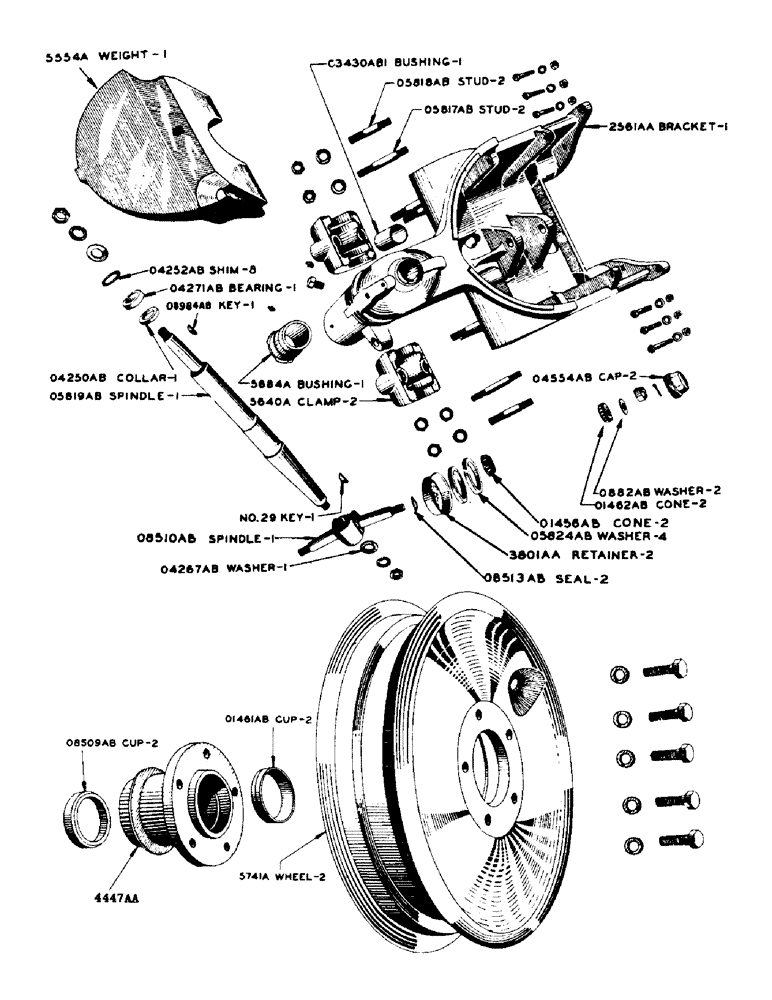

Запчасти Case IH SC-SERIES (078) - DUAL FRONT WHEEL AND SPINDLE, FOR SC TRACTOR (06) - POWER TRAIN

5554A

WEIGHT - radiator bracket

1шт.

5637A

BRACKET - front wheel and radiator (Use 2561AA)

1шт.

5640A

CLAMP - front wheel bracket

2шт.

5684A

BUSHING - upright steering spindle, lower

1шт.

2528AA

ARM - steering sprindle, with ball

1шт.

2561AA

BRACKET - radiator, with bushings, studs and 1-5/8" x 3/4" N.C., hex. head cap screw

1шт.

FITTING - 1/8 str. Lincoln no. 5000

2шт.

SCREW - 1/2" x 2" hex. hd. cap, N.F. thread

5шт.

SCREW - 1/2" x 2-3/4 hex. hd. cap, N.F. thread

1шт.

NUT - 1/2" hex. light, N.F. thread

6шт.

WASHER - 1/2" std. lock

6шт.

O3430AB1

BUSHING - upright steering spindle, upper

1шт.

O4248AB

BALL - steering arm

1шт.

O4250AB

COLLAR - steering spindle hearing

1шт.

O4252AB

SHIM - adjusting, steering spindle

8шт.

O4267AB

WASHER - steering spindle, lower

1шт.

O4271AB

X

BEARING - thrust, steering spindle (Timken no. T-139)

1шт.

O5817AB

STUD - front wheel bracket clamp, long

2шт.

NUT - 3/4" hex., light, N.F. thread

2шт.

WASHER - 3/4" std. lock

2шт.

O5818AB

X

STUD - front wheel bracket clamp short

2шт.

NUT - 3/4" hex., light, N.F. thread

2шт.

WASHER - 3/4" std. lock

2шт.

O5819AB

SPINDLE - steering (Use O5819AB1)

1шт.

O5819AB1

SPINDLE - steering (30-15/16" long) (Replaces O5819AB which was 29-13/16" long)

1шт.

NO. 29 WOODRUFF KEY

1шт.

1" HEX. JAM NUT, light, N.F. thrd.

2шт.

1" STD. LOCKWASHER

2шт.

1" PLAIN WASHER

1шт.

O8510AB

SPINDLE - front wheel

1шт.

NUT - 1" castellated, light, N.F. thread

2шт.

PIN - 1/8" x 1-1/2" cotter

2шт.

O8984AB

X

KEY - steering spindle, upper (Woodruff #129) DUAL FRONT WHEEL FOR "SC" TRACTOR

1шт.

5642A

HUB - front wheel (Use 4447AA) DUAL FRONT SPINDLE FOR "SC" TRACTOR

1шт.

5741A

WHEEL - front, less hub, for 5.00 x 15 tire (See 6353A) DUAL FRONT SPINDLE FOR "SC" TRACTOR

2шт.

1/2" X 1-1/2" N.F. HEX. HD. CAP SCREW W/LOCKWASHER DUAL FRONT WHEEL SPINDLE FOR "SC" TRACTOR

10шт.

6253A

HUB - front wheel (Use 4447AA) DUAL FRONT SPINDLE FOR "SC" TRACTOR

1шт.

6353A

WHEEL - front, less hub, for 5.50 x 16 tire (See 5741A) DUAL FRONT SPINDLE FOR "SC" TRACTOR

2шт.

1/2" X 1-1/2" N.F. HEX. HD. CAP SCREW W/LOCKWASHER DUAL FRONT WHEEL SPINDLE FOR "SC" TRACTOR

10шт.

3801AA

X

RETAINER - felt, front wheel hub DUAL FRONT SPINDLE FOR "SC" TRACTOR

2шт.

3812AA

HUB - with cups (Use 4447AA) DUAL FRONT WHEEL SPINDLE FOR "SC" TRACTOR

2шт.

4447AA

HUB - front wheel, with bearing cups. (Consists of 1-6253A, 1- O1461AB, and 1-O8509AB) DUAL SPINDLE FOR "SC" TRACTOR

2шт.

O882AB

WASHER - front wheel spindle DUAL FOR "SC" TRACTOR

2шт.

O1456AB

CONE

- front wheel hub inner bearing (Timken no. 2788) DUALSPINDLE FOR "SC" TRACTOR

2шт.

O1461AB

X

CUP - front wheel hub outer bearing (Timken no. 14274) DUAL SPINDLE FOR "SC" TRACTOR

2шт.

O1462AB

X

CONE - front wheel hub outer bearing (Timken no. 14125) DUAL SPINDLE FOR "SC" TRACTOR

2шт.

O4554AB

CAP - front wheel hub DUAL SPINDLE FOR "SC" TRACTOR

2шт.

O5824AB

FELT

WASHER - felt, front wheel hub DUAL SPINDLE FOR "SC" TRACTOR

4шт.

O8509AB

X

CUP - front wheel hub inner bearing (Timken no. 2726) DUAL SPINDLE FOR "SC" TRACTOR

2шт.

O8513AB

X

SEAL - hub felt retainer DUAL FRONT WHEEL SPINDLE FOR "SC" TRACTOR

2шт.
