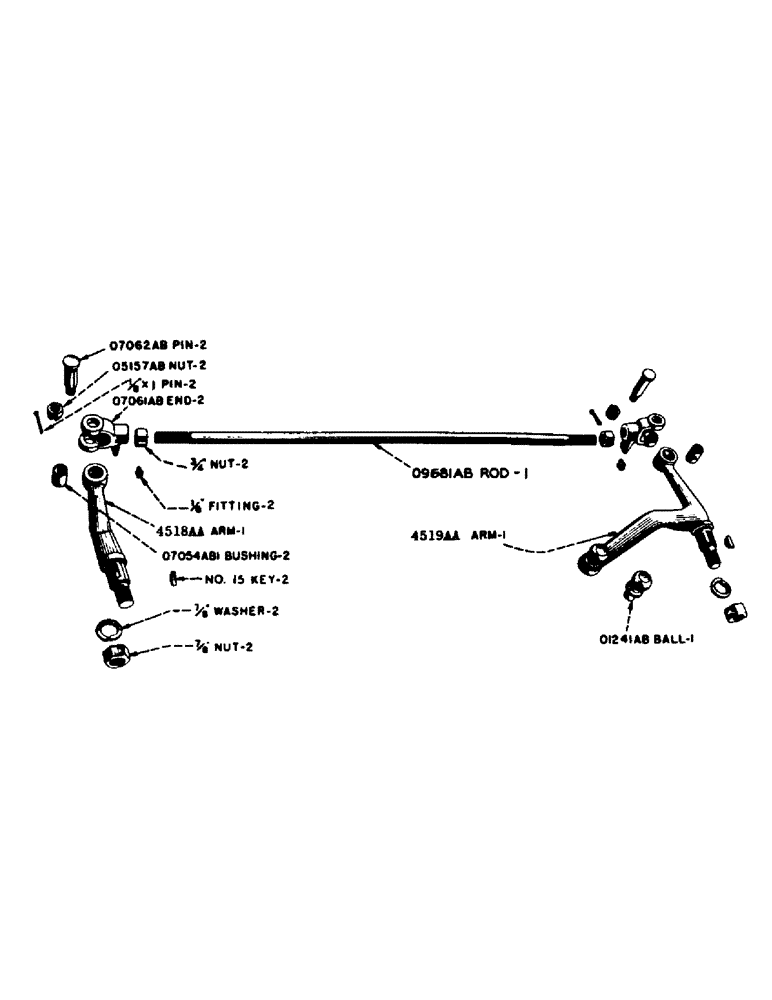

Запчасти Case IH SC-SERIES (096) - STEERING ARMS AND TIE ROD, FOR SC-4 TRACTOR (05) - STEERING

4518AA

ARM - steering spindle, with bushing, R.H.

1шт.

1/8" STR. LINCOLN FITTING NO. 5000

1шт.

NO. 15 WOODRUFF KEY

1шт.

7/8" N.F. HEX. NUT

1шт.

7/8" STD. LOCKWASHER

1шт.

4519AA

ARM - steering spindle, with bushing and ball, L.H.

1шт.

1/8" STR. LINCOLN FITTING NO. 5000

1шт.

NO. 15 WOODRUFF KEY

1шт.

7/8" N.F. HEX. NUT

1шт.

7/8" STD. LOCKWASHER

1шт.

O1241AB

BALL - L.H. steering spindle arm (4519AA)

1шт.

O5157AB

NUT - tie rod yoke end pin

2шт.

O7054AB1

X

BUSHING - steering spindle arms

2шт.

O7061AB

YOKE END - tie rod

2шт.

O7062AB

PIN - tie rod yoke end

2шт.

1/8" X 1" COTTER PIN

2шт.

O9681AB

TIE ROD - front axle

1шт.

3/4" N.F. HEX. NUT

2шт.
