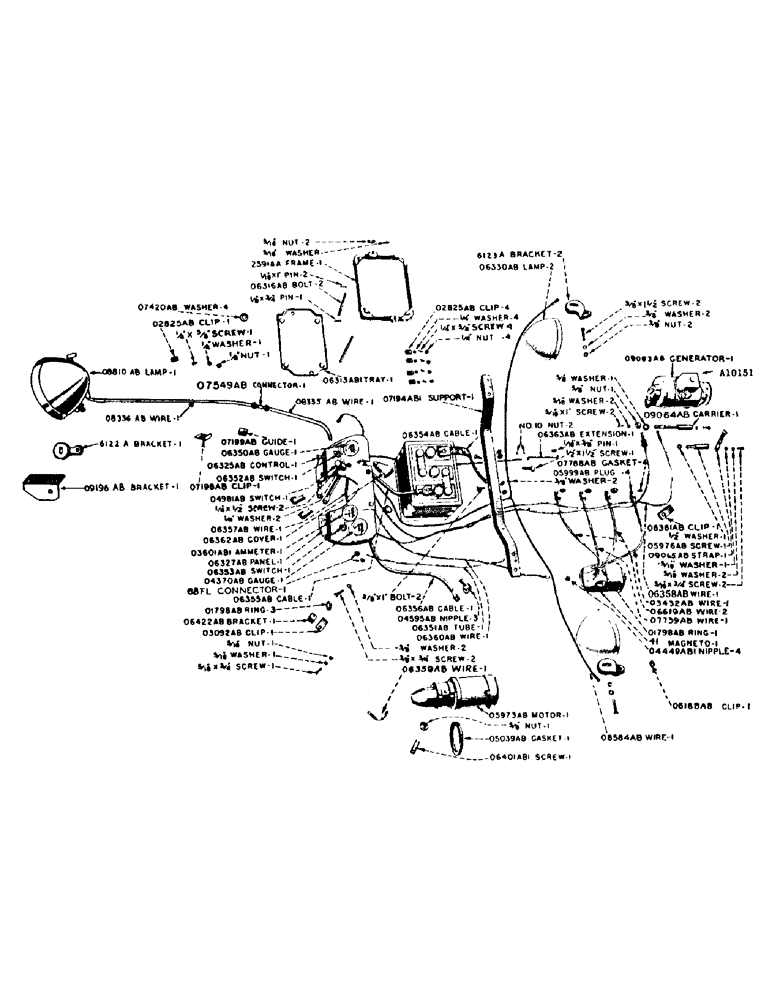

Запчасти Case IH SC-SERIES (030) - ELECTRIC, LIGHTING AND STARTING PARTS, S, SC, SO (04) - ELECTRICAL SYSTEMS

O3601AB1

X

AMMETER

1шт.

O5976AB

SCREW - water pump body, holds generator belt adjusting strap

1шт.

O6168AB

CLIP - generator wire, fastens to water pump body

2шт.

O6344AB

BELT

Fan and generator

1шт.

O6357AB

WIRE - starting, Serial Range: switch-ammeter

1шт.

O6358AB

WIRE -, Serial Range: generator-ammeter

1шт.

O6359AB

WIRE - ammeter to light switch

1шт.

O9063AB

GENERATOR - (Auto - Lite no. GHD6001C) (See note)

1шт.

SCREW - 5/16" x 1" hex. hd. cap, N.C. thread

2шт.

WASHER - 5/16" std. lock

2шт.

O9064AB

CARRIER - generator

1шт.

NUT - 5/8" hex. light, N.F. thread

1шт.

WASHER - 5/8" std. lock

1шт.

O9065AB

STRAP - generator belt adjusting

1шт.

SCREW - 5/16" x 3/4" hex. hd. cap, N.C. thread

2шт.

WASHER - 5/16" standard lock

1шт.

WASHER - 5/16" plain

1шт.

A1015

REGULATOR - voltage, for O10748AB generator (Electric Auto-Lite VRR-4104A)

1шт.

O1798AB

RING - cable STARTING MOTOR

3шт.

O3092AB

CLIP - starting cable MOTOR

1шт.

SCREW - 5/16" x 3/4" hex. hd. cap N.F. thread STARTING MOTOR

1шт.

NUT - 5/16" hex., light, N.F. thread STARTING MOTOR

1шт.

WASHER - 5/16" std. lock STARTING MOTOR

1шт.

A21753

CAP

NIPPLE - starting terminal MOTOR

3шт.

O4981AB

SWITCH

- starting MOTOR

1шт.

SCREW - 1/4" x 1/2" rhd. mach., N.C. thread STARTING MOTOR

2шт.

NUT - 1/4" hex., light, N.C. thread STARTING MOTOR

2шт.

WASHER - 1/4" std. lock STARTING MOTOR

2шт.

O5039AB

GASKET

- starting motor

1шт.

O5973AB

MOTOR - starting Auto-Lite no. MZ-4095) (See note)

1шт.

O6355AB

X

CABLE - battery to starting switch MOTOR

1шт.

O6356AB

CABLE - starting switch to starting motor

1шт.

O6357AB

WIRE - starting switch to ammeter MOTOR

1шт.

O6401AB1

SCREW - lock, starting motor

1шт.

NUT - 5/8" hex., jam, N.C. thread STARTING MOTOR

1шт.

O6422AB

BRACKET - starting cable and clip MOTOR

1шт.

BATTERY - storage, 15 plate - 6 volts

1шт.

2591AA

FRAME - battery clamping, with corner brackets

1шт.

O6313AB1

TRAY - battery

1шт.

O6316AB

BOLT - battery clamping frame

2шт.

NUT - 5/16" wing, cadmium plated, N.C. thread

2шт.

PIN - 1/16" x 1" cotter

2шт.

PIN - 1/8" x 3/4" cotter

1шт.

WASHER - 5/16" plain BATTERY

3шт.

O6354AB

X

CABLE - battery ground

1шт.

SCREW - 1/2" x 1-1/2" hex. hd. cap, N.C. thread BATTERY

1шт.

O6355AB

X

CABLE - battery to starting switch

1шт.

O6362AB

X

COVER - battery positive terminal

1шт.

O7420AB

X

WASHER - rubber, for battery

4шт.

O3092AB

CLIP - fuel tube and magneto ground wire, oil pressure and temp. gauge tubes INSTRUMENT PANEL

2шт.

SCREW - 5/16" x 3/4" hex. hd. cap, N.F. thread INSTRUMENT PANEL

1шт.

NUT - 5/16" hex., light, N.F. thread INSTRUMENT PANEL

1шт.

WASHER - 5/16" std. lock INSTRUMENT PANEL

1шт.

O3601AB1

X

AMMETER INSTRUMENT PANEL

1шт.

O4370AB

X

GAUGE - oil pressure (Regular) (See O7732AB) INSTRUMENT PANEL

1шт.

COUPLING - female, Imperial Flex #66FL, 3/16" tube size x 1/8" P.T. INSTRUMENT PANEL

1шт.

SLEEVE - rubber, #60FL, 3/16", for #66FL INSTRUMENT PANEL

1шт.

NUT - #61FL, 3/16", for #66FL INSTRUMENT PANEL

1шт.

O4803AB

CONTROL - flexible choke (Tractor no. 8027115 and after) (Replaces O6325AB and O6363AB) INSTRUMENT PANEL

1шт.

O4981AB

SWITCH

- starting INSTRUMENT PANEL

1шт.

SCREW - 1/4" x 1/2" rhd. mach., N.C. thread INSTRUMENT PANEL

2шт.

NUT - 1/4" hex., N.C. thread INSTRUMENT PANEL

2шт.

WASHER - 1/4" std. lock INSTRUMENT PANEL

2шт.

O6325AB

CONTROL - flexible choke INSTRUMENT PANEL

1шт.

NUT - #10-32 machine screw, N.F. thread INSTRUMENT PANEL

2шт.

NUT - 3/8" hex. jam, light, N.F. thread INSTRUMENT PANEL

1шт.

WASHER - 3/8" std. lock INSTRUMENT PANEL

1шт.

O6327AB

PANEL - instrument

1шт.

SCREW - 3/8" x 3/4" hex. hd. cap, N.C. thread INSTRUMENT PANEL

2шт.

WASHER - 3/8" std. lock INSTRUMENT PANEL

2шт.

O6350AB

GAUGE

- temperature (Fahrenheit) (See O7736AB) INSTRUMENT PANEL

1шт.

O6351AB

TUBE - oil pressure gauge INSTRUMENT PANEL

1шт.

CONNECTOR - Imperial Flex. #68FL, 3/16" tube size x 1/8" pipe thrd. INSTRUMENT PANEL

1шт.

O6352AB

SWITCH

- magneto INSTRUMENT PANEL

1шт.

O6353AB

SWITCH

- light INSTRUMENT PANEL

1шт.

O6361AB

CLIP - temperatrure gauge tube INSTRUMENT PANEL

1шт.

O6363AB

EXTENSION - choke control INSTRUMENT PANEL

1шт.

PIN - 1/16" x 3/8" cotter INSTRUMENT PANEL

1шт.

O7295AB

WIRE - magneto to magneto switch INSTRUMENT PANEL

1шт.

O7348AB

SPACER - instrument panel and fuel tank support (Tractor no. 8037655 and after)

2шт.

1/2" X 2-1/4" N.C. HEX. HD. CAP SCREW INSTRUMENT PANEL

2шт.

O7732AB

GAUGE - oil pressure (Metric - for export only) (See O4370AB) INSTRUMENT PANEL

1шт.

07736AB

GAUGE - temperature (Centigrade - for export) (See O6350AB) INSTRUMENT PANEL

1шт.

6122A

X

BRACKET - lamp, front and rear (S)

3шт.

SCREW - 5/16" x 1-1/2" hex. hd. cap, N.F. thread (S) LAMPS

3шт.

NUT - 5/16" hex., light, N.F. thread (S) LAMPS

3шт.

WASHER - 5/16" std. lock (S) LAMPS

3шт.

6122A

X

BRACKET - lamp, rear (SC)

1шт.

SCREW - 5/16" x 1-1/2" hex. hd. cap, N.F. thread (SC) LAMPS

1шт.

NUT - 5/16" hex., light, N.F. thread (SC) LAMPS

1шт.

WASHER - 5/16" std. lock (SC) LAMPS

1шт.

6122A

X

BRACKET - lamp, front (SO)

2шт.

SCREW - 5/16" x 1-1/2" hex. hd. cap, N.F. thread (SO) LAMPS

2шт.

NUT - 5/16" hex., light, N.F. thread (SO) LAMPS

2шт.

WASHER - 5/16" std. lock (SO) LAMPS

2шт.

6123A

X

BRACKET - lamp, front (SC)

2шт.

SCREW - 3/8" x 1-1/2" hex. hd. cap, N.F. thread (SC) LAMPS

2шт.

NUT - 3/8" hex., light, N.F. thread (SC) LAMPS

2шт.

WASHER - 3/8" std. lock (SC) LAMPS

2шт.

6123A

X

BRACKET - lamp, rear (SO)

1шт.

SCREW - 3/8" x 1-3/4" hex. hd. cap, N.F. thread (SO) LAMPS

1шт.

NUT - 3/8" hex., light, N.F. thread (SO) LAMPS

1шт.

WASHER - 3/8" std. lock (SO) LAMPS

1шт.

O2457AB

CLIP - rear lamp wire (Fastens to top cover and seat support) (S, SC)

3шт.

O2825AB

X

CLIP - front lamp wire (SC)

4шт.

SCREW - 1/4" x 5/8" rhd. mach., N.C. thread (SC) LAMPS

4шт.

NUT - 1/4" hex., N.C. thread (SC) LAMPS

4шт.

WASHER - 1/4" std. lock (SC) LAMPS

4шт.

O2825AB

X

CLIP - rear lamp wire (S, SC)

1шт.

SCREW - 1/4" x 5/8" rhd. mach., N.C. thread (S, SC) LAMPS

1шт.

NUT - 1/4" hex., N.C. thread (S, SC) LAMPS

1шт.

WASHER - 1/4" std. lock (S, SC) LAMPS

1шт.

O3093AB

CLIP - rear lamp wire (SO)

1шт.

O6168AB

CLIP - front lamp wire on water pump (S, SO)

2шт.

O6168AB

CLIP - front lamp wire on water pump (SC)

1шт.

O6182AB

CLIP - head lamp wire, on radiator side member (S, SO)

2шт.

SCREW - 1/4" x 1/2" truss hd. machine, N.C. thread (S, SO) LAMPS

2шт.

NUT - 1/4" hex., N.C. thread (S, SO) LAMPS

2шт.

O6330AB

LAMP - tractor, front (Use O9642AB or O9668AB)

1шт.

O6353AB

SWITCH

- light LAMPS

1шт.

O6359AB

WIRE - light switch to ammeter LAMPS

1шт.

O6584AB

WIRE - head lamp (SC)

1шт.

O6754AB1

WIRE - rear lamp, O7549AB connector to rear lamp (See O8336AB) (SO)

1шт.

O7194AB1

SUPPORT - front lamp bracket (SC)

1шт.

O7198AB

CLIP - rear lamp wire (S, SC)

1шт.

O7199AB

GUIDE - rear lamp wire (S, SC)

1шт.

O7408AB

LOOM - rear lamp wire (SO)

1шт.

O7549AB

CONNECTOR - two wire line, for rear lamp

1шт.

O8332AB

X

GROMMET - no. 230 rubber, for fender (3/8" hole) LAMPS

1шт.

O8335AB

X

WIRE - rear lamp, dash to O7549AB connector

1шт.

O8336AB

WIRE - rear lamp, O7549AB connector to rear lamp (See O6754AB1) (S, SC)

1шт.

O8810AB

LAMP

- combination flood and tail

1шт.

O8817AB

CLIP - rear lamp wire (SO)

1шт.

O8909AB

WIRE - head lamp (S, SO)

1шт.

O8924AB

WASHER - head lamp bracket reinforcement (SO)

2шт.

O8963AB

CLIP - rear lamp wire (Fastens to transmission case top cover) (SO)

2шт.

O9196AB

BRACKET - tail lamp (S, SC)

1шт.

SCREW - 1/4" x 5/8" rhd. mach., N.C. thread (S, SC) LAMPS

2шт.

NUT - 1/4" hex. N.C. thread (S, SC) LAMPS

2шт.

WASHER - 1/4" std. lock (S, SC) LAMPS

2шт.

O9642AB

LAMP - head, vertical mounting (Sealed beam) (Replaces O6330AB) (SC)

2шт.

O9668AB

LAMP - head, horizontal mounting (Sealed beam) (Replaces O6330AB) (S, SO)

2шт.
