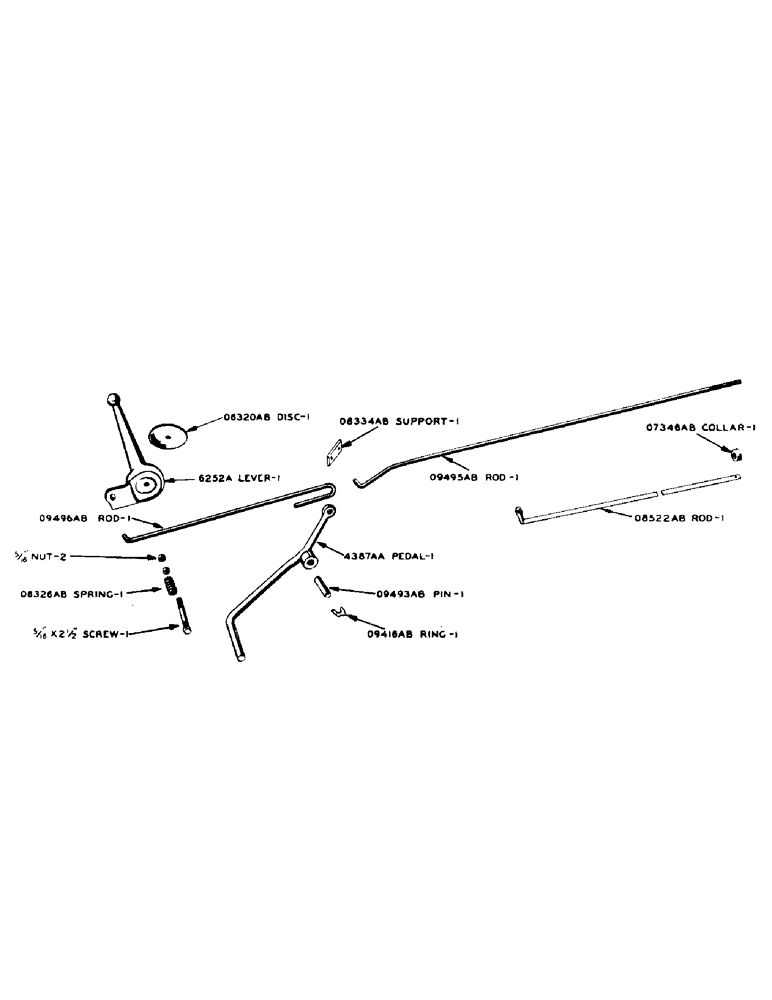

Запчасти Case IH SC-SERIES (029) - FOOT THROTTLE CONTROL, FOR S AND SC, TRACTORS S/N 8027115 AND AFTER (03) - FUEL SYSTEM

6252A

LEVER - throttle

1шт.

5/16" X 2-1/2" N.F. HEX. HD. CAP SCREW W/DBL. HEX. NUT

1шт.

4387AA

PEDAL - foot throttle

1шт.

O6320AB

X

DISC - friction, throttle lever

1шт.

O6326AB

X

SPRING - throttle lever

1шт.

O7346AB

COLLAR - throttle rod stop

1шт.

1/4" X 3/8" CUP POINT SET SCREW

1шт.

O8334AB

SUPPORT - throttle rear rod

1шт.

1/4" X 5/8" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

O8522AB

ROD - throttle control, front

1шт.

O9416AB

X

SNAP RING - foot throttle mounting pin

1шт.

O9493AB

PIN - foot throttle mounting

1шт.

O9495AB

ROD - throttle, center section

1шт.

5/16" STD. LOCKWASHER

2шт.

5/16" N.C. HEX. NUT

2шт.

3/32" X 5/8" COTTER PIN

1шт.

O9496AB

ROD - throttle control, rear

1шт.

3/32" X 5/8" COTTER PIN

1шт.

5/16" PLAIN WASHER

1шт.
