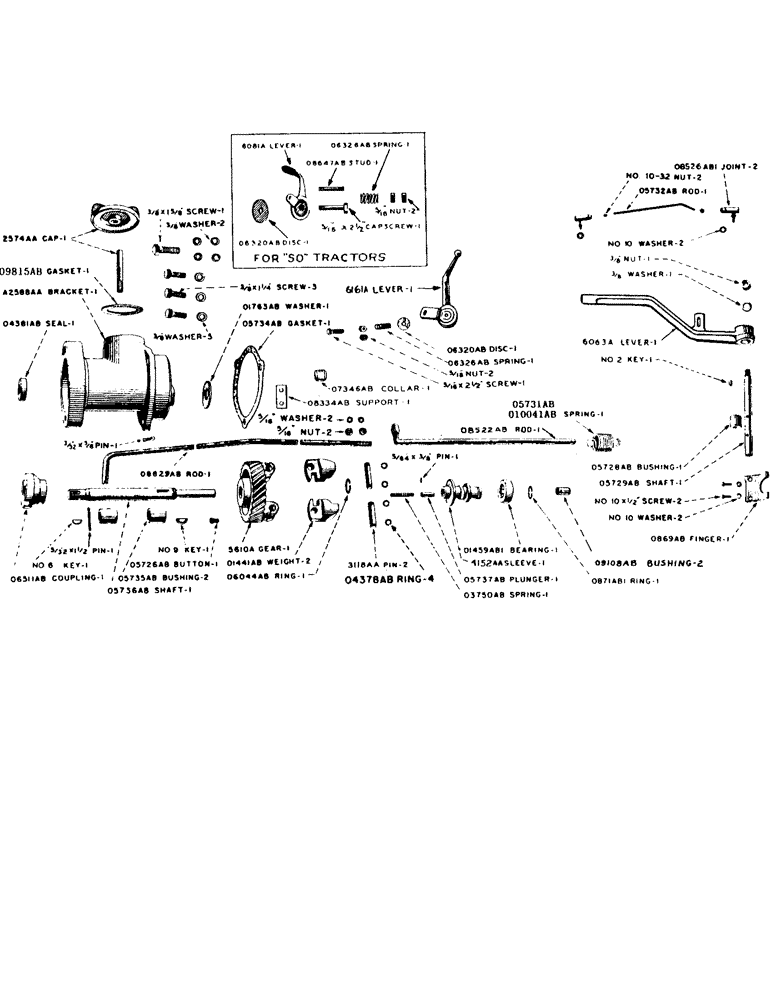

Запчасти Case IH SC-SERIES (026) - GOVERNOR AND THROTTLE CONTROL PARTS, S, SC, SO (03) - FUEL SYSTEM

5610A

GEAR - governor

1шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

5614A

CAP - oil filler (Use 2574AA)

1шт.

6063A

LEVER - governor

1шт.

PIN - 3/16" x 1-1/4" cotter

1шт.

2574AA

CAP - oil filler, with stud

1шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

A2587AA

GOVERNOR ASSEMBLY

1шт.

3118AA

PIN - governor weight, with snap ring

2шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

4152AA

X

SLEEVE - governor, with bushings

1шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

O869AB

FINGER - governor

1шт.

SCREW - no. 10-32 x 1/2" round head machine, N.F. thread

2шт.

WASHER - no. 10 std. lock

2шт.

O871AB1

SNAP RING - governor thrust bearing

1шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

O1441AB

X

WEIGHT - governor

2шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

O1459AB1

X

BEARING - thrust, governor shaft (Nice no. 6071)

1шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

O1763AB

WASHER - thrust, governor gear

1шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

O3750AB

SPRING - thrust, governor shaft

1шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

O4378AB

SNAP RING - governor weight pin

4шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

O4381AB

OIL SEAL - governor shaft

1шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

O5726AB

BUTTON - thrust, governor shaft

1шт.

O5728AB

BUSHING - governor lever shaft

1шт.

O5729AB

SHAFT - governor lever

1шт.

KEY - no. 2 Woodruff

1шт.

NUT - 3/8" hex., light, N.F. thread

1шт.

WASHER - 3/8" std. lock

1шт.

O5731AB

SPRING

- governor (Before tractor no. 8027115) (See O10041AB)

1шт.

O5732AB

ROD - governor, Serial Range: lever-carburetor

1шт.

NUT - no. 10-32 machine screw, light, N.F. thread

2шт.

O5736AB

SHAFT - governor

1шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

KEY - no. 6 Woodruff

1шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

KEY - no. 9 Woodruff

1шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

PIN - 5/32" x 1-1/2" type 1 groove

1шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

O5737AB

PLUNGER - thrust, governor shaft

1шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

PIN - 5/64" x 3/8" type 5 groove

1шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

O6044AB

X

SNAP RING - governor shaft

1шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

O6488AB

THIMBLE - to install O4381AB oil seal

1шт.

O8526AB1

X

JOINT - ball, governor, Serial Range: lever-carburetor

2шт.

WASHER - no. 10 std. lock

2шт.

O9108AB

BUSHING - governor sleeve (4152AA)

2шт.

O9815AB

X

GASKET - oil filler cap

1шт.

Part of Governor Assembly plus A2588AA magneto bracket and O6511AB magneto coupling

1шт.

O10041AB

SPRING - governor (Tractor no. 8027115 and after) (See O5731AB)

1шт.

6081A

LEVER - throttle (SO) CONTROL

1шт.

6161A

LEVER - throttle (S, SC) CONTROL

1шт.

SCREW - 5/16" x 2-1/2" hex. hd. cap, N.F. thread (S, SC) THROTTLE CONTROL

1шт.

NUT, 5/16" hex., light, N.F. thread (S, SC) THROTTLE CONTROL

2шт.

O6320AB

X

DISC - friction throttle lever CONTROL

1шт.

O6326AB

X

SPRING - throttle lever CONTROL

1шт.

O7346AB

COLLAR - throttle rod stop CONTROL

1шт.

SCREW - 1/4" x 3/8" cup point set THROTTLE CONTROL

1шт.

O8334AB

SUPPORT - throttle rear rod CONTROL

1шт.

SCREW - 1/4" x 5/8" hex. hd. cap, N.F. thread THROTTLE CONTROL

1шт.

NUT - 1/4" hex., light, N.F. thread THROTTLE CONTROL

1шт.

WASHER - 1/4" std. lock THROTTLE CONTROL

1шт.

O8522AB

ROD - throttle control, front

1шт.

O8629AB

ROD - throttle control, rear (S, SC)

1шт.

PIN - 3/32" x 5/8" cotter (S, SC) THROTTLE CONTROL

1шт.

NUT - 5/16" hex. N.C. thread (S, SC) THROTTLE CONTROL

2шт.

WASHER - 5/16" std. lock (S, SC) THROTTLE CONTROL

2шт.

WASHER - 5/16" plain (S, SC) THROTTLE CONTROL

1шт.

O8647AB

STUD - throttle lever (SO) CONTROL

1шт.

NUT - 5/16" hex., light, N.F. thread (SO) THROTTLE CONTROL

2шт.

O8679AB

ROD - throttle control, rear (SO)

1шт.

PIN - 3/32" x 5/8" cotter (SO) THROTTLE CONTROL

1шт.

NUT - 5/16" hex., N.C. thread (SO) THROTTLE CONTROL

2шт.

WASHER - 5/16" std. lock (SO) THROTTLE CONTROL

2шт.

WASHER - 5/16" plain (SO) THROTTLE CONTROL

1шт.
