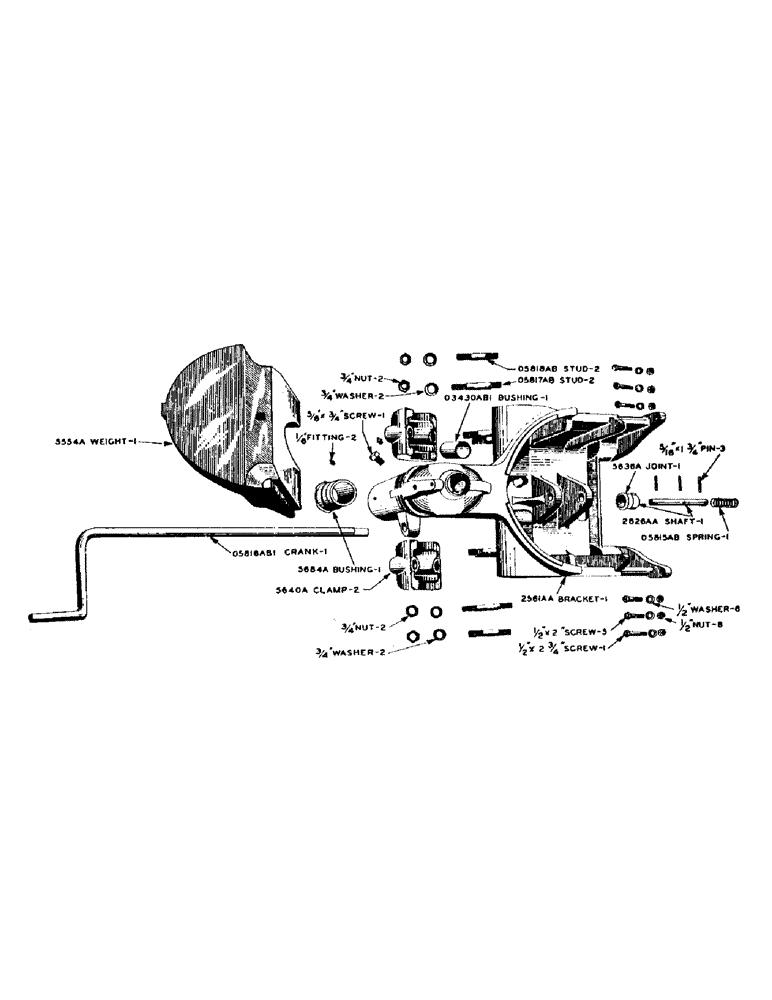

Запчасти Case IH SC-SERIES (041) - STARTING CRANK AND RADIATOR BRACKET, FOR SC 3 TRACTOR (02) - ENGINE

5554A

WEIGHT - radiator bracket

1шт.

5636A

JOINT - starting crank

1шт.

PIN - 5/16" x 1-3/4" type 5 groove

1шт.

5637A

BRACKET - front wheel and radiator (Use 2561AA)

1шт.

5640A

CLAMP - front wheel bracket

2шт.

5684A

BUSHING - upright steering spindle, lower

1шт.

O3430AB1

BUSHING - upright steering spindle, upper

1шт.

O5815AB

SPRING - starting crank shaft

1шт.

O5816AB1

CRANK - starting

1шт.

O5817AB

STUD - front wheel bracket clamp, long

2шт.

NUT - 3/4" hex., light, N.F. thread

2шт.

WASHER - 3/4" std. lock

2шт.

O5818AB

X

STUD - front wheel bracket clamp, short

2шт.

NUT - 3/4" hex., light, N.F. thread

2шт.

WASHER - 3/4" std. lock

2шт.

2561AA

BRACKET - radiator, with bushing, studs and 1-5/8" x 3/4" N.C. hex. hd. cap screw

1шт.

SCREW - 1/2" x 2" hex. hd. cap, N.F. thread

5шт.

SCREW - 1/2" x 2-3/4" hex. hd. cap, N.F. thread

1шт.

NUT - 1/2" hex., light, N.F. thread

6шт.

WASHER - 1/2" std. lock

6шт.

FITTING - 1/8" straight Lincoln no. 5000

2шт.

2626AA

SHAFT - starting crank, with joint

1шт.

PIN - 5/16" x 1-3/4" type 5 groove

2шт.
