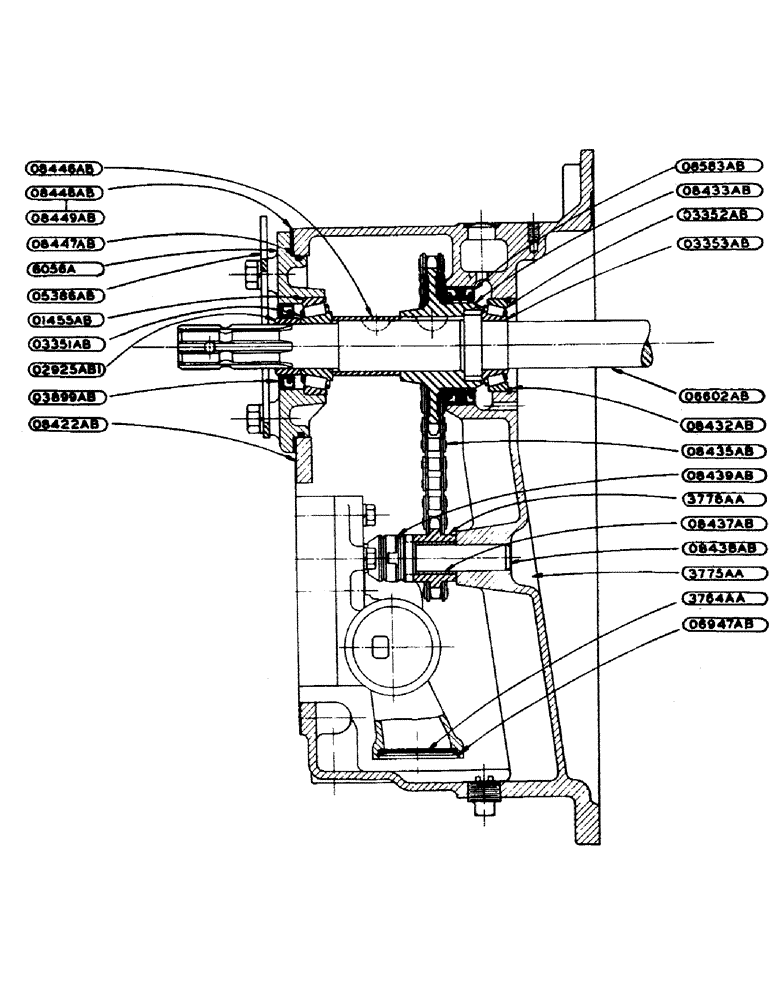

Запчасти Case IH S-SERIES (149) - HYDRAULIC SINGLE AND DUAL CONTROL UNIT, MAIN HOUSING AND PUMP DRIVE ASSEMBLY (08) - HYDRAULICS

6053A

COVER, hydraulic pump filter. (Casting) prior to tractor no. 5418090. See O8754AB (Single valve, S, SC, SO)

1шт.

6055A

HOUSING, hydraulic main. Use 3775AA

1шт.

6078A

LEVER, dual valve control hand, inner (Dual valve SC)

1шт.

FITTING, 1/8" straight Lincoln (Dual valve SC)

1шт.

6079A

LEVER, single and dual valve control hand, outer (Single valve S, SC, dual valve SC)

1шт.

FITTING, 1/8" straight Lincoln (Single valve S, SC, dual valve SC)

1шт.

6084A

LEVER, single valve control hand, outer (Single valve SO)

1шт.

FITTING, 1/8" straight Lincoln (Single valve SO)

1шт.

O1167AB

X

WASHER, hydraulic valve control hand lever

1шт.

O1615AB

X

GASKET, hydraulic main housing

1шт.

O6044AB

X

RING, hydraulic valve control hand lever stud snap

1шт.

O6600AB

STUD, hydraulic single valve control hand lever. See O8578AB (Single valve S, SC, SO)

1шт.

WASHER, 3/4" standard lock (Single valve S, SC, SO)

1шт.

O8422AB

X

GASKET, hydraulic valve body

1шт.

O8432AB

X

RING, snap, for hydraulic main housing

1шт.

O8433AB

SPROCKET, hydraulic pump drive - 26 teeth

1шт.

KEY, no. 15 Woodruff

1шт.

O8435AB

X

CHAIN, hydraulic pump drive (39 links and 1 connecting link of no. 50 roller chain)

1шт.

O8437AB

BUSHING, for 3778A driven sprocket

1шт.

O8438AB

PIN, driven sprocket bearing

1шт.

O8439AB

X

COUPLING, pump drive

1шт.

O8440AB

X

FILTER, oil, hydraulic pump (3" outside dia. x 5" long) Prior to tractor no. 5418090. See O8755AB (Single valve S, SC, SO)

1шт.

O8441AB

X

RETAINER, hydraulic pump filter

1шт.

O8442AB1

X

SPRING, hydraulic pump filter

1шт.

O8443AB1

X

GASKET, hydraulic pump filter cover

1шт.

O8444AB

ROD, hydraulic valve control (Single valve S, SC, SO)

1шт.

O8444AB

ROD, hydraulic valve control (Dual valve SC)

2шт.

NUT, 5/16" hexagon jam, N.F. thread (Single valve S, SC, SO)

2шт.

NUT, 5/16" hexagon jam, N.F. thread (Dual valve SC)

4шт.

O8445AB

X

JOINT, hydraulic valve control rod ball (Single valve S, SC, SO)

2шт.

O8445AB

X

JOINT, hydraulic valve control rod ball (Dual valve SC)

4шт.

WASHER, 5/16" standard lock (Single valve S, SC, SO)

2шт.

WASHER, 5/16" standard lock (Dual valve SC)

4шт.

O8540AB

STUD, for 6053A cover. Prior to tractor no. 5418090 (Single valve S, SC, SO)

3шт.

NUT, 3/8" hex. light, N.F. thread (Single valve S, SC, SO)

3шт.

WASHER, 3/8" standard lock (Single valve S, SC, SO)

3шт.

O8578AB

STUD, dual valve control hand lever. See O6600AB (Dual valve SC)

1шт.

WASHER, 3/4" standard lock (Dual valve SC)

1шт.

O8754AB

COVER, hydraulic pump filter. (Pressed steel) tractor no. 5418090 and after. See 6053A

1шт.

SCREW, 3/8" x 3/4" hex. head cap, N.C. thread

3шт.

WASHER, 3/8" standard lock

3шт.

O8755AB

X

FILTER, oil, hydraulic pump. (3" outside dia. x 4-1/4" long) tractor no. 5418090 and after. See O8440AB

1шт.

O700CH

X

LINK, connecting, for O8435AB roller chain

1шт.

O701CH

X

LINK, offset, for O8435AB roller chain

1шт.

O702CH

X

LINK, roller, for O8435AB roller chain

1шт.

3775AA

HOUSING, hydraulic main

1шт.

PLUG, 3/4" Lisle magnetic no. 403KQ square head pipe

1шт.

PLUG, 1/4" square head pipe

2шт.

PLUG, 3/4" square head pipe

1шт.

PLUG, 1" square head pipe

1шт.

PLUG, 1-3/8" Welch

1шт.

SCREW, 3/8" x 3/4" hexagon head cap, N.C. thread (Fastens housing, Serial Range: -platform)

2шт.

SCREW, 1/2" x 1-1/2" hexagon head cap, N.C. thread

4шт.

SCREW, 1/2" x 1-3/4" hexagon head cap, N.C. thread

6шт.

WASHER, 3/8" standard lock

2шт.

WASHER, 1/2" standard lock

10шт.

3778AA

SPROCKET WITH BUSHING, hydraulic pump driven - 11 teeth

1шт.

6056A

CARRIER, power take-off shaft rear bearing, single and dual

1шт.

SCREW, 1/2" x 1-3/4" hex. head cap, N.C. thread, power take off, for single and dual

4шт.

WASHER, 1/2" standard lock, power take off, for single and dual

4шт.

O809AB

SPRING, shifter shaft plunger, power take off, for single and dual

1шт.

O1455AB

X

CUP, power take-off shaft rear bearing. Timken no. 2720, power take off, for single and dual

1шт.

O1616AB

COVER, power take-off, front end, for single and dual

1шт.

O2925AB1

COLLAR, power take-off shaft rear, for single and dual

1шт.

O3351AB

CONE, power take-off shaft rear bearing. Timken no. 2796, for single and dual

1шт.

O3352AB

CUP, power take-off shaft front bearing. Timken no. 16284, for single and dual

1шт.

O3353AB

X

CONE, power take-off shaft front bearing. Timken no. 16150, for single and dual

1шт.

O3674AB

PLUNGER, power take-off shifter shaft, for single and dual

1шт.

O3899AB

X

SEAL, power take-off shaft rear oil, for single and dual

1шт.

O4244AB

SEAL, power take-off shifter shaft oil, for single and dual

1шт.

O5386AB

PLATE, power take-off guard mounting, for single and dual

1шт.

SCREW, 1/2" x 1-3/4" hexagon head cap, N.C. thread, power take off, for single and dual

4шт.

WASHER, 1/2" standard lock, power take off, for single and dual

4шт.

O5903AB

BEARING, BALL

BEARING, power take-off shaft front end pilot. New Departure no. 3204, for single and dual

1шт.

O5904AB

RING, SNAP

RING, power take-off shaft front end snap, for single and dual

1шт.

O5925AB

X

PIN, power take-off shifter shaft hand lever, for single and dual

1шт.

PIN, 3/32" x 5/8" cotter, power take off, for single and dual

1шт.

O5927AB

SHAFT, power take-off shifter, for single and dual

1шт.

NUT, 1/2" castellated, light, N.F. thread, power take off, for single and dual

1шт.

PIN, 1/8" x 1" cotter, power take off, for single and dual

1шт.

PIN, 3/16" x 1" type 5 groove, power take off, for single and dual

1шт.

WASHER, 1/2" plain, power take off, for single and dual

1шт.

O5928AB

SHIFTER, power take-off, for single and dual

1шт.

O6300AB

GASKET, power take-off front end cover, for single and dual

1шт.

O6602AB

SHAFT, power take-off (1-3/8" x 48-19/32" long), for single and dual

1шт.

KEY, no. 15 Woodruff, power take off, for single and dual

1шт.

O6603AB

GEAR, power take-off, for single and dual

1шт.

O6604AB

FORK, power take-off shifter, for single and dual

1шт.

O8303AB

X

GUARD, power take-off, for single and dual

1шт.

BOLT, 3/8" x 1" carriage, power take off, for single and dual

2шт.

NUT, 3/8" hexagon, N.C. thread, power take off, for single and dual

2шт.

WASHER, 3/8" shakeproof lock, type 40, no. 4020-26, power take off, for single and dual

2шт.

O8446AB

SPACER, between power take-off rear bearing and pump drive sprocket, for single and dual

1шт.

O8447AB

X

O-RING, power take-off shaft rear bearing carrier, for single and dual

1шт.

O8448AB

SHIM, for rear bearing carrier (.005" thick), power take off, for single and dual

3шт.

O8449AB

X

SHIM, for rear bearing carrier (.0125" thick), power take off, for single and dual

5шт.

O8583AB

X

SEAL, power take-off shaft front oil, for single and dual

2шт.

O8794AB

GUARD, tubular, for O6602AB shaft, power take off, for single and dual

1шт.

SCREW, 3/8" x 3/4" hexagon head cap, N.F. thread, power take off, for single and dual

2шт.

NUT, 3/8" hexagon, light, N.F. thread, power take off, for single and dual

2шт.

WASHER, 3/8" shakeproof lock, type 40, no. 4020-26, power take off, for single and dual

2шт.

736AA

SUPPORT WITH SPRING, power take-off front cover, for single and dual

1шт.

2518AA

LEVER, power take-off shifter band, for single and dual

1шт.
