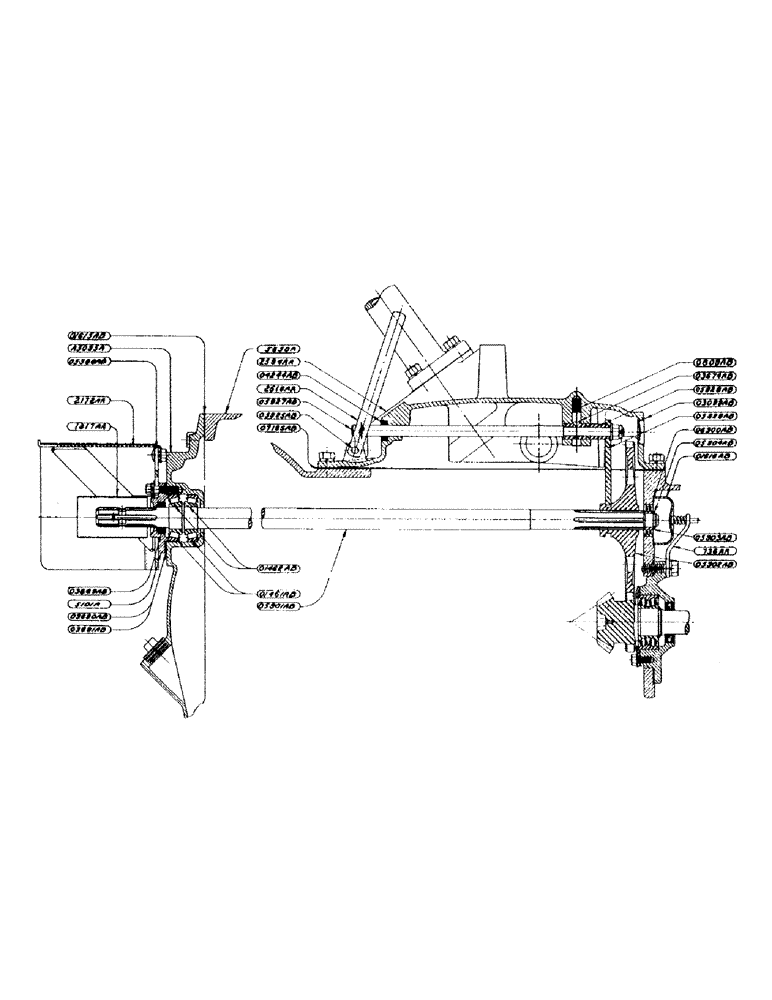

Запчасти Case IH S-SERIES (134) - POWER TAKE OFF ASSEMBLY WITH 1-1/8 INCH SHAFT, FOR S AND SO TRACTORS 1-1/8 AND 1-3/8 INCH SHAFT (06) - POWER TRAIN

A4541A

CAP, power take-off shaft rear cover. Use B4541A

1шт.

B4541A

CAP, power take-off shaft rear cover, 1-3/8" shaft

1шт.

SCREW, 1/2" x 1-3/4" hexagon head cap, N.C. thread, 1-3/8" shaft

4шт.

WASHER, 1/2" standard lock, 1-3/8" shaft

4шт.

4660A

COVER, transmission case, rear, 1-3/8" shaft

1шт.

SHAFT, 1/2" x 1-1/4" hexagon head cap, N.C. thread, 1-3/8" shaft

10шт.

WASHER, 1/2" standard lock, 1-3/8" shaft

10шт.

PLUG, 1-1/4" square head pipe, 1-3/8" shaft

1шт.

A5095A

COVER, transmission case rear, 1-1/8" shaft

1шт.

SCREW, 1/2" x 1-3/4" hexagon head, cap, N.C. thread, 1-1/8" shaft

4шт.

SCREW, 1/2" x 1-3/4" hexagon head, cap, N.C. thread, 1-1/8" shaft

6шт.

WASHER, 1/2" standard lock, 1-1/8" shaft

10шт.

PLUG, 1-1/4" square head pipe, 1-1/8" shaft

1шт.

5101A

CAP, bearing, power take-off, 1-1/8" shaft

1шт.

SCREW, 3/8" x 1-1/4" hexagon head cap, N.C. thread, 1-1/8" shaft

3шт.

WASHER, 3/8" standard lock, 1-1/8" shaft

3шт.

WASHER, 3/8" plain, 1-1/8" shaft

3шт.

O719AB

GASKET, rear cover cap, use with A4541A cap, 1-3/8" shaft

1шт.

O1461AB

X

CUP, bearing, power take-off shaft, Timken No. 14274, 1-1/8" shaft

2шт.

O1462AB

X

CONE, bearing, power take-off shaft, Timken No. 14125, 1-1/8" shaft

2шт.

O1615AB

X

GASKET, transmission case rear cover

1шт.

O1616AB

COVER, power take-off, front

1шт.

O1720AB

BEARING

power take-off shaft, new departure No. 1207, 1-3/8" shaft

1шт.

O1822AB

X

COLLAR, power take-off shaft, 1-3/8" shaft

1шт.

O1823AB2

X

SPACER, power take-off shaft, 1-3/8" shaft

1шт.

O2849AB

SPACER, power take-off mounting plate. Used with A4541A cap, 1-3/8" shaft

4шт.

O3690AB

SHIM, power take-off, .0125" thick, 1-1/8" shaft

6шт.

O3691AB

SHIM, power take-off, .005" thick, 1-1/8" shaft

3шт.

O3869AB

X

SEAL, oil, power take-off shaft, 1-1/8" shaft

1шт.

O3899AB

X

SEAL, oil, power take-off shaft, 1-3/8" shaft

1шт.

O5382AB

RING, snap, power take-off shaft, 1-3/8" shaft

1шт.

O5386AB

PLATE, mounting, power take-off guard

1шт.

BOLT, 3/8" x 1" carriage, with hexagon nut

2шт.

SCREW, 1/2" x 1-3/4" hexagon head cap, N.C. thread

4шт.

WASHER, 1/2" standard lock

4шт.

WASHER, 3/8" type 40, No. 4020 - 26 Shakeproof lock

2шт.

O5901AB

SHAFT, power take-off (1-1/8" spline shaft, 41-23/32" long). See O6605AB., 1-1/8" shaft

1шт.

O5902AB

GEAR, power take-off, 1-1/8" shaft

1шт.

O5903AB

BEARING, BALL

BEARING, pilot power take-off shaft, New Departure No. 3204

1шт.

O5904AB

RING, SNAP

power take-off shaft

1шт.

O6300AB

GASKET, power take-off front cover

1шт.

O6603AB

GEAR, power take-off, 1-3/8" shaft

1шт.

O6605AB

SHAFT, power take-off (1-3/8" spline shaft, 41-7/8" long). See O5901AB, 1-3/8" shaft

1шт.

O8303AB

X

GUARD, power take-off

1шт.

O8794AB

GUARD, tubular, end of power take-off shaft. See 1317AA, 1-3/8" shaft

1шт.

SCREW, 3/8" x 3/4" hexagon head cap, N.F. thread, 1-3/8" shaft

2шт.

NUT, 3/8" hexagon, light, N.F. thread, 1-3/8" shaft

2шт.

WASHER, 3/8" standard lock, 1-3/8" shaft

2шт.

A623AA

GUARD, tubular, end of power take-off shaft. Use O8794AB

1шт.

736AA

SUPPORT, with spring, for power take-off front cover

1шт.

SCREW, 1/2" x 1-3/4" hexagon head cap, N.F. thread

1шт.

1317AA

GUARD, tubular, end of power take-off shaft. See O8794AB, 1-1/8" shaft

1шт.

2172AA

X

GUARD, power take-off. Use O8303AB.

1шт.
