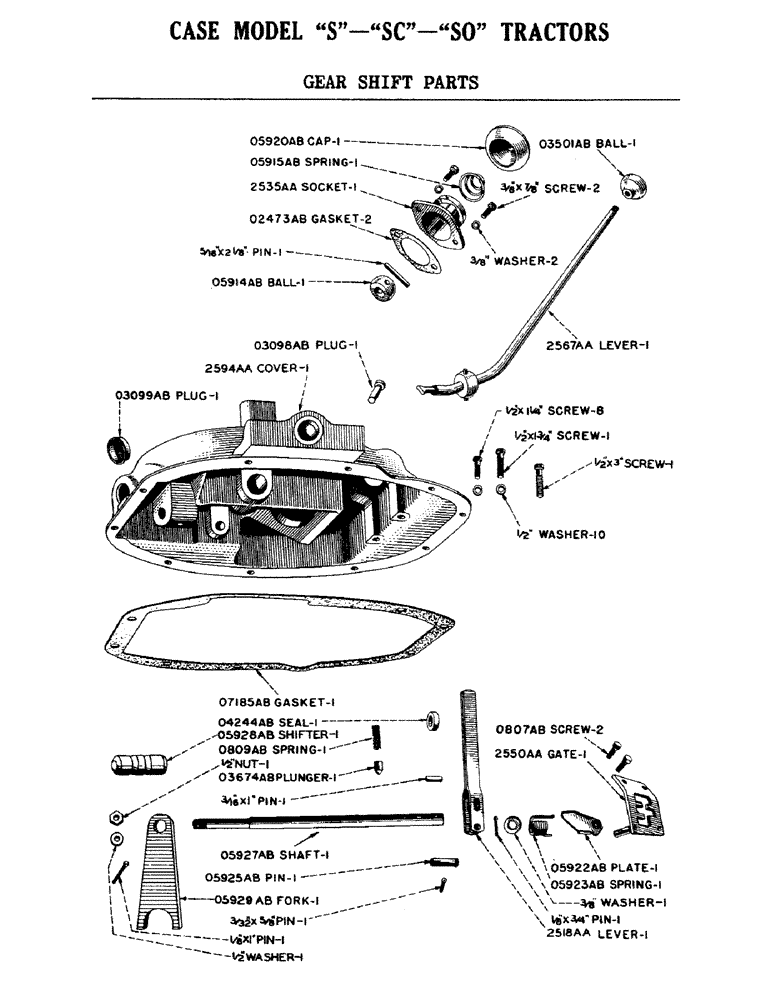

Запчасти Case IH S-SERIES (118) - GEAR SHIFT PARTS (06) - POWER TRAIN

5648A

COVER, transmission case top, use 2594AA

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread

8шт.

SCREW, 1/2" x 1-3/4" hexagon head cap, N.C. thread

1шт.

SCREW, 1/2" x 3" hexagon head cap, N.C. thread

1шт.

WASHER, 1/2" standard lock

10шт.

5664A

SHIFTER, low gear

1шт.

5665A

SHIFTER, second and reverse gear

1шт.

5666A

SHAFT, third and fourth gear

1шт.

O807AB

SCREW, gear shifter fork cap

9шт.

O807AB

SCREW, gear shifter gate cap

2шт.

O809AB

SPRING, gear shift plunger, and power take off shifter

4шт.

O995AB

PLUGER, gear shift

3шт.

PIN, 3/32" x 1/2" cotter

3шт.

O2473AB

GASKET, gear shift ball socket

2шт.

O3098AB

PLUG, power take off shifter shaft hole, S, SO

1шт.

O3099AB

PLUG, transmission case top cover

1шт.

O3457AB

WASHER, shifter shaft end

4шт.

SCREW, 1/4" x 1/2" round head machine, N.C. thread

4шт.

O3458AB

GASKET, shifter shaft end washer

4шт.

O3501AB

X

BALL, gear shift lever handle. See O5916AB

1шт.

O3674AB

PLUNGER, power take off shifter

1шт.

O4244AB

SEAL, oil, power take off shifter shaft

1шт.

O5905AB

SHAFT, lower gear shifter

1шт.

O5906AB

SHAFT, second, reverse, third and fourth shifter

1шт.

O5907AB

FORK, low gear

1шт.

O5908AB

FORK, second, reverse, third and fourth gear

2шт.

O5914AB

BALL, gear shift lever

1шт.

PIN, 5/16" x 2-1/8" type 5 groove

1шт.

O5915AB

SPRING

gear shift lever ball

1шт.

O5916AB

X

BALL, gear shift lever handle. (Slip on type, no threads) See O3501AB

1шт.

O5920AB

X

CAP, gear shift dust

1шт.

O5922AB

PLATE, gear shifter gate lockout

1шт.

O5923AB

SPRING, gear shifter gate lockout

1шт.

O5925AB

X

PIN, power take off shifter hand lever

1шт.

PIN, 3/32" x 5/8" cotter

1шт.

O5927AB

SHAFT, power take off shifter

1шт.

NUT, 1/2" castellated, light, N.F. thread

1шт.

PIN, 1/8" x 1" cotter

1шт.

PIN, 3/16" x 1" type 5 groove

1шт.

WASHER, 1/2" plain

1шт.

O5928AB

SHIFTER, power take off

1шт.

O5929AB

FORK, power take off shifter (For 1-1/8" spline shaft)

1шт.

O6604AB

FORK, power take off shifter (For 1-3/8" spline shaft)

1шт.

O6704AB

SCREW, set, shifter shaft

2шт.

NUT, 3/8" hexagon jam, N.C. thread

2шт.

O7185AB

X

GASKET, transmission case top cover

1шт.

2518AA

LEVER, power take off shifter hand

1шт.

2535AA

SOCKET, gear shift lever ball, with rings

1шт.

SCREW, 3/8" x 7/8" hexagon head cap, N.C. thread

2шт.

WASHER, 3/8" standard lock

2шт.

2550AA

GATE, gear shifter with lockout pin

1шт.

PIN, 1/8" x 3/4" cotter

1шт.

WASHER, 3/8" plain

1шт.

2567AA

LEVER, gear shift, with ball

1шт.

2594AA

COVER, top, with bushing and plug, for transmission case

1шт.
