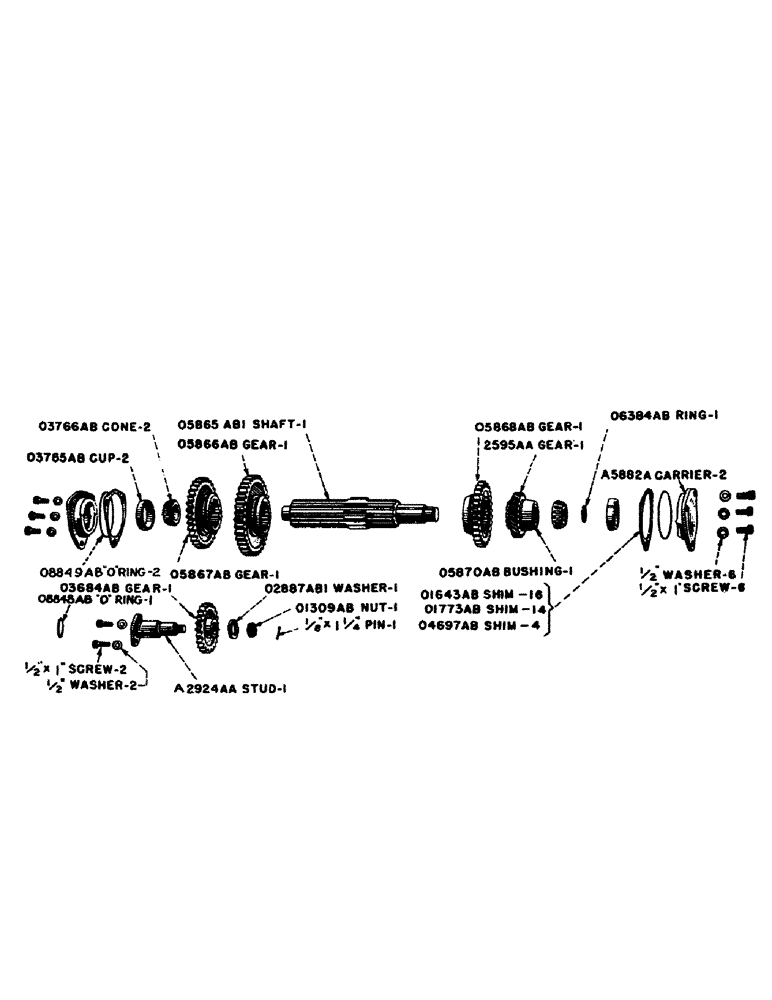

Запчасти Case IH S-SERIES (065) - SLIDING GEAR SHAFT, S, SC, SO (06) - POWER TRAIN

5678A

CARRIER, sliding gear shaft bearing, R.H. and L.H. Use A5882A

1шт.

5882A

CARRIER, sliding gear shaft bearing, R.H. and L.H. Use A5882A

1шт.

A5882A

CARRIER, sliding gear shaft bearing, R.H. and L.H.

2шт.

SCREW, 1/2" x 1" hexagon head cap, N.C. thread

6шт.

WASHER, 1/2" standard lock

6шт.

O1309AB

NUT for 2924AA or A2924AA stud. See O5872AB

1шт.

O1643AB

SHIM, transmission bearing carrier, No. 30 gauge

16шт.

O1773AB

SHIM, transmission bearing carrier, .005" thick

14шт.

O2887AB1

X

WASHER, reverse idler gear stud

1шт.

O3684AB

GEAR, reverse idler

1шт.

O3765AB

X

CUP, bearing, sliding gear shaft, Timken No. O2820

2шт.

O3766AB

BEARING

CONE, bearing, sliding gear shaft, Timken No. O2877

2шт.

O4697AB

SHIM, transmission bearing carrier, .003" thick

4шт.

O5865AB

SHAFT, sliding gear, use O5865AB1 with O634AB snap ring

1шт.

O5865AB1

SHAFT, sliding gear

1шт.

O5866AB

GEAR, low speed sliding

1шт.

O5867AB

GEAR, second and reverse sliding

1шт.

O5868AB

GEAR, third speed sliding

1шт.

O5870AB

BUSHING, fourth speed sliding gear

1шт.

O5871AB

STUD, reverse idler gear. Prior to tractor No. 4600000. Use A2924AA

1шт.

O5871AB1

STUD, reverse idler gear. Use A2924AA

1шт.

O5871AB2

STUD, reverse idler gear. Use A2924AA

1шт.

O5872AB

X

RING, snap, for O5871AB stud. See O1309AB

1шт.

O6384AB

RING, snap, sliding gear shaft

1шт.

O8848AB

X

"O" RING for A2924AA reverse idler gear stud

1шт.

O8849AB

X

"O" RING for A5882A bearing carrier

2шт.

2595AA

GEAR, fourth speed sliding, with bushing

1шт.

2924AA

STUD, reverse idler gear. Use A2924AA

1шт.

SCREW, 1/2" x 1" hexagon head cap, N.C. thread

2шт.

WASHER, 1/2" standard lock

2шт.

PIN, 1/8" x 1-1/4" cotter

1шт.

A2924AA

STUD, reverse idler gear, with nut and cotter pin

1шт.

SCREW, 1/2" x 1" hexagon head cap, N.C. thread

2шт.

WASHER, 1/2" standard lock

2шт.

PIN, 1/8" x 1-1/4" cotter

1шт.
