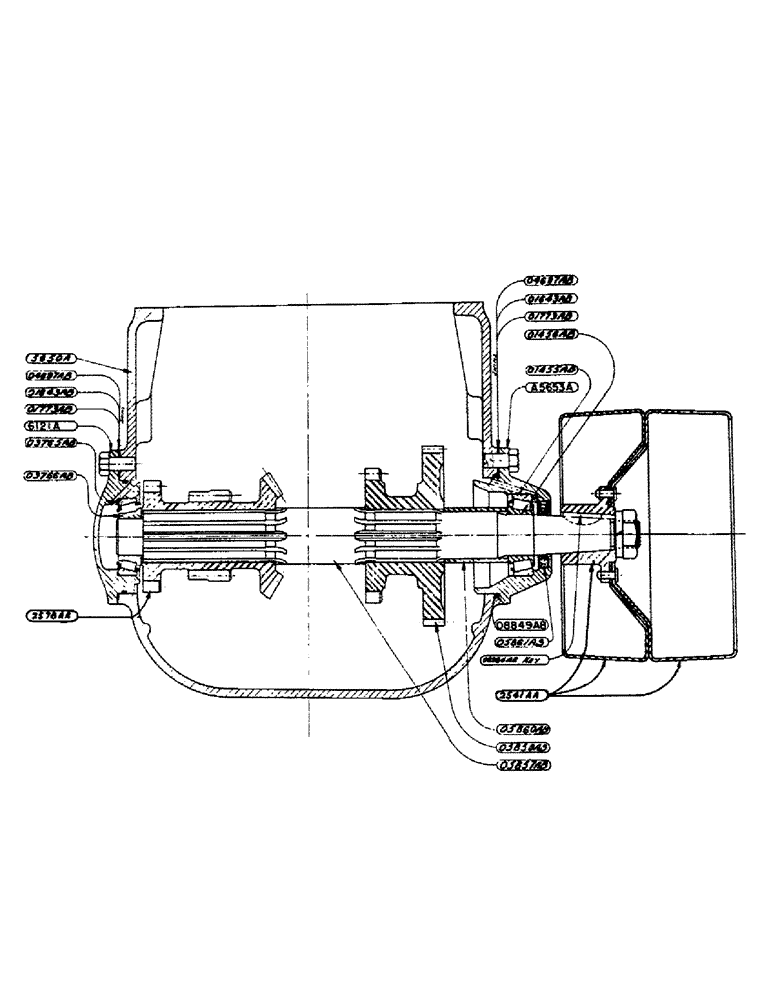

Запчасти Case IH S-SERIES (063) - BELT PULLEY SHAFT ASSEMBLY (06) - POWER TRAIN

5653A

CARRIER, belt pulley shaft bearing. R.H. Use A5653A

1шт.

A5653A

CARRIER, belt pulley shaft bearing, R.H.

1шт.

SCREW, 1/2" x 1" hexagon head cap, N.C. thread

3шт.

WASHER, 1/2" standard lock

3шт.

5678A

CARRIER, bolt pulley shaft bearing, L.H. Use 6121A

1шт.

5882A

CARRIER, belt pulley shaft bearing, L.H. Use 6121A

1шт.

6121A

CARRIER, belt pulley shaft bearing, L.H.

1шт.

SCREW, 1/2" x 1" hexagon head cap, N.C. thread

3шт.

WASHER, 1/2" standard lock

3шт.

O1455AB

X

CUP, bearing, belt pulley shaft, R.H., Timken No. 2720

1шт.

O1456AB

CONE

bearing, belt pulley shaft, R.H., Timken No. 2788

1шт.

O1643AB

SHIM, transmission bearing carrier, No. 30 gauge

14шт.

O1773AB

SHIM, transmission bearing carrier, .005" thick

13шт.

O3765AB

X

CUP, bearing, belt pulley shaft, L.H., Timken No. O2820

1шт.

O3766AB

BEARING

CONE, bearing, belt pulley shaft, L.H., Timken No. O2877

1шт.

O4697AB

SHIM, transmission bearing carrier, .003" thick

8шт.

O5857AB

SHAFT, belt pulley

1шт.

NUT, 1" hexagon jam, light, N.F. thread

1шт.

WASHER, 1" standard lock

1шт.

O5859AB

GEAR, third and fourth speed pinion

1шт.

O5860AB

SPACER, belt pulley shaft

1шт.

O5861AB

OIL SEAL

SEAL, oil, belt pulley shaft

1шт.

O6485AB

THIMBLE for installing O5861AB oil seal

1шт.

O7628AB

GAUGE for setting bevel gears

1шт.

O8849AB

X

"O" RING, belt pulley shaft

2шт.

O8984AB

X

KEY, fastens belt, Serial Range: pulley-shaft

1шт.

2541AA

PULLEY, belt, and hub. 6-3/8" width of face. See 3528AA

1шт.

2578AA

GEAR, clutch shaft and pinion, with bevel gear cluster

1шт.

3528AA

PULLEY, belt, and hub. 5-1/4" width of face. (Required only when 13-26 oversize tractor tires are used)

1шт.
