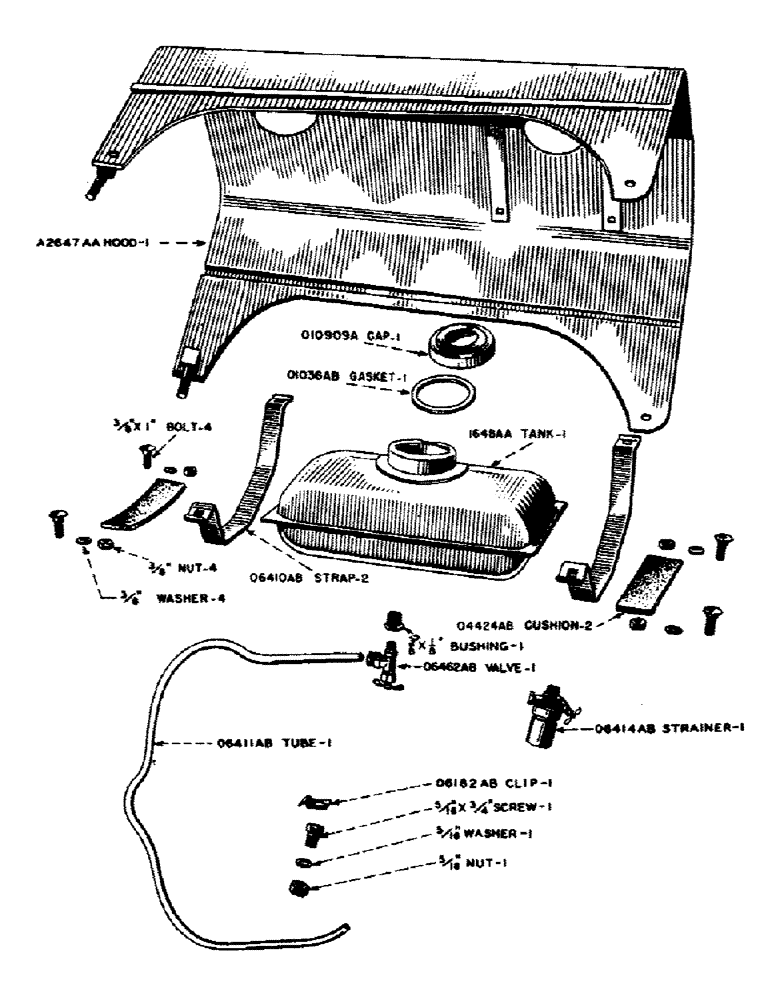

Запчасти Case IH S-SERIES (052) - SMALL GASOLINE TANK AND ENGINE HOOD FOR LOW COST FUEL, S, SC, SO (03) - FUEL SYSTEM

O1036AB

X

GASKET, fuel tank cap

1шт.

O4424AB

CUSHION, fuel tank anti-squeak

2шт.

O4905AB

X

STRAINER, fuel. After tractor No. 500000. See O6414AB

1шт.

ELBOW, Dole A7 male, 5/16" tube size x 1/8" pipe thread

1шт.

O6182AB

CLIP, fuel tube

1шт.

SCREW, 5/16" x 3/4" round head machine, N.C. thread

1шт.

NUT, 5/16" hexagon, light, N.C. thread

1шт.

WASHER, 5/16" standard lock

1шт.

O6410AB

STRAP, fuel tank

2шт.

BOLT, 3/8" x 1" round head carriage, N.C. thread

4шт.

NUT, 3/8" hexagon, light, N.C. thread

4шт.

WASHER, 3/8" standard lock

4шт.

O6411AB

TUBE, fuel, Serial Range: tank-strainer

1шт.

O6414AB

STRAINER, two way fuel. Prior to tractor No. 5000000. Use O4905AB strainer with A7 Dole elbow, 5/16" tube size x 1/8" pipe thread

1шт.

O6462AB

VALVE, needle

1шт.

O10909A

X

CAP, fuel tank filler, with lock plate

1шт.

1648AA

TANK, gasoline

1шт.

BUSHING, reducing, 3/8" male thread x 1/8" female thread

1шт.

A2647AA

HOOD, complete

1шт.
