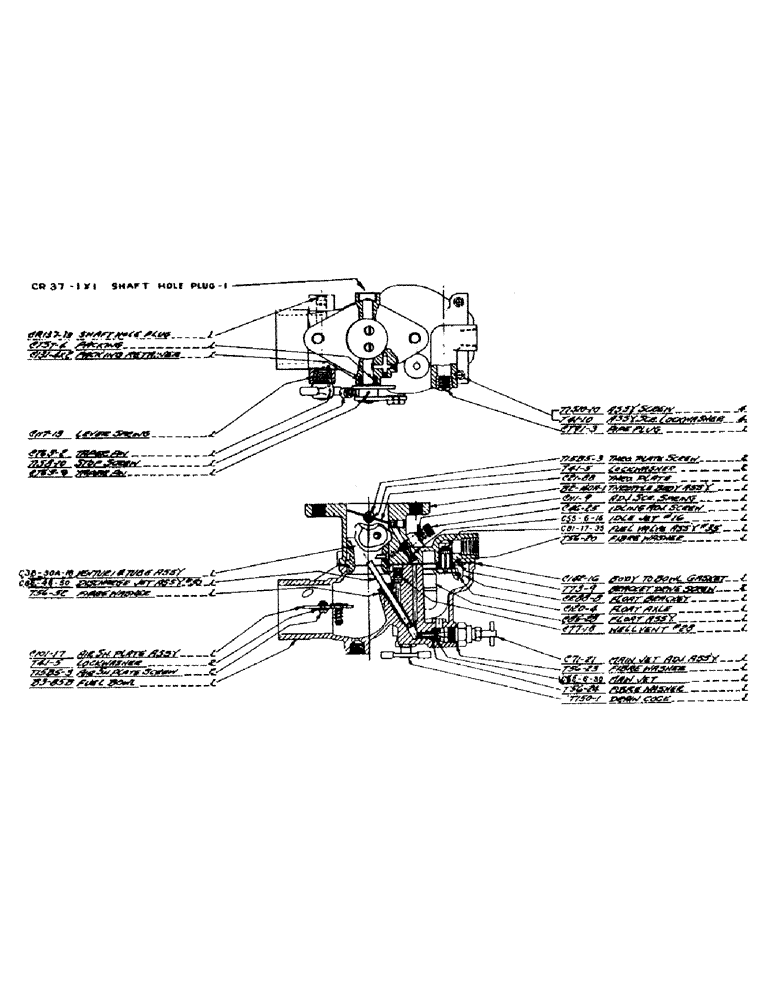

Запчасти Case IH S-SERIES (023) - O5571AB ZENITH CARBURETOR ASSEMBLY, S, SC, SO (03) - FUEL SYSTEM

B2-140A-1

BODY, throttle, assembly

1шт.

B3-85B

BOWL, fuel, assembly

1шт.

C21-88

PLATE, throttle

1шт.

C29-264-6

SHAFT AND LEVER ASSEMBLY, throttle

1шт.

C38-50A-18

VENTURI, main, no. 18

1шт.

C46-25

NEEDLE, adjusting, idling

1шт.

Part of P/N K150 Service Parts Kit

1шт.

C52-6-30

JET, main, no. 30

1шт.

C55-6-16

JET, idling, no. 16

1шт.

Part of P/N K150 Service Parts Kit

1шт.

C66-46-50

JET, main discharge, no. 50

1шт.

Part of P/N K150 Service Parts Kit

1шт.

C71-21

JET, main, adjusting assembly

1шт.

C77-18-28

VENT, well, no. 28

1шт.

Part of P/N K150 Service Parts Kit

1шт.

C81-17-35

VALVE, fuel, no. 35

1шт.

Part of P/N K150 Service Parts Kit

1шт.

B51353

FLOAT

assembly

1шт.

C101-17

PLATE, air shutter

1шт.

C108-61

SHAFT AND LEVER ASSEMBLY, air shutter

1шт.

C111-9

SPRING, adjusting screw

1шт.

C117-13

SPRING, air shutter lever

1шт.

C120-4

AXLE, float

1шт.

Part of P/N K150 Service Parts Kit

1шт.

C131-4X2

RETAINER, packing

1шт.

Part of P/N K150 Service Parts Kit

1шт.

C141-4-6

GASKET, flange

1шт.

Part of P/N K150 Service Parts Kit

1шт.

B51463

GASKET

bowl to body, replaces C-142-16

1шт.

Part of P/N K150 Service Parts Kit

1шт.

Part of P/N C181-66 Gasket Set

1шт.

CR37-1X1

PLUG, throttle shaft hole

1шт.

CR88-8

BRACKET, float

1шт.

CR137-19

PLUG, shaft hole

1шт.

CT57-4

PACKING, throttle shaft

1шт.

Part of P/N K150 Service Parts Kit

1шт.

CT63-2

PIN, taper, air shutter shaft lever

1шт.

CT63-9

PIN, taper, throttle shaft lever

1шт.

CT91-3

PLUG, gas inlet

1шт.

T1S-8-10

SCREW, throttle stop

1шт.

T1S-10-10

SCREW, bowl to body assembly

4шт.

Part of P/N K150 Service Parts Kit

1шт.

T15B-5-3

SCREW, throttle plate and air shutter plate

4шт.

Part of P/N K150 Service Parts Kit

1шт.

T41-5

LOCKWASHER, throttle plate screw and air shutter plate screw

4шт.

Part of P/N K150 Service Parts Kit

1шт.

T41-10

LOCKWASHER, bowl to body screw

4шт.

Part of P/N K150 Service Parts Kit

1шт.

T56-20

WASHER, fibre, fuel valve

1шт.

Part of P/N K150 Service Parts Kit

1шт.

Part of P/N C181-66 Gasket Set

1шт.

T56-23

WASHER, fibre, main jet adj

1шт.

Part of P/N K150 Service Parts Kit

1шт.

Part of P/N C181-66 Gasket Set

1шт.

T56-24

WASHER, fibre, main jet

1шт.

Part of P/N K150 Service Parts Kit

1шт.

Part of P/N C181-66 Gasket Set

1шт.

T56-52

WASHER, fibre, main discharge jet

1шт.

Part of P/N K150 Service Parts Kit

1шт.

Part of P/N C181-66 Gasket Set

1шт.

T73-9

SCREW, bracket drive

2шт.

T150-1

COCK, drain

1шт.

O562AB

X

GASKET, carburetor

1шт.

O5771AB

KIT

CARBURETOR, Zenith. Model 161J x 7, outline no. 9667

1шт.

SCREW, 5/16" x 7/8" hexagon head cap, N.C. thread

2шт.

WASHER, 5/16" standard lock

2шт.

O6323AB

ROD, choke, prior to tractor no. 4506073

1шт.

PIN, 1/16" x 3/8" cotter

1шт.

O6324AB

CLIP, choke rod, prior to tractor no. 4506073

1шт.

O6325AB

CONTROL, flexible choke, tractor no. 4506073 and after

1шт.

NUT, no. 10-32 machine screw, light, N.F. thread

2шт.

NUT, 3/8" hexagon, light, N.F. thread

1шт.

WASHER, 3/8" standard lock

1шт.

O6363AB

EXTENSION, choke control

1шт.

PIN, 1/16" x 3/8" cotter

1шт.

C181-66

SET gasket, Includes: P/N B51463, T56-20, T56-23, T56-24, T56-52

1шт.

K150

KIT service parts, Includes: P/N C46-25, C55-6-16, C66-46-50, C77-18-28, C81-17-35, C120-4, C131-4x2, C141-4-6, B51463, CT57-4, T1S-10-10, T15B-5-3, T41-5

1шт.
