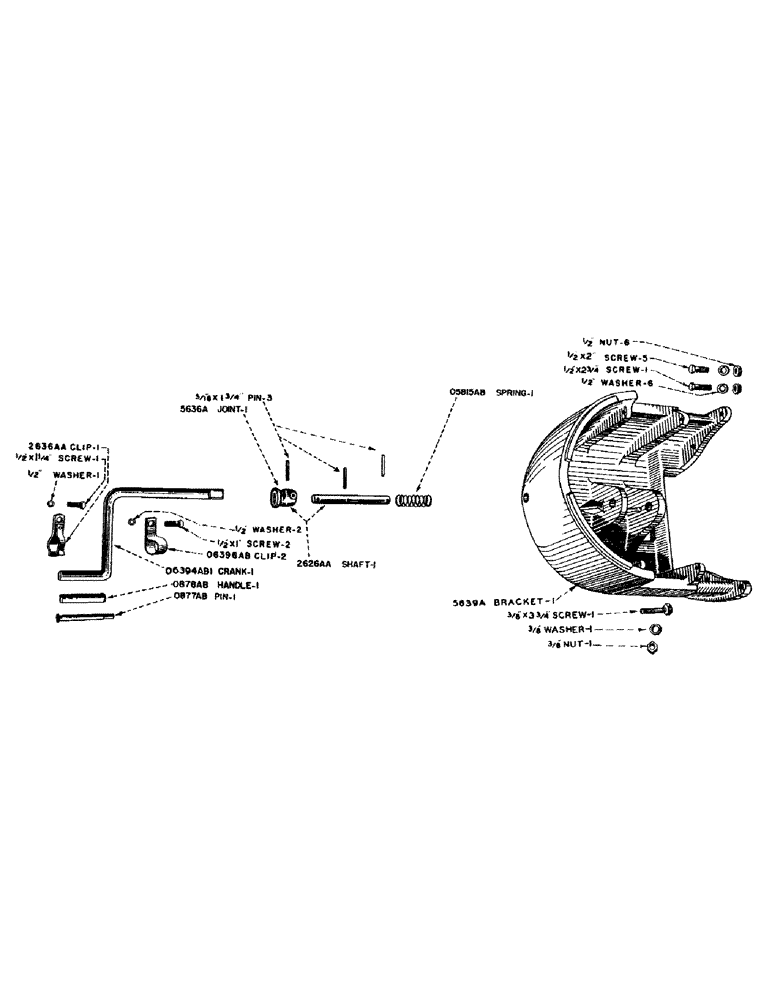

Запчасти Case IH S-SERIES (049) - STARTING CRANK AND RADIATOR BRACKET FOR S AND SO TRACTOR (02) - ENGINE

5636A

JOINT, starting crank

1шт.

PIN, 5/16" x 1-3/4" type 5 groove

1шт.

5639A

BRACKET, front axle and radiator

1шт.

SCREW, 1/2" x 2" hexagon head cap, N.F. thread, S

5шт.

SCREW, 1/2" x 2" hexagon head cap, N.F. thread, SO

3шт.

SCREW, 1/2" x 2-1/4" hexagon head cap, N.F. thread, SO

2шт.

SCREW, 1/2" x 2-3/4" hexagon head cap, N.F. thread

1шт.

NUT, 1/2" hexagon, light, N.F. thread

6шт.

WASHER, 1/2" standard lock

6шт.

SCREW, 3/8" x 3-3/4" hexagon head cap, N.F. thread

1шт.

NUT, 3/8" hexagon, light, N.F. thread

1шт.

WASHER, 3/8" standard lock

1шт.

O877AB

PIN, starting crank handle

1шт.

O878AB

HANDLE, starting crank

1шт.

O5815AB

SPRING, starting crank shaft

1шт.

O6394AB1

CRANK, starting

1шт.

O6396AB

CLIP, starting crank

2шт.

SCREW, 1/2" x 1" hexagon head cap, N.C. thread

2шт.

WASHER, 1/2" standard lock

2шт.

2626AA

SHAFT, starting crank, with joint

1шт.

PIN, 5/16" x 1-3/4" type 5 groove

2шт.

2636AA

CLIP, starting crank support, with spring, S

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread, S

1шт.

WASHER, 1/2" standard lock, S

1шт.

3527AA

CLIP, starting crank support, with spring, SO

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread, SO

1шт.

WASHER, 1/2" standard lock, SO

1шт.
