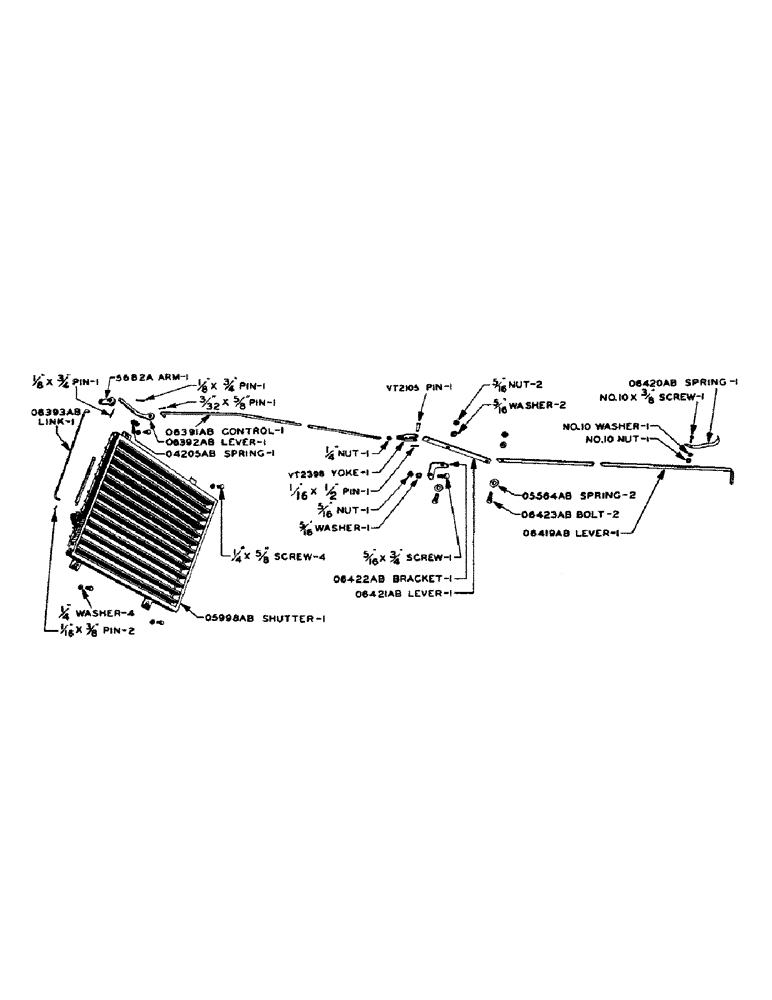

Запчасти Case IH S-SERIES (046) - RADIATOR SHUTTER FOR LOW COST FUEL, S, SC, SO (02) - ENGINE

5682A

ARM, radiator shutter control lever

1шт.

PIN, 1/8" x 3/4" type 1 groove

1шт.

O4205AB

SPRING, radiator shutter control lever and linkage shaft

1шт.

O5564AB

SPRING, radiator shutter control pivot lever bolt

2шт.

O5998AB

SHUTTER, radiator

1шт.

SCREW, 1/4" x 5/8" hexagon head cap, N.F. thread

4шт.

WASHER, 1/4" standard lock

4шт.

O6391AB

CONTROL, radiator shutter

1шт.

PIN, 3/32" x 5/8" cotter

1шт.

NUT, 1/4" hexagon, N.F. thread

1шт.

O6392AB

LEVER, radiator shutter control

1шт.

PIN, 1/8" x 3/4" cotter

1шт.

O6393AB

LINK, radiator shutter control, front

1шт.

PIN, 1/16" x 3/8" cotter

2шт.

O6419AB

LEVER, radiator shutter control hand

1шт.

O6420AB

SPRING, radiator shutter control hand lever

1шт.

SCREW, No. 10 x 3/8" round head machine, N.F. thread

1шт.

NUT, No. 10 hexagon, light, N.F. thread

1шт.

WASHER, No. 10 standard lock

1шт.

O6421AB

LEVER, radiator shutter control pivot

1шт.

06422AB

BRACKET, radiator shutter control pivot lever

1шт.

SCREW, 5/16" x 3/4" hexagon head cap, N.F. thread

1шт.

NUT, 5/16" hexagon, light, N.F. thread

1шт.

WASHER, 5/16" standard lock

1шт.

O6423AB

BOLT, radiator shutter control pivot lever

2шт.

NUT, 5/16" hexagon, light, N.F. thread

2шт.

WASHER, 5/16" standard lock

2шт.

VT2105

X

PIN, radiator shutter control rod yoke end

1шт.

PIN, 1/16" x 1/2" cotter

1шт.

VT2398

X

YOKE END, radiator shutter control rod

1шт.
