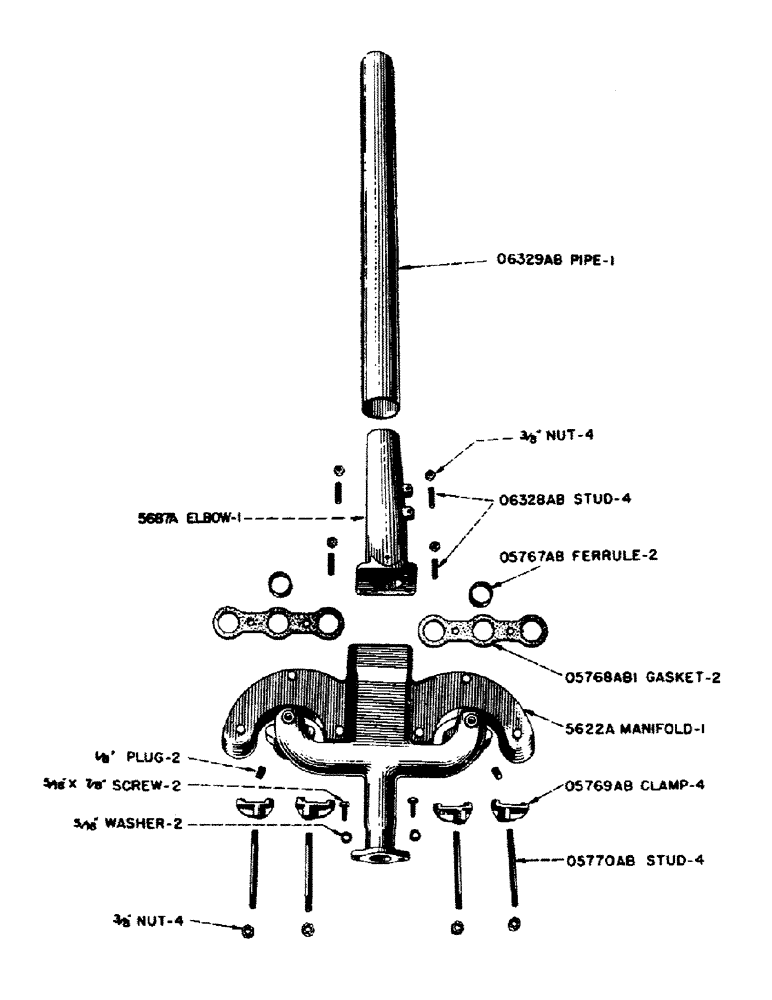

Запчасти Case IH S-SERIES (017) - GASOLINE MANIFOLD AND EXHAUST PIPE, S, SC, SO (02) - ENGINE

5622A

MANIFOLD, inlet and exhaust

1шт.

PLUG, 1/8" square head pipe

2шт.

SCREW, 5/16" x 7/8" hexagon head cap, N.C. thread

2шт.

WASHER, 5/16" standard lock

2шт.

5627A

ELBOW, exhaust. Use A5627A

1шт.

A5627A

ELBOW, exhaust. Prior to tractor No. 4503029. See 5687A, S, SC

1шт.

5685A

ELBOW, exhaust, SO

1шт.

5687A

ELBOW, exhaust, tractor No. 4503029 and after. See A5627A, S, SC

1шт.

O5767AB

X

FERRULE, inlet port

2шт.

O5768AB1

GASKET

inlet and exhaust manifold. See 4057AA

2шт.

O5769AB

CLAMP, manifold

4шт.

O5770AB

STUD, manifold clamp

4шт.

NUT, 3/8" hexagon, light, N.F. thread

4шт.

O6328AB

STUD, exhaust elbow

4шт.

NUT, 3/8" hexagon, light, N.F. thread

4шт.

O6329AB

PIPE, exhaust. Not required when using muffler, S, SC.

1шт.
