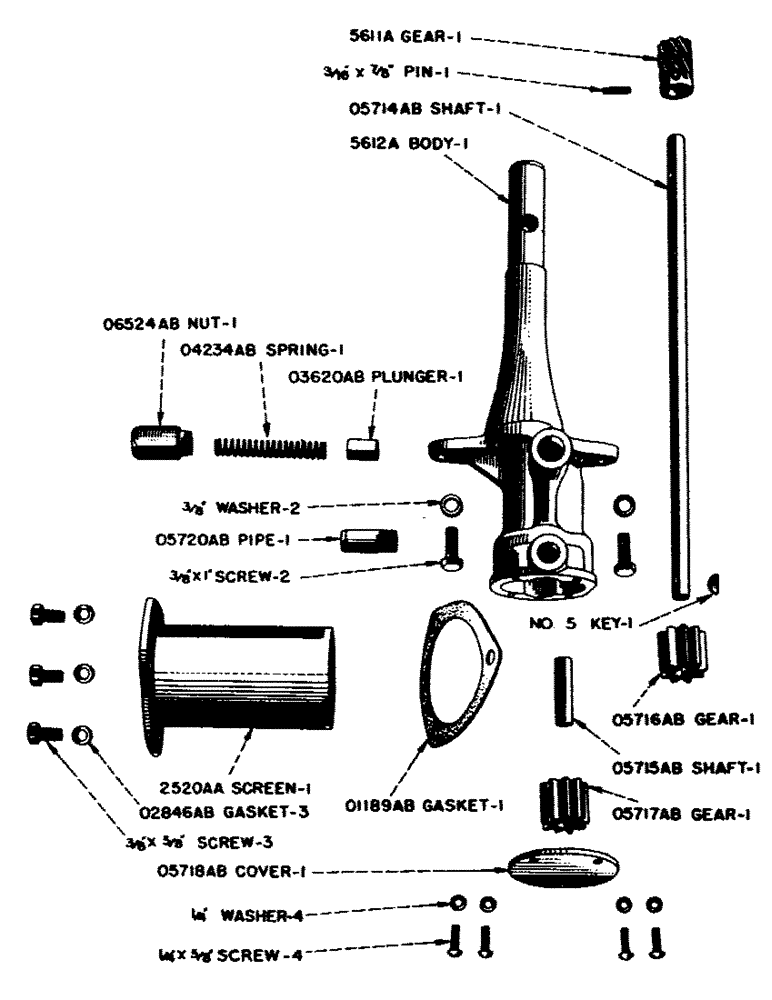

Запчасти Case IH S-SERIES (012) - OIL PUMP, S, SC, SO (02) - ENGINE

5611A

GEAR oil pump drive

1шт.

Part of Oil Pump Assy. P/N 2586AA

1шт.

PIN, 3/16" x 7/8" type 3 groove

1шт.

5612A

BODY, oil pump

1шт.

Part of Oil Pump Assy. P/N 2586AA

1шт.

SCREW, 3/8" x 1" hexagon head cap, N.C. thread

2шт.

WASHER, 3/8" standard lock

2шт.

O1189AB

X

GASKET, oil pump screen flange

1шт.

O2846AB

X

GASKET, oil pump screen flange cap screw

3шт.

SCREW, 3/8" x 5/8" hexagon head cap, N.C. thread

3шт.

O3620AB

PLUNGER, oil pump relief

1шт.

Part of Oil Pump Assy. P/N 2586AA

1шт.

O4234AB

X

SPRING, oil pump relief plunger

1шт.

Part of Oil Pump Assy. P/N 2586AA

1шт.

O5714AB

SHAFT, oil pump drive

1шт.

Part of Oil Pump Assy. P/N 2586AA

1шт.

KEY, No. 5 Woodruff

1шт.

O5715AB

SHAFT, oil pump stub

1шт.

Part of Oil Pump Assy. P/N 2586AA

1шт.

O5716AB

GEAR, oil pump, with keyway

1шт.

Part of Oil Pump Assy. P/N 2586AA

1шт.

O5717AB

GEAR, oil pump, without keyway

1шт.

Part of Oil Pump Assy. P/N 2586AA

1шт.

O5718AB

COVER, oil pump

1шт.

Part of Oil Pump Assy. P/N 2586AA

1шт.

SCREW, 1/4" x 5/8" round head machine, N.C. thread

4шт.

WASHER, 1/4" standard lock

4шт.

O5720AB

PIPE, oil pump inlet

1шт.

Part of Oil Pump Assy. P/N 2586AA

1шт.

O6524AB

X

NUT, oil pump relief

1шт.

Part of Oil Pump Assy. P/N 2586AA

1шт.

2520AA

SCREE, oil pump

1шт.

2586AA

ASSEMBLY, oil pump, consists of all parts except P/N O1189AB, O2846AB and 2520AA

1шт.
