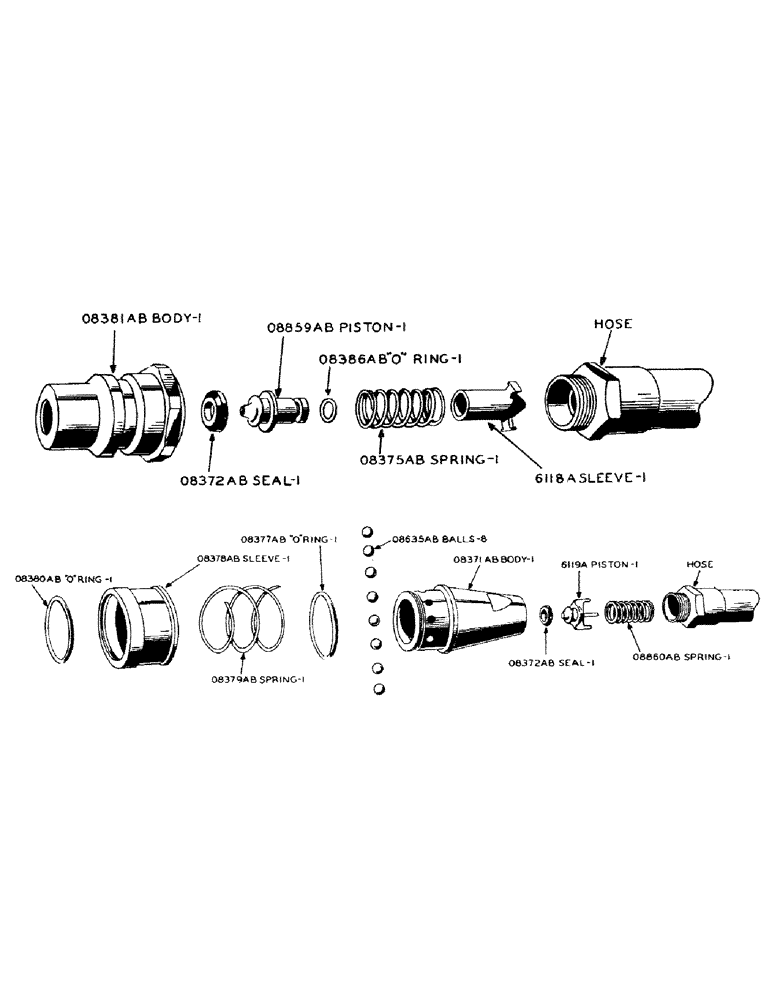

Запчасти Case IH S-SERIES (157) - HYDRAULIC SINGLE AND DUAL CONTROL UNIT, 4025AA BREAK-AWAY SELF SEALING COUPLING PLUG (08) - HYDRAULICS

6118A

X

SLEEVE, break-away coupling plug piston

1шт.

O8372AB

X

SEAL, break-away coupling piston

1шт.

O8375AB

X

SPRING, break-away coupling piston

1шт.

O8381AB

X

BODY, male, break-away coupling plug

1шт.

O8386AB

X

O-RING, break-away coupling plug piston sleeve

1шт.

O8859AB

X

PISTON, break-away coupling plug

1шт.

4025AA

X

PLUG, break-away self sealing coupling. Consists of above items

2шт.

O8387AB

X

PLUG, adapter, connects break-away coupling plug to mounted cylinder

2шт.

6119A

X

PISTON, break-away coupling socket, 3945AA

1шт.

O8371AB

BODY, female, break-away coupling socket, 3945AA

1шт.

O8372AB

X

SEAL, break-away coupling piston, 3945AA

1шт.

O8377AB

X

O-RING, break-away coupling socket body, 3945AA

1шт.

O8378AB

X

SLEEVE, break-away coupling socket body ball retaining, 3945AA

1шт.

O8379AB

X

SPRING, break-away coupling socket body ball retaining sleeve, 3945AA

1шт.

O8380AB

X

RING, snap, break-away coupling socket rubber, 3945AA

1шт.

O8635AB

X

BALL, break-away coupling socket locking, 3945AA

8шт.

O8860AB

X

SPRING, break-away coupling socket piston, 3945AA

1шт.

4026AA

X

SOCKET, break-away self sealing coupling. Consists of above items, 3945AA

2шт.

4268AA

X

SERVICE KIT for 4025AA and 4026AA hydraulic couplings. Consists of the following items: 1 - 6118A, 1 - 6119A, 2 - O8372AB, 1 - O8375AB, 1 - O8377AB, 1 - O8386AB, 1 - O8859AB and 1 - O8860AB

1шт.

O1554AB1

X

SPRING, mounting bracket, for coupling socket, for single and dual

2шт.

O8388AB

X

BRACKET, break-away coupling mounting, socket, for single and dual

2шт.

SCREW, 3/8" x 2" hexagon head cap, N.F. thread, mounting bracket for coupling socket, for single and dual

2шт.

NUT, 3/8" hexagon jam, light, N.F. thread, mounting bracket for coupling socket, for single and dual

4шт.

O8391AB

STRAP, break-away coupling mounting. See O8687AB (Single valve SC), bracket for socket, for single and dual

1шт.

O8606AB

X

CLAMP, break-away coupling mounting, bracket for socket, for single and dual

4шт.

SCREW, No. 8-32 x 5/8" round head machine, mounting bracket for coupling socket, for single and dual

4шт.

NUT, No. 8-32 hexagon, mounting bracket for coupling socket, for single and dual

4шт.

WASHER, No. 8 standard lock, mounting bracket for coupling socket, for single and dual

4шт.

O8687AB

STRAP, break-away coupling mounting. See O8391AB (Single valve S, SO) (Dual valve SC), bracket for socket, for single and dual

1шт.

SCREW, 5/16" x 3/4" hexagon head cap, N.F. thread (Single valve S, SO) (Dual valve SC), mounting bracket for coupling socket, for single and dual

2шт.

NUT, 5/16" hexagon, light, N.F. thread (Single valve S, SO) (Dual valve SC), mounting bracket for coupling socket, for single and dual

2шт.

WASHER, 5/16" standard lock (Single valve, S, SO) (Dual valve SC), mounting bracket for coupling socket, for single and dual

2шт.

3900AA

PLUG, dust, hydraulic break-away coupling, mounting bracket for coupling socket, for single and dual

1шт.

O8376AB

HOSE, coupling to valve, L.H. (1/2" inside diameter x 23-1/4" long) (Single valve SC), for single and dual

1шт.

O8392AB

HOSE, coupling to portable cylinder, front (1/2" inside diameter x 76" long), for single and dual

1шт.

O8393AB

HOSE, coupling to portable cylinder, rear (1/2" inside diameter x 88" long), for single and dual

1шт.

O8579AB

HOSE, coupling to valve, R.H. (1/2" inside diameter x 33" long) (Single valve SC), for single and dual

1шт.

O8590AB

HOSE, coupling to valve, (1/2" inside diameter x 18" long) (Single valve S, SO) (Dual valve SC), for single and dual

2шт.

O8681AB

X

CLAMP FOR HOSE, coupling, for single and dual

2шт.

SCREW, 5/16" x 3/4" hex. hd. cap N.F. thread, coupling hose, for single and dual

1шт.

NUT, 5/16" hex. light, N.F. thread, coupling hose, for single and dual

1шт.

WASHER, 5/16" std. lock, coupling hose, for single and dual

1шт.

O8387AB

X

PLUG, break-away male coupling plug adapter, hose, parts to adapt hydraulic control unit to single action cylinder on manure loader

1шт.

O8727AB

X

HOSE, short, for manure loader (1/2" x 14-1/2" long), parts to adapt hydarulic control unit to single action cylinder

1шт.

3946AA

PLUG, break-away male coupling. Consists of 1 - O8372AB, 1 - O8375AB, 1 - O8381AB, 1 - O8382AB, 1 - O8383AB, 1 - O8386AB and 1 - 3759AA

2шт.

4025AA

X

PLUG, break-away male coupling. Consists of 1 - 6118A, 1 - O8372AB, 1 - O8375AB, 1 - O8381AB, 1 - O8386AB and 1 - O8859AB, parts to adapt hydraulic control unit to single action cylinder on manure loader

2шт.

TEE, 3/4" x 3/4" x 3/4" service, parts to adapt hydraulic control unit to single action cylinder on manure loader

1шт.

BUSHING, 3/4" x 1/2" reducing, parts to adapt hydraulic control unit to single action cylinder on manure loader

1шт.

COUPLING, 1/2" pipe, parts to adapt hydraulic control unit to single action cylinder on manure loader

1шт.
