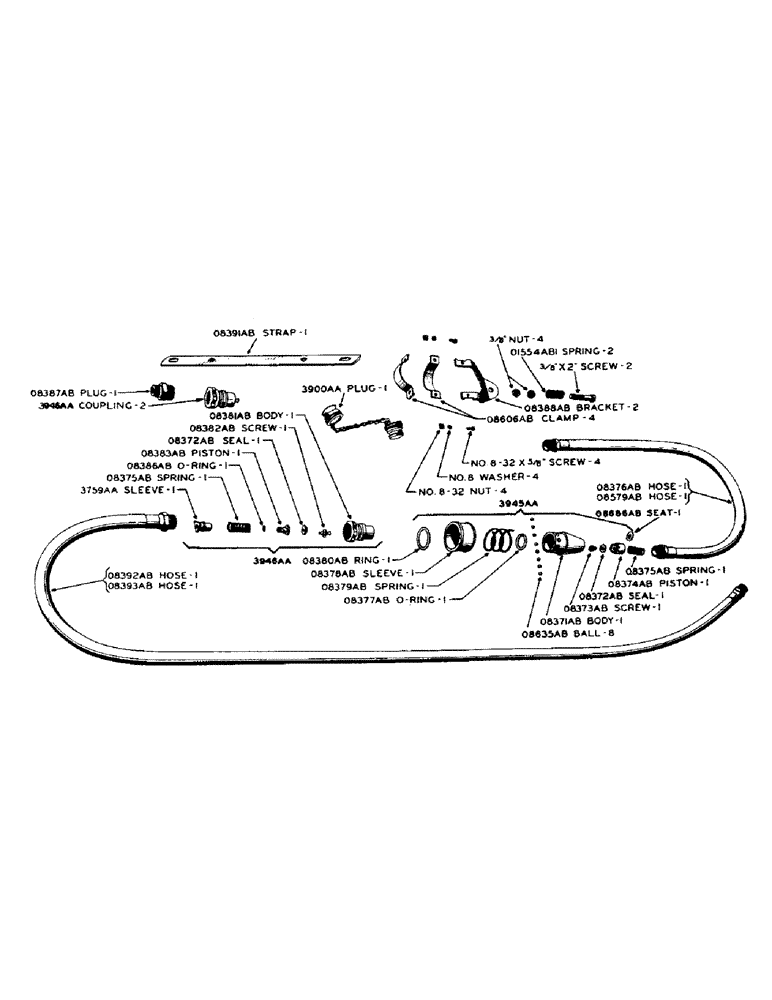

Запчасти Case IH S-SERIES (156) - HYDRAULIC SINGLE AND DUAL CONTROL UNIT BREAK-AWAY SELF SEALING (08) - HYDRAULICS

O8372AB

X

SEAL, break-away coupling piston

1шт.

O8375AB

X

SPRING, break-away coupling piston

1шт.

O8381AB

X

BODY, male, break-away coupling plug

1шт.

O8382AB

SCREW, long, break-away coupling plug piston self retaining

1шт.

O8383AB

PISTON, break-away coupling plug

1шт.

O8386AB

X

O-RING, break-away coupling plug piston sleeve

1шт.

3759AA

SLEEVE, break-away coupling plug piston

1шт.

3946AA

PLUG, break-away self sealing. Consists of above items

2шт.

O8387AB

X

PLUG, adapter, connects break-away coupling plug to mounted cylinder

2шт.

O8371AB

BODY, break-away coupling socket, 3945AA

1шт.

O8372AB

X

SEAL, break-away coupling piston, 3945AA

1шт.

O8373AB

SCREW, break-away coupling socket piston self retaining, 3945AA

1шт.

O8374AB

PISTON, break-away coupling socket, 3945AA

1шт.

O8375AB

X

SPRING, break-away coupling piston, 3945AA

1шт.

O8377AB

X

O-RING, break-away coupling socket body, 3945AA

1шт.

O8378AB

X

SLEEVE, break-away coupling socket ball retaining, 3945AA

1шт.

O8379AB

X

SPRING, break-away coupling socket ball retaining sleeve, 3945AA

1шт.

O8380AB

X

RING, snap, break-away coupling socket rubber, 3945AA

1шт.

O8635AB

X

BALL, break-away coupling socket locking, 3945AA

8шт.

O8686AB

SEAT, piston spring, 3945AA break-away coupling socket

1шт.

3945AA

SOCKET, break-away self sealing coupling. Consists of above items, 3945AA

2шт.
