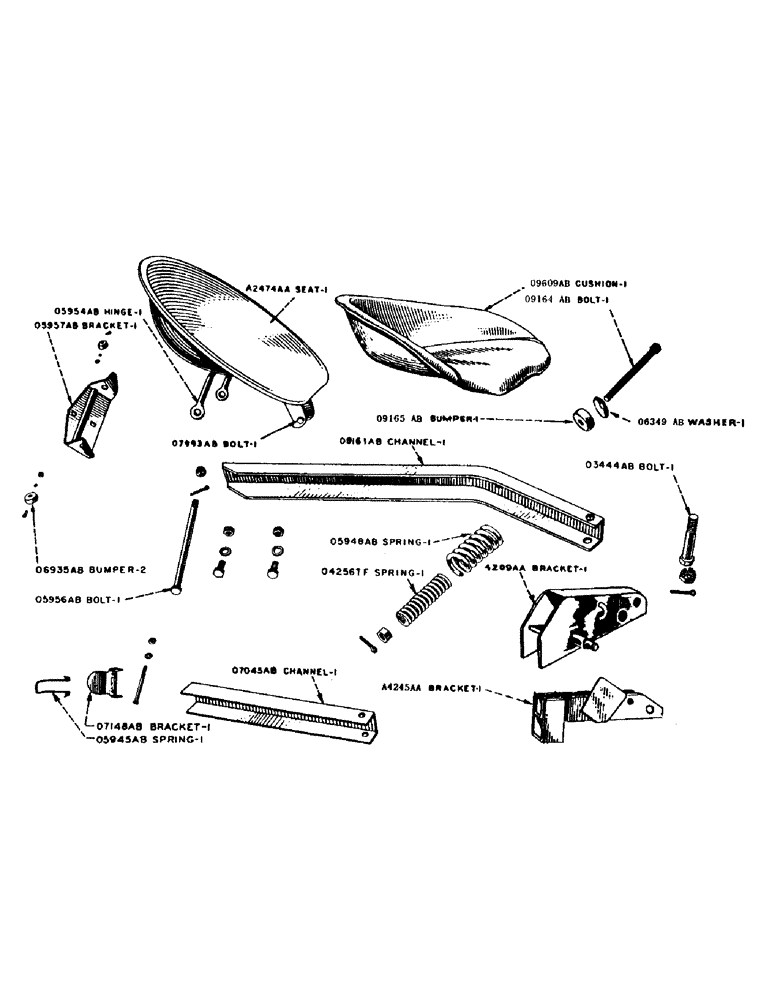

Запчасти Case IH S-SERIES (104) - OPERATORS SEAT, FOR TRACTORS PRIOR TO S/N 8027115, S, SC, SO (09) - CHASSIS

A8402

BRACKET - seat rear support

1шт.

SCREW - 1/2" x 1" hex. hd. cap, N.F. thread (S, SC)

2шт.

NUT - 1/2" hex., light, N.F. thread (S, SC)

2шт.

WASHER - 1/2" std. lock (S, SC)

2шт.

A2474AA

SEAT - operator's (Consists of seat with: 1-O5954AB hinge, 1- O5956AB bolt, 1-A8402 bracket, 2-O6935AB bumpers and 1-O7993AB bolt)

1шт.

4209AA

BRACKET SEAT CHANNEL (S, SC)

1шт.

SCREW - 5/8" x 1-1/4" hex. hd. cap, N.C. thread (S, SC)

2шт.

WASHER - 5/8" std. lock (S, SC)

2шт.

4245AA

X

BRACKET (Use 1-A4245AA bracket with 1-O9639AB retaining ring)

1шт.

A4245AA

BRACKET - seat channel (SO)

1шт.

5/8" X 7" CARR., bolt w/N.C. hex. nut (SO)

1шт.

5/8" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER (SO)

2шт.

O3444AB

BOLT - seat channel pivot

1шт.

NUT - 5/8" castellated, light, N.F. thread

1шт.

PIN - 1/8" x 1-1/4" cotter

1шт.

O5945AB

SPRING - starting crank holder (SC)

1шт.

O5948AB

X

SPRING - seat, large

1шт.

O5954AB

HINGE - seat

1шт.

O5956AB

BOLT - seat hinge

1шт.

NUT - 1/2" - 20 light, castle

1шт.

PIN - 3/32" x 7/8" cotter

1шт.

O5957AB

BRACKET - seat rear support. (Use A8402)

1шт.

O6141AB

CUSHION - seat (Use O9609AB)

1шт.

O6349AB

WASHER - retainer seat rebound bumper (S, SC)

1шт.

O6935AB

X

BUMPER - seat rear support

2шт.

SCREW - no. 10 x 3/4" rd. hd. mach., N.C. thread

2шт.

NUT - no. 10 hex., N.C. thread

2шт.

WASHER - no. 10 std. lock

2шт.

O7045AB

CHANNEL - seat (SO)

1шт.

O7638AB

SPRING - seat channel rebound (SO)

1шт.

O7993AB

BOLT - front support bracket (3/8" x 4" long)

1шт.

NUT - 3/8" - 24 ligh castle, N.F. thread

1шт.

PIN - 3/32" x 7/8" cotter

1шт.

O9161AB

CHANNEL - seat (S, SC)

1шт.

O9164AB

BOLT - seat spring (S, SC)

1шт.

PIN - 1/8" x 1" cotter (S, SC)

1шт.

NUT - 5/8" hex. jam, light, N.F. thread (S, SC)

1шт.

O9165AB

X

BUMPER - seat channel rebound (S, SC)

1шт.

O9609AB

CUSHION - seat (Replaces O6141AB) (S, SC)

1шт.

O9639AB

X

SNAP RING - for A4245AA bracket (SO)

1шт.

O4256TF

X

SPRING - seat, small (SO)

1шт.
