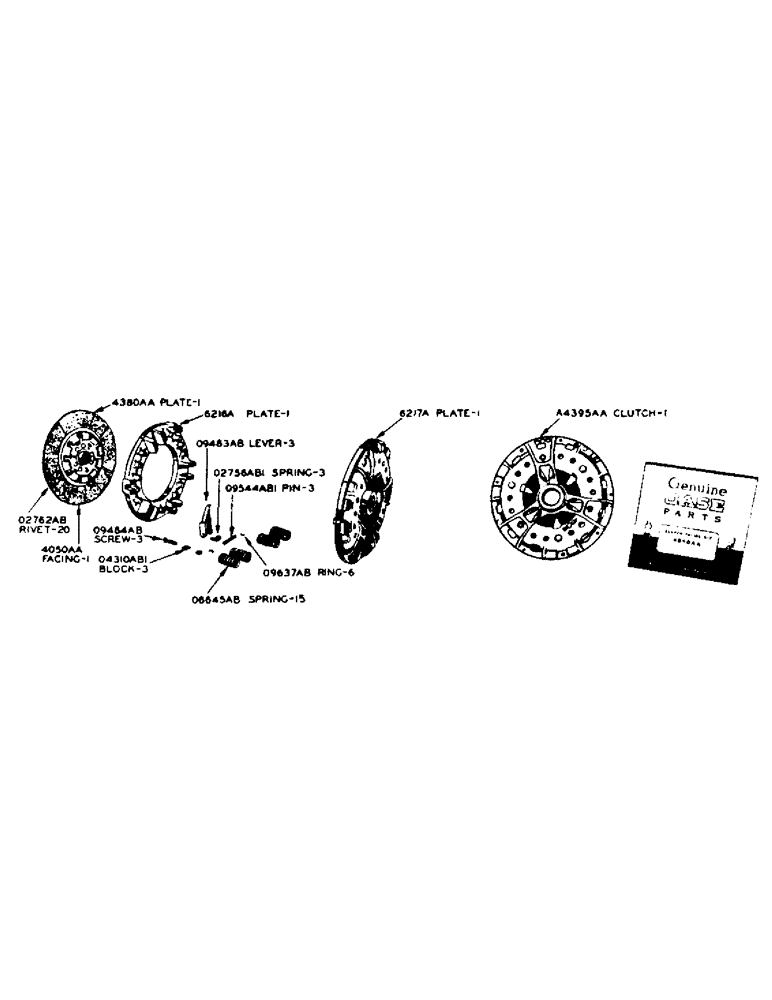

Запчасти Case IH S-SERIES (049) - FOOT CLUTCH, FOR S, SC, SC-4 TRACTORS S/N 8027115 AND AFTER (06) - POWER TRAIN

6216A

PLATE - clutch pressure

1шт.

6217A

PLATE - clutch cover

1шт.

5/16" X 1-1/8" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

9шт.

4050AA

FACINGS - set of clutch, with rivets for 4380AA plate (Consists of 2 clutch facings with 20 - O2762AB rivets)

1шт.

4380AA

PLATE - clutch driving, with facings

1шт.

Note - The 4380AA Plate, Clutch Driving, is an 11", 14 Spline Plate 06/17/96

1шт.

A4395AA

CLUTCH COMPLETE - less driving plate

1шт.

5/16" X 1-1/8" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

9шт.

O2756AB1

SPRING - clutch release lever

3шт.

O2762AB

RIVET - clutch facing (3/16" dia. x 5/16" brass tubular, ctsk. hd., no. 8 special)

20шт.

O4310AB1

X

BLOCK - clutch release lever

3шт.

O6645AB

SPRING - clutch pressure

15шт.

O9342AB

BAR - clutch adjusting

1шт.

O9483AB

LEVER - clutch release

3шт.

O9484AB

X

SCREW - adjusting, clutch release lever

3шт.

7/16" N.F. hex. jam nut, light

3шт.

O9544AB1

PIN - clutch release lever

3шт.

O9637AB

X

"E" RING - retaining, for O9544AB1 release lever pin

6шт.
