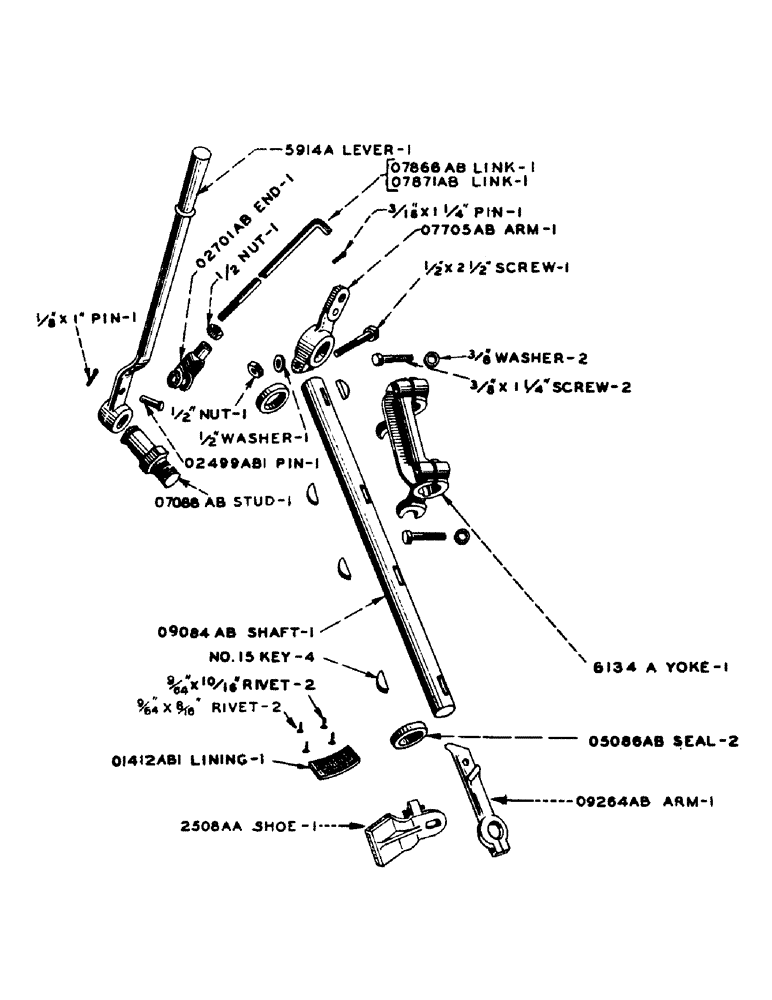

Запчасти Case IH S-SERIES (046) - CLUTCH THROWOUT PARTS, ENGINE HAND CLUTCH THROWOUT PARTS, S, SC, SO (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
5651A
SHOE - belt pulley brake (Use 2508AA)
1шт.
5914A
LEVER - hand, clutch throwout
1шт.
FITTING - 1/8" str. Lincoln no. 5000
1шт.
6134A
YOKE - clutch throwout
1шт.
SCREW - 3/8" x 1-1/4" hex. hd. cap, N.C. thread
2шт.
WASHER - 3/8" std. lock
2шт.
2508AA
SHOE - belt pulley brake, with lining
1шт.
SCREW - 1/2" x 1-1/4" hex. hd. cap, N.C. thread
1шт.
SCREW - 3/8" x 1-1/2" flat point set, N.C. thread
1шт.
NUT - 3/8" hex., jam, N.C. thread
1шт.
WASHER - 1/2" std. lock
1шт.
WASHER - 1/2" plain
1шт.
O1412AB1
X
LINING - belt pulley brake shoe
1шт.
RIVET - 9/64" x 8/16" brass tubular
2шт.
RIVET - 9/64" x 10/16" brass tubular
2шт.
O2499AB1
X
PIN - yoke end, clutch throwout link
1шт.
PIN - 1/8" x 1" cotter
1шт.
O2701AB
X
END - yoke, clutch throwout link
1шт.
O5086AB
X
OIL SEAL - clutch throwout shaft
2шт.
O6152AB
SNAP RING - clutch hand lever stud
1шт.
O7088AB
X
STUD - clutch throwout hand lever
1шт.
WASHER - 3/4" std. lock
1шт.
O7705AB
ARM - clutch throwout
1шт.
SCREW - 1/2" x 2-1/2" hex. hd. cap, N.F. thread
1шт.
NUT - 1/2" hex., light, N.F. thread
1шт.
WASHER - 1/2" std. lock
1шт.
O7866AB
LINK - clutch throwout (SO)
1шт.
NUT - 1/2" hex. jam, light, N.F. thread (SO)
1шт.
PIN - 3/16" x 1-1/4" cotter (SO)
1шт.
O7871AB
LINK - clutch throwout (S, SC)
1шт.
NUT - 1/2" hex. jam, light, N.F. thread (S, SC)
1шт.
PIN - 3/16" x 1-1/4" cotter (S, SC)
1шт.
O9084AB
SHAFT - clutch throwout
1шт.
KEY - no. 15 Woodruff
4шт.
O9264AB
ARM - belt pulley brake
1шт.
SCREW - 3/8" x 2-1/4" hex. hd. cap, N.F. thread
1шт.
NUT - 3/8" hex., light, N.F. thread
1шт.
WASHER - 3/8" std. lock
1шт.
Выбрано товаров: 38
