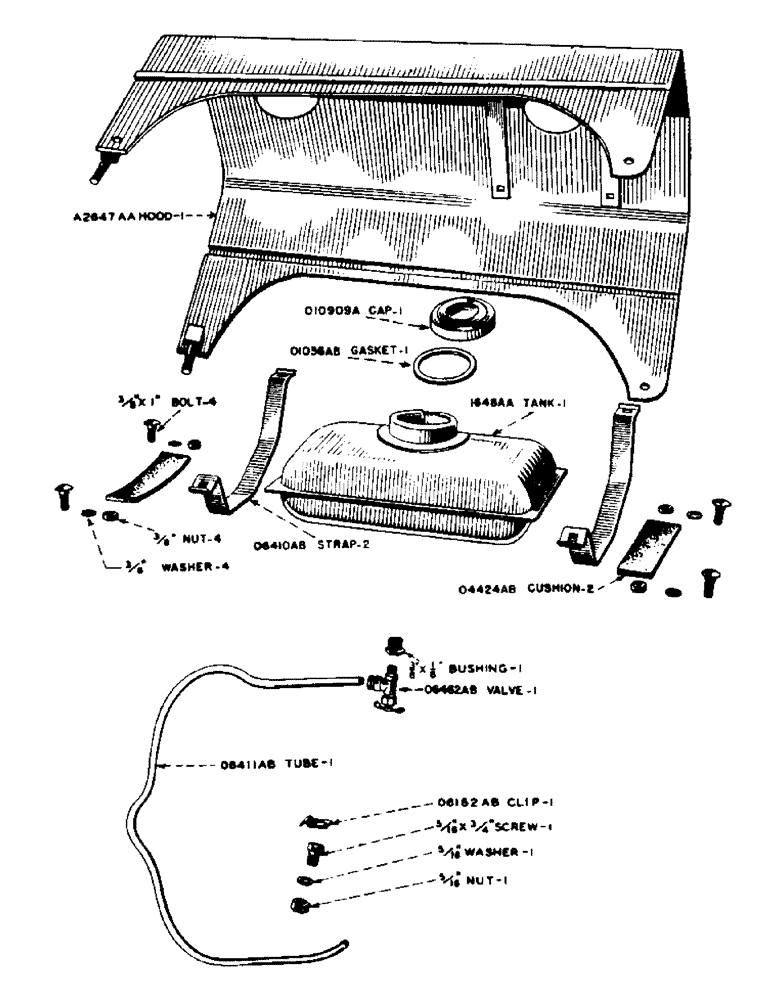

Запчасти Case IH S-SERIES (045) - SMALL GASOLINE TANK AND ENGINE HOOD, FOR LOW COST FUEL, S, SC, SO (03) - FUEL SYSTEM

O1036AB

X

GASKET - fuel tank cap

1шт.

O4424AB

CUSHION - fuel tank anti-squeak

2шт.

O4905AB

X

STRAINER - fuel

1шт.

ELBOW - Dole A7 male, 5/16" tube size x 1/8" pipe thread

2шт.

O6182AB

CLIP - fuel tube

1шт.

SCREW - 5/16" x 3/4" round head machine, N.C. thread

1шт.

NUT - 5/16" hex., light, N.C. thread

1шт.

WASHER - 5/16" std. lock

1шт.

O6410AB

STRAP - fuel tank

2шт.

BOLT - 3/8" x 1" carriage

4шт.

WASHER - 3/8" std. lock

4шт.

O6411AB

TUBE - fuel, Serial Range: tank-strainer

1шт.

O6462AB

VALVE - needle

1шт.

O10909A

X

CAP - fuel tank filler, with lock plate

1шт.

1648AA

TANK - gasoline

1шт.

BUSHING - reducing, 3/8" male thrd. x 1/8" female thrd.

1шт.

A2647AA

HOOD - complete

1шт.
