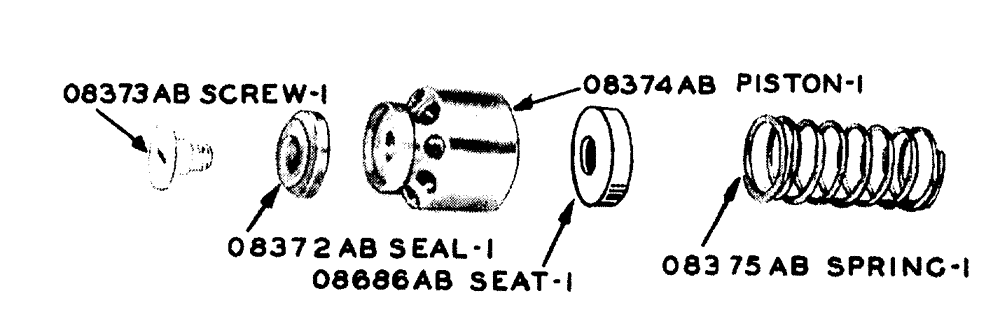

Запчасти Case IH LA-SERIES (095) - 3945AA BREAK-AWAY SELF SEALING COUPLING SOCKET (SEE 4268AA KIT) (08) - HYDRAULICS

08371ab

O8371AB

BODY socket, break-away coupling

1шт.

08372ab

A33964

SEAL

piston, break-away coupling

1шт.

08373ab

O8373AB

SCREW self retaining, piston, socket, break-away coupling

1шт.

This part number is not furnished. Use 4268AA (See Fig. 099)

1шт.

08374ab

O8374AB

PISTON socket, break-away coupling

1шт.

This part number is not furnished. Use 4268AA (See Fig. 099)

1шт.

08375ab

A27351

SPRING

piston, break-away coupling

1шт.

This part number is not furnished. Use 4268AA (See Fig. 099)

1шт.

08377ab

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

body, socket, break-away coupling

1шт.

08378ab

A27353

SLEEVE

SLEEVE retaining, ball, socket, break-away coupling

1шт.

08379ab

A27354

SPRING

sleeve, retaining, ball, socket, break-away coupling

1шт.

08380ab

310959R1

O-RING,-217, 70 Duro, 1.171" ID x .139" Thk

RING snap, rubber, socket, break-away coupling

1шт.

08635ab

211-7

BALL,1/4" Dia

locking, socket, break-away coupling 1/4" Dia

8шт.

08686ab

O8686AB

SEAT spring, piston

1шт.

This part number is not furnished. Use 4268AA (See Fig. 099)

1шт.

3945aa

3945AA

SOCKET coupling, complete (Consists of above items) (Use 4026AA)

1шт.
