(094) - HYDRAULIC SINGLE & DUAL CONTROL UNIT - 3946AA BREAK-AWAY SELF SEALING COUPLING PLUG (SEE 4268AA KIT)

Запчасти Case IH LA-SERIES (094) - HYDRAULIC SINGLE & DUAL CONTROL UNIT - 3946AA BREAK-AWAY SELF SEALING COUPLING PLUG (SEE 4268AA KIT) (08) - HYDRAULICS

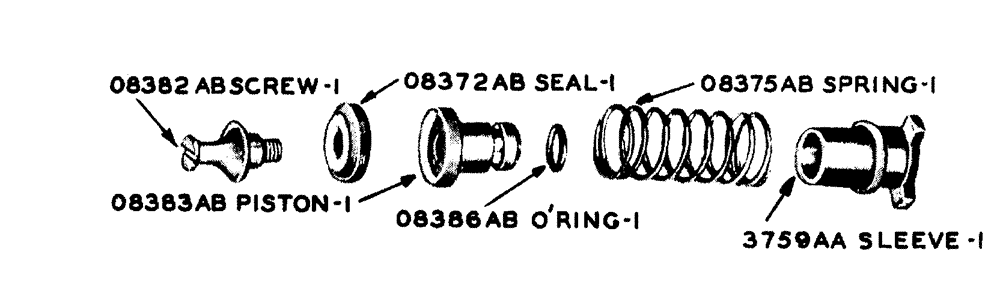

Схема запчастей Case IH LA-SERIES - (094) - HYDRAULIC SINGLE & DUAL CONTROL UNIT - 3946AA BREAK-AWAY SELF SEALING COUPLING PLUG (SEE 4268AA KIT) (08) - HYDRAULICS
08386ab
08382ab
08383ab
08375ab
3759aa
08372ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

08372ab

A33964

SEAL

piston, break-away coupling

1шт.

08375ab

A27351

SPRING

piston, break-away coupling

1шт.

08381ab

A27356

PIPE FITTING

BODY male, plug, break-away coupling

1шт.

08382ab

O8382AB

SCREW long, self retaining, piston,plug, break-away coupling

1шт.

This part number is not furnished. Use 4268AA (See Fig. 099)

1шт.

08383ab

O8383AB

PISTON plug, break-away coupling

1шт.

This part number is not furnished. Use 4268AA (See Fig. 099)

1шт.

08386ab

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Sleeve, piston, plug, break-away coupling

1шт.

3759aa

3759AA

SLEEVE piston, plug, break-away coupling

1шт.

This part number is not furnished. Use 4268AA (See Fig. 099)

1шт.

3946aa

3946AA

PLUG coupling, complete (Consists of above items) (Use 4025AA)

1шт.
