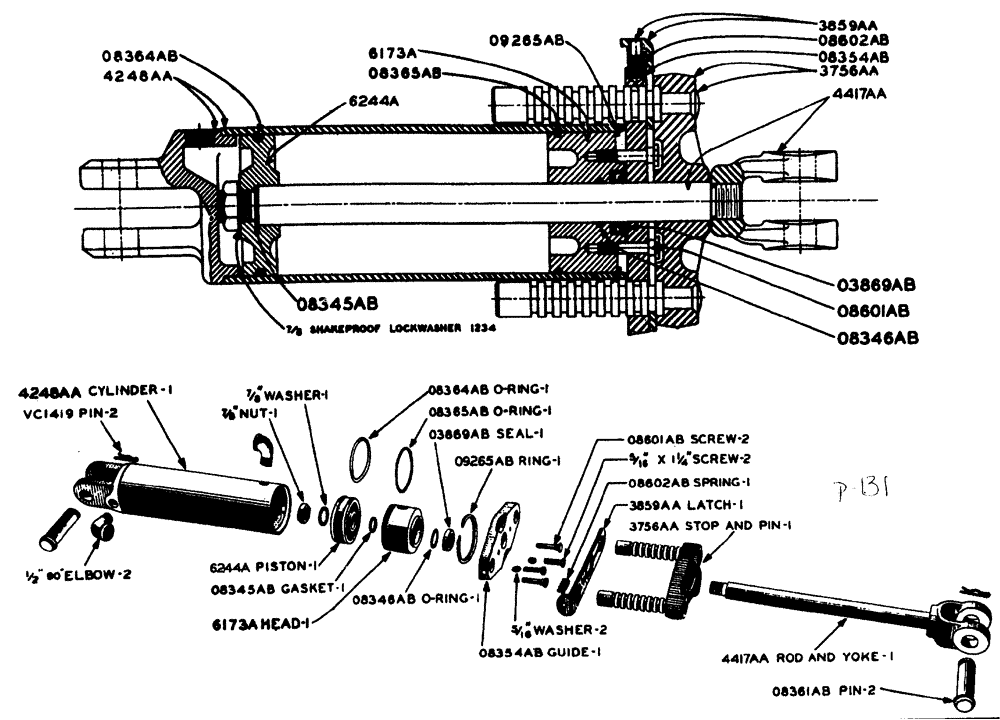

Запчасти Case IH LA-SERIES (093) - HYDRAULIC SINGLE AND DUAL CONTROL UNIT - B3847AA PORTABLE CYLINDER (4" X 8") (08) - HYDRAULICS

a8968

A8968

PISTON

(See 6244A)

1шт.

6046a

6046A

CAP cylinder (Use 4248AA)

1шт.

6173a

6173A

inner, cylinder

1шт.

6244a

6244A

X

PISTON (Can use A8968)

1шт.

03869ab

A26758

OIL SEAL

SEAL oil, rod, piston

1шт.

08345ab

A30894

COPPER WASHER

GASKET piston

1шт.

08346ab

356005R1

O-RING,1.109" ID x 0.139" Width

RING "O" rod, piston

1шт.

08354ab

O8354AB

GUIDE pin, stop, limit

1шт.

SCREW cap, hex head, N.C. thread, 5/16" x 1-1/4", with lock washer

2шт.

08361ab

A27347

PIN

yoke, cylinder

2шт.

08364ab

2701035-15

O-RING

RING "O" piston

1шт.

08365ab

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

RING "O" cylinder head

1шт.

08601ab

A31157

SCREW,5/16" - 18 x 1 3/4"

latch, stop, limit

2шт.

WASHER lock, shakeproof, No. 1218-4, 5/16"

2шт.

08602ab

A27421

SPRING

latch, stop, limit

1шт.

09265ab

A30896

RING

snap, collar, cylinder

1шт.

vc1419

A29054

HAIR PIN COTTER

SPRING retainer, pin, yoke, cylinder

2шт.

3756aa

3756AA

STOP limit, with pins for cylinder

1шт.

b3847aa

B3847AA

CYLINDER hydraulic, portable, complete, 4" x 8"

1шт.

Consists of part numbers: A8968, 6173A, 6244A, 03869AB,08345AB, 08346AB, 08354AB and the 5/16" x 1-1/4" hex head cap screw w/lock washer shown below P/N 08354AB in this parts list , 08364AB, 08365AB, 08601AB and the 5/16" shakeproof lock washer No. 1218-4 shown below P/N 08601AB in this parts list, 08602AB, 09265AB, 3756AA, 3859AA, 4248AA and the 1/2" - 90° street elbow shown below P/N 4248AA in this parts list, and 4417AA and the 7/8" light hex nut and the 7/8" shakeproof lock washer No. 1234 type 12 sh

1шт.

3859aa

A31156

LATCH

stop, limit, cylinder

1шт.

4248aa

4248AA

CYLINDER and CAP

1шт.

ELBOW street, 90°, 1/2"

2шт.

4417aa

4417AA

ROD and YOKE piston

1шт.

NUT light, hex, N.F. thread, 7/8"

1шт.

WASHER lock, shakeproof, No. 1234, type 12, 7/8"

1шт.
