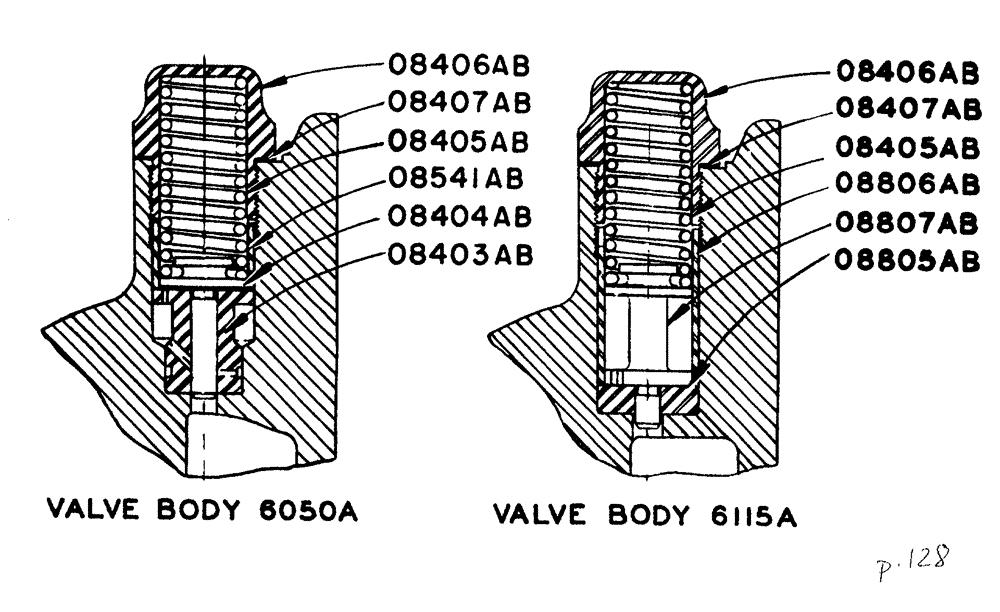

Запчасти Case IH LA-SERIES (090) - HYDRAULIC RELIEF VALVE (08) - HYDRAULICS

08346ab

356005R1

O-RING,1.109" ID x 0.139" Width

nut, valve, relief (Used with B6115, 6506A and 6071A bodies)

1шт.

08403ab

O8403AB

SLEEVE valve, relief (Used with 6050A body)

1шт.

08404ab

O8404AB

PLUNGER

valve, relief (Used with 6050A)

1шт.

08405ab

O8405AB

SPRING

valve, relief

1шт.

08406ab

O8406AB

NUT valve, relief

1шт.

08407ab

O8407AB

GASKET nut, valve, relief (See O8346AB)

1шт.

08541ab

O8541AB

RETAINER sleeve, valve, relief (Used with 6050A body)

1шт.

08661ab

A27437

SHIM,.0329" Thk

Relief valve .0329" Thk

5шт.

08805ab

O8805AB

SEAT valve, relief (Use 4443AA) (See O8403AB)

1шт.

For repairs, see Service Parts Kit P/N 4443AA, shown below.

1шт.

08806ab

O8806AB

SLEEVE seat, valve, relief (Use 4443AA) (See O8541AB)

1шт.

For repairs, see Service Parts Kit P/N 4443AA, shown below.

1шт.

08807ab

O8807AB

PLUNGER valve, relief (Use 4443AA) (See O8404AB)

1шт.

For repairs, see Service Parts Kit P/N 4443AA, shown below.

1шт.

08897ab

100-21118

SNAP RING,1.188", Int, #118

Ring, Snap, , seat, valve, relief (Use 4443AA) (See O8541AB) 1.188", Int, #118

1шт.

For repairs, see Service Parts Kit P/N 4443AA, shown below.

1шт.

08898ab1

O8898AB1

PLUNGER valve, relief (Use 4443AA) (See 08404AB)

1шт.

For repairs, see Service Parts Kit P/N 4443AA, shown below.

1шт.

09572ab

O9572AB

SLEEVE

valve, relief (Used with B6115A, 6506A and B6071A bodies)

1шт.

09573ab

O9573AB

RETAINER

sleeve, valve, relief (Used with B6115A, 6506A and B6071A bodies)

1шт.

4443aa

4443AA

KIT

service parts

1шт.

When one of the following part numbers: 08805AB, 08806AB, 08807AB, 08897AB and 08898AB1, is wanted for repairs, furnish 4443AA service parts kit, which consists of the following 5 items: 1 - 08404AB plunger, 1 - 09572AB sleeve, 1 - 09573AB sleeve retainer, 5 - 08661AB shim and 1 - 08346AB "O" ring, which brings relief valve up to date with relief valve as used on late tractors.

1шт.
