Запчасти Case IH LA-SERIES (089) - HYDRAULIC SINGLE AND DUAL CONTROL UNIT, CYLINDER SPEED REGULATOR (08) - HYDRAULICS

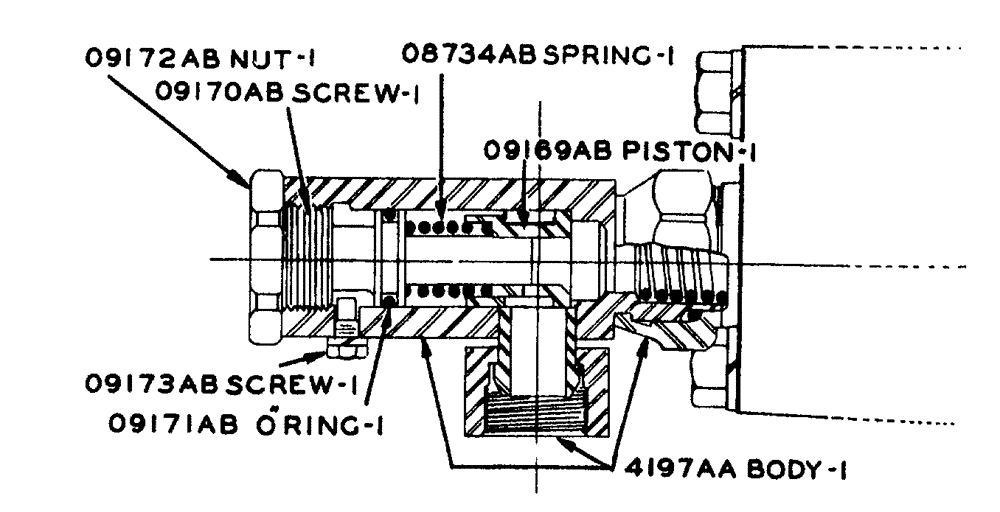

Схема запчастей Case IH LA-SERIES - (089) - HYDRAULIC SINGLE AND DUAL CONTROL UNIT, CYLINDER SPEED REGULATOR (08) - HYDRAULICS
09172ab
09173ab
09170ab
09169ab
08734ab
09171ab
4197aa

Артикул

Название

Примечание

Количество

08734ab

A27452

SPRING

regulator, speed, cylinder

1шт.

09169ab

O9169AB

X

PISTON regulator, speed, cylinder

1шт.

09170ab

A31093

ADJUSTMENT SCREW,7/8" - 14 x 2 11/32", Gr 2

SCREW regulator, speed, cylinder

1шт.

09171ab

O9171AB

X

O-RING screw, regulator, speed, cylinder

1шт.

09172ab

A31094

JAM NUT

screw, regulator, speed, cylinder

1шт.

09173ab

A31095

SCREW,Hex, #8 - 32 x 15/32"

stop, regulator, speed, cylinder

1шт.

WASHER lock, light, standard, No. 8

1шт.

4197aa

A31089

BODY

and SWIVEL ASSEMBLY regulator, speed, cylinder

1шт.

4198aa

A30885

VALVE

REGULATOR ASSEMBLY speed, cylinder

1шт.

Выбрано товаров: 9
