Запчасти Case IH LA-SERIES (088) - HYDRAULIC PUMP WITH HEAVY DUTY BEARINGS, 20 GALLON PER MINUTE CAPACITY (08) - HYDRAULICS

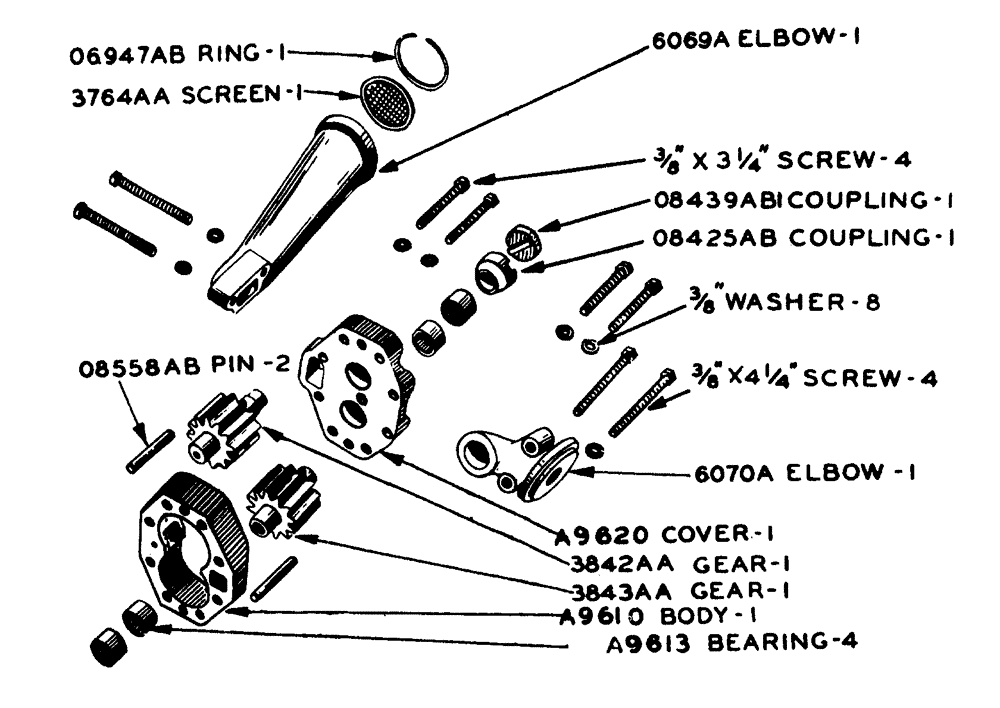

Схема запчастей Case IH LA-SERIES - (088) - HYDRAULIC PUMP WITH HEAVY DUTY BEARINGS, 20 GALLON PER MINUTE CAPACITY (08) - HYDRAULICS
a9620
3764aa
3843aa
08425ab
a9613
3842aa
06947ab
a9610
6070a
6069a
08439ab1
08558ab

Артикул

Название

Примечание

Количество

a9610

A9610

BODY

pump, hydraulic

1шт.

a9613

A9613

NEEDLE BEARING,0.875" ID x 1.375" OD x 0.75"

BEARING shaft, pump, hydraulic, BCA SV7173

4шт.

a9620

A9620

COVER

body, pump, hydraulic

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 3-1/4", with lock washer

4шт.

6069a

6069A

ELBOW inlet, pump, hydraulic

1шт.

SCREW cap, hex head, N.C. thread, 3/4" x 4-1/4", with lock washer

2шт.

6070a

6070A

ELBOW filter, pump, hydraulic

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 4-1/4", with lock washer

2шт.

06947ab

A30091

RING, SNAP

RING snap, reatiner, screen, pump, hydraulic

1шт.

08425ab

A30889

COUPLING

shaft, drive, pump, hydraulic

1шт.

08439ab1

A27376

COUPLING

drive, pump, hydraulic

1шт.

08558ab

O8558AB

PIN dowel, body, pump, hydraulic

2шт.

08901ab1

O8901AB1

PLATE deflector, oil, outlet, pump, hydraulic

1шт.

3764aa

A30890

SCREEN

ASSEMBLY intake, pump, hydraulic

1шт.

3842aa

3842AA

DRIVE and SHAFT pump, hydraulic

1шт.

3843aa

3843AA

IDLER and SHAFT pump, hydraulic

1шт.

Выбрано товаров: 16
