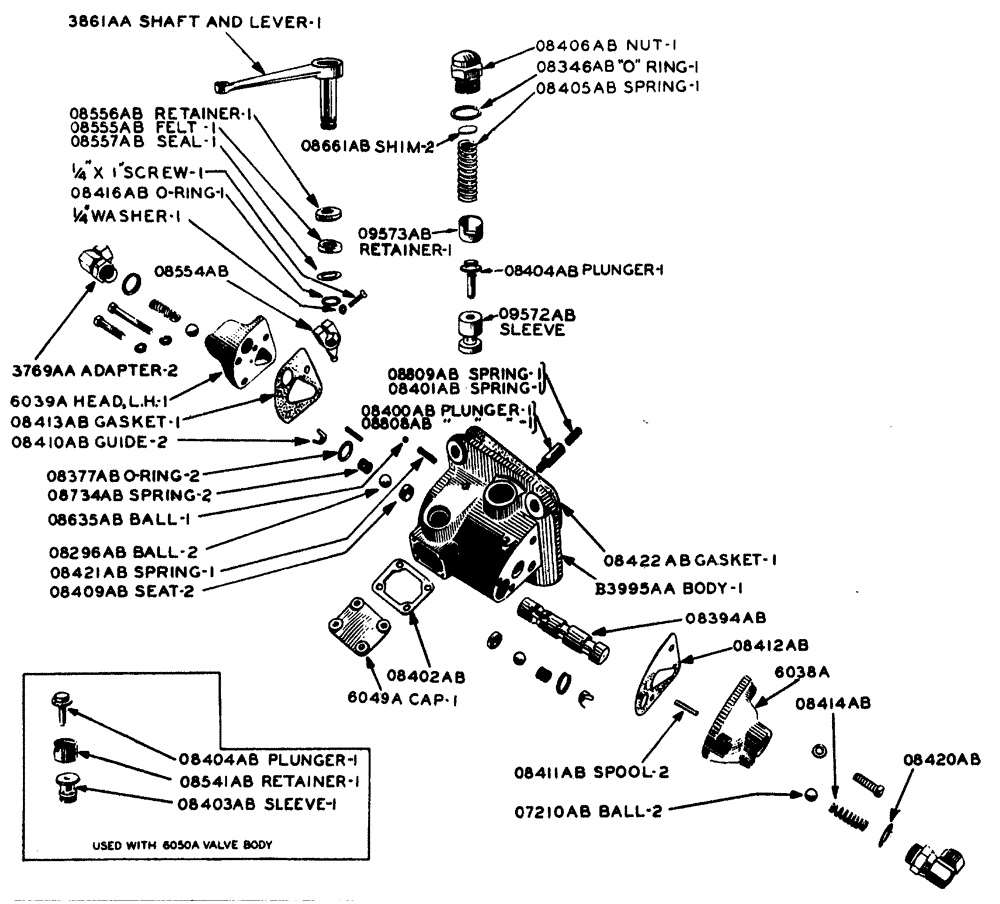

Запчасти Case IH LA-SERIES (084) - HYDRAULIC SINGLE & DUAL CONTROL UNIT - SINGLE VALVE ASSEMBLY (08) - HYDRAULICS

a7301

A7301

X

SINGLE VALVE and PUMP ASSEMBLY (15GPM)

1шт.

a7353

A7353

CAP

body, valve, hydraulic, for dual valve (Use with all but 6506A)

1шт.

SCREW machine, round head, N.C. thread, 1/4" x 3/4", with lock washer, for dual valve

3шт.

SCREW machine, flat head, N.C. thread, 1/4" x 3/4", for dual valve

1шт.

a7478

A7478

GASKET

cap, float valve opening, for dual valve (See O8402AB)

1шт.

a8732

A8732

CAP

opening, float, hydraulic, for dual valve

1шт.

a10912

A10912

X

DUAL VALVE and PUMP ASSEMBLY (15GPM)

1шт.

6038a

6038A

HEAD valve, R. H., hydraulic, for single valve

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 1-1/4", with lock washer, for single valve

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 1-3/4", with lock washer, for single valve

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 2-3/4", with lock washer, for single valve

1шт.

6039a

6039A

valve, L.H., hydraulic, for single valve

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 1-3/4", with lock washer, for single valve

2шт.

SCREW cap, hex head, N.C. thread, 3/8" x 2-3/4", with lock washer, for single valve

1шт.

6049a

6049A

CAP body, valve, hydraulic, for single valve

1шт.

SCREW machine, round head, N.C. thread, 1/4" x 3/4", with lock washer, for single valve

4шт.

6050a

6050A

BODY valve, single, hydraulic (Use B3995AA)

1шт.

a6071a

A6071A

COVER

BODY valve, dual, hydraulic (Use C3905AA)

1шт.

b6071a

B6071A

BODY valve, dual, hydraulic (Use C3905AA)

1шт.

6072a

A57394

HEAD

valve, R.H., hydraulic, for dual valve

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 1-1/4", with lock washer, for dual valve

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 1-3/4", with lock washer, for dual valve

3шт.

6073a

6073A

HEAD valve, L.H., hydraullic, for dual valve

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 2-3/4", with lock washer, for dual valve

4шт.

6115a

6115A

BODY valve, single, hydraulic (Use B3995AA)

1шт.

a6115a

A6115A

BODY valve, single, hydraulic (Use B3995AA)

1шт.

b6115a

B6115A

BODY valve, single, hydraulic (Use B3995AA)

1шт.

6506a

6506A

WHEEL (STEERING)

BODY valve, dual, hydraulic (Use C3905AA body)

1шт.

07210ab

O7210AB

X

BALL for hydraulic valve return, 1/2" diameter, for single valve

2шт.

07210ab

O7210AB

X

BALL for hydraulic valve return, 1/2" diameter, for dual valve

4шт.

08296ab

O8296AB

X

BALL outlet, for single valve

2шт.

08296ab

O8296AB

X

BALL outlet, for dual valve

4шт.

08377ab

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

outlet ball check, for single valve

2шт.

08377ab

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

outlet ball check, for dual valve

4шт.

08394ab

A30874

SPOOL

valve, hydraulic, for single valve

1шт.

08394ab

A30874

SPOOL

valve, hydraulic, for dual valve

2шт.

08396ab

A30887

ARM

small, shifter, spool, for dual valve (See O8554AB)

1шт.

SCREW machine, fillister head, N.F. thread, 1/4" x 3/4", with lock washer, for dual valve

1шт.

08398ab

A30853

WASHER

felt, upper, shaft, spool shifter, for dual valve (See O8555AB)

1шт.

08399ab

A30875

RETAINER

felt washer, upper, shaft, spool shifter, for dual valve (See O8556AB)

1шт.

08400ab

O8400AB

PLUNGER spool, for single valve (Used with 6050A body) (See O8808AB)

1шт.

08401ab

O8401AB

SPRING plunger, spool, for single valve (Used with 6050A body) (See O8809AB)

1шт.

08402ab

O8402AB

GASKET

cap, body, for single valve (See O8563AB)

1шт.

08409ab

O8409AB

X

SEAT outlet ball check, for single valve

2шт.

08409ab

O8409AB

X

SEAT outlet ball check, for dual valve

4шт.

08410ab

A27364

GUIDE

spring, check, outlet ball, for single valve

2шт.

08410ab

A27364

GUIDE

spring, check, outlet ball, for dual valve

4шт.

08411ab

O8411AB

X

SPOOL auxiliary, for single valve

2шт.

08411ab

O8411AB

X

SPOOL auxiliary, for dual valve

4шт.

08412ab

O8412AB

GASKET

valve head, R.H., for single valve (See O8564AB)

1шт.

08413ab

O8413AB

GASKET

valve head, L.H., for single valve (See O8565AB)

1шт.

08414ab

A30877

SPRING

return ball check, for single valve

2шт.

08414ab

A30877

SPRING

return ball check, for dual valve

4шт.

08416ab

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Lower, shaft, spool shifter, for single and dual valve -116, 70 Duro, .737" ID x .103" Thk

1шт.

08420ab

A27366

GASKET

adapter, angle, swivel, for single valve

2шт.

08420ab

A27366

GASKET

adapter, angle, swivel, for dual valve

4шт.

08421ab

O8421AB

SPRING

ball, valve, relief, for single valve

1шт.

08421ab

O8421AB

SPRING

ball, valve, relief, for dual valve

2шт.

08422ab1

1349382C1

GASKET

body, valve, hydraulic, for single and dual valve

1шт.

08554ab

A30878

ARM

large, shifter, spool, for single and dual valve (See O8396AB)

1шт.

SCREW machine, fillister head, N.F. thread, 1/4" x 1", with lock washer, for single and dual valve

1шт.

08555ab

A30879

WASHER

felt, lower, shaft, spool shifter, for single and dual valve (See O8398AB)

1шт.

08556ab

A30880

RETAINER

washer, felt, lower, spool shifter shaft, for single and dual valve (See O8399AB)

1шт.

08557ab

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER seal, shaft, spool shifter, for O8555AB felt, for single and dual valve

1шт.

08563ab

O8563AB

GASKET cap, body, for dual valve (See O8402AB)

1шт.

08564ab

A30888

GASKET

valve head, R.H., for dual valve (See O8412AB)

1шт.

08565ab

A30855

GASKET

valve head, L.H., for dual valve (See O8413AB)

1шт.

08568ab

A27409

WASHER

seal, shifter, spool, for dual valve (For O8398AB felt)

1шт.

08569ab

O8569AB

X

O-RING upper, shaft, spool shifter, for dual valve

1шт.

08635ab

211-7

BALL,1/4" Dia

valve, relief, for single valve 1/4" Dia

1шт.

08635ab

211-7

BALL,1/4" Dia

valve, relief, for dual valve 1/4" Dia

2шт.

08734ab

A27452

SPRING

outlet ball check, for single valve

2шт.

08734ab

A27452

SPRING

outlet ball check, for dual valve

4шт.

08808ab

O8808AB

PLUNGER spool, for single valve (Used with 6115A, A6115A, B6115A, 6071A, A6071A and B6071A body) (See O8400AB)

1шт.

08808ab

O8808AB

PLUNGER spool, for dual valve (Used with 6115A, A6115A, B6115A, 6071A, A6071A and B6071A body) (See O8400AB)

2шт.

08809ab

A30883

SPRING

plunger, spool, for single valve (Used with 6115A, A6115A, B6115A, 6071A, A6071A and B6071A body) (See O8401AB)

1шт.

08809ab

A30883

SPRING

plunger, spool, for dual valve (Used with 6115A, A6115A, B6115A, 6071A, A6071A and B6071A body) (See O8401AB)

2шт.

3769aa

3769AA

X

ADAPTER angle, swivel, for single valve

2шт.

3769aa

3769AA

X

ADAPTER angle, swivel, for dual valve

4шт.

3837aa

A23357

SHAFT

LEVER and SHAFT lower, shifter, spool, for dual valve

1шт.

3846aa

3846AA

SINGLE VALVE and PUMP ASSEMBLY (Can use A7301)

1шт.

3848aa

A23387

LEVER

and SHAFT upper, shifter, spool, for dual valve

1шт.

3861aa

3861AA

and SHAFT shifter, spool, with plug, for single valve

1шт.

c3905aa

C3905AA

BODY valve, dual, hydraulic (Used regular on late tractors and as a replacement for 6506A, A6071A and B6071A) (Consists of: 1 each of: B6071A, O8346AB, O8404AB, O8405AB, O8406AB, O9572AB, O9573AB and 4 - O8409AB and 5 - 1/8" Allen head pipe plugs)

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/2", for dual valve

4шт.

WASHER lock, standard, 1/2", for dual valve

4шт.

b3995aa

B3995AA

BODY valve, single, hydraulic (Used regular on late tractors and as a replacement for 6050A, 6115A, A6115A and B6115A)

1шт.

Consists of: 1 - B6115A, 1 - 08346AB, 1 - 08404AB, 1 - 08405AB, 1 - 08406AB, 2 - 08409AB, 1 - 09572AB, 1 - 09573AB, 1 - 08808AB spool plunger, 1 - 08809AB spring, and 3 - 1/8" Allen head pipe plugs

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/2", for single valve

4шт.

WASHER lock, standard, 1/2", for single valve

4шт.
